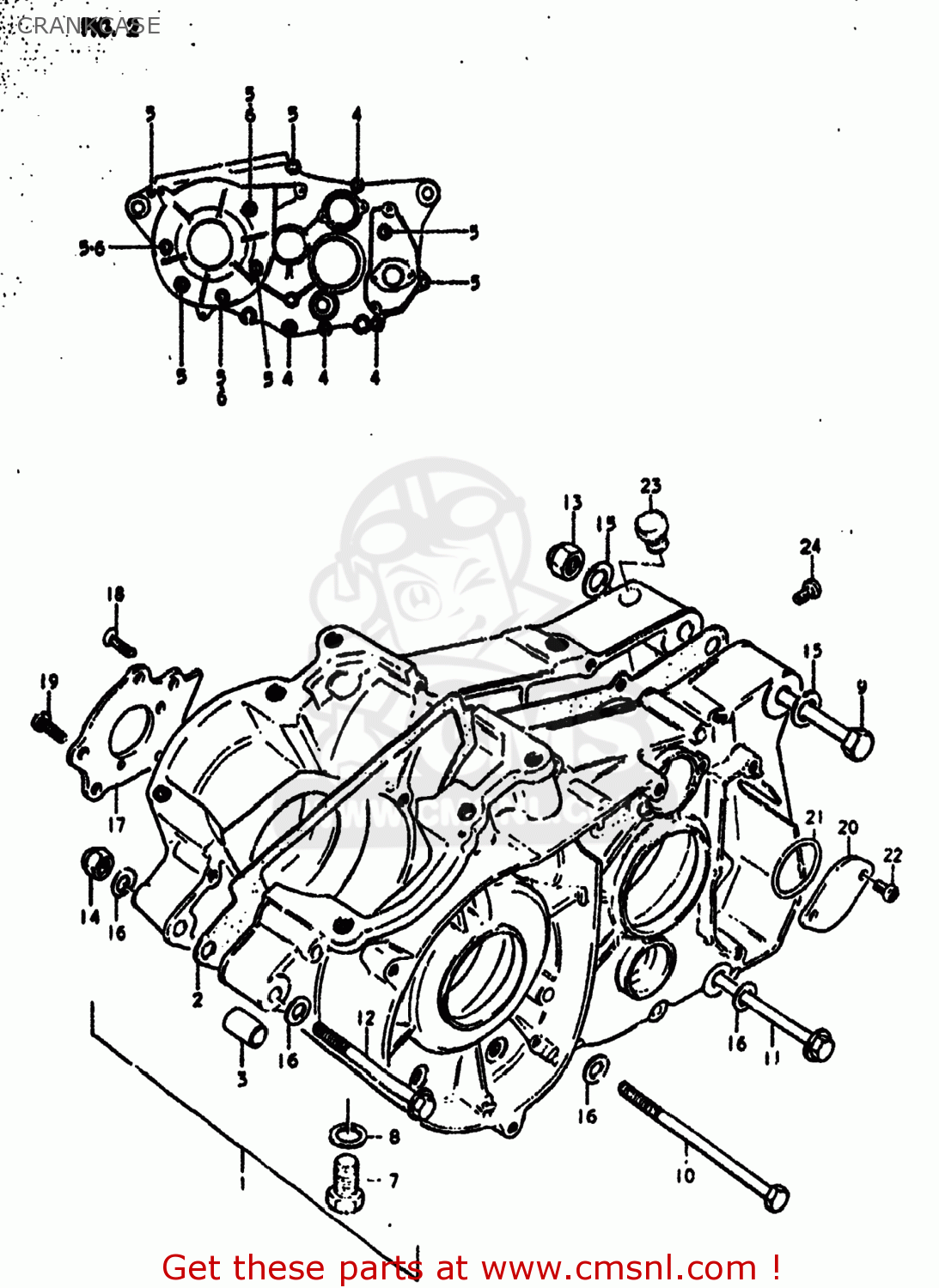

CRANKCASE

ref

part #

description

quantity

1-1

1130029850
ref: 1-1
11300-29852

CRANKCASE SET

€ 513.50

1-2

1130029851
ref: 1-2
11300-29852

CRANKCASE SET

€ 513.50

2

1148129300
ref: 2
11481-29310

GASKET,CRANKCASE (MCA)

€ 19.00

3

0920613001
ref: 3
04211-13189

PIN

€ 2.50

4

0211206658
ref: 4
02112-06657

SCREW 6X65

€ 2.00

5

0211206458
ref: 5
02112-06457

SCREW (6X45)

€ 2.00

6

0832211068
ref: 6
08322-0106B

WASHER 6MM

€ 2.00

7

0924714007
ref: 7
09247-14025

PLUG

€ 3.50

8

0916814004
ref: 8

GASKET(14X19.2X2) (NAS)

€ 2.50

9

0910010051
ref: 9
09100-10274

BOLT

€ 6.50

10

0910008142
ref: 10

BOLT(8X145)

€ 4.00

11-1

0910008078
ref: 11-1

BOLT 8X120

€ 4.50

11-2

0910308026
ref: 11-2
09103-08109

BOLT

€ 3.50

12-1

0910008023
ref: 12-1

BOLT 8X100

€ 2.00

12-2

0910308009
ref: 12-2
09103-08070

BOLT

€ 5.00

13

0915910011
ref: 13

NUT

€ 3.00

14

0915908020
ref: 14

NUT

€ 2.50

15

0832211108
ref: 15
08322-01107

WASHER

€ 2.50

16

0832211088
ref: 16
08322-01087

WASHER

€ 2.00

17

1252128002
ref: 17

PLATE,OIL RESERVOIR

€ 4.00

18

0212206128
ref: 18
02122-06127

SCREW

€ 3.00

19

0211206168
ref: 19
02112-06167

SCREW

€ 2.50

20

1145146000
ref: 20

CAP,GEAR SHIFT CAM PIVOT

€ 2.50

21

0928026003
ref: 21
09280-26005

O-RING (D:2.4 ID:26.2)

€ 2.50

22

0211205088
ref: 22
02112-05087

SCREW

€ 2.00

23

0925014002
ref: 23

Plug

€ 4.50

24

0211206068
ref: 24
02112-06067

SCREW,6X6

€ 2.00

all assemblies
