PROP STAND - FOOTREST
DS185 1978 (C) USA (E03)

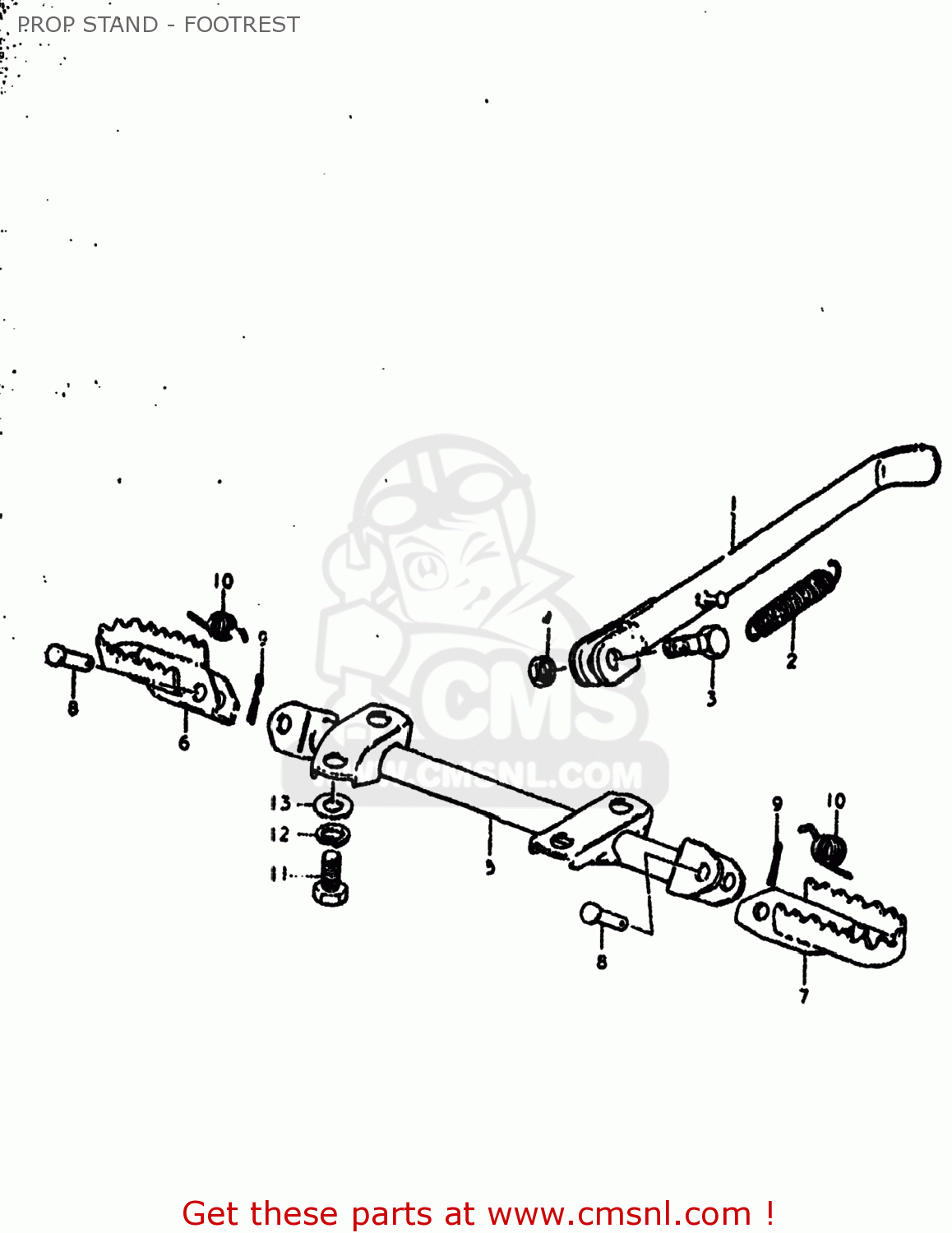

Prop stand - footrest diagram DS185 1978 (C) USA (E03)
PROP STAND - FOOTREST DS185 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231030500
ref: 1-1
42310-05280-019
STAND,SIDE
€ 94.50
1-2
4231048500
ref: 1-2
STAND,PROP
€ 137.50
2-1
0944314005
ref: 2-1
09443-14017
SPRING
€ 6.50
2-2
0944314017
ref: 2-2
SPRING
€ 6.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022108
ref: 4
08310-00107
NUT
€ 2.50
5-1
4351029302
ref: 5-1
43510-29303
BAR,FRONT FOOTREST
€ 24.50
5-2
4351029303
ref: 5-2
BAR,FR FOOTREST
€ 24.50
6
4355029300
ref: 6
FOOTREST,FR,R
€ 11.50
7
4356029300
ref: 7
FOOTREST,FR,L
€ 11.50
8
0920010008
ref: 8
PIN
€ 3.00
9
0411120208
ref: 9
04111-2020A
PIN 20X20
€ 1.50
10
0944815004
ref: 10
SPRING
€ 2.50
11
0110708208
ref: 11
01500-08207
BOLT
€ 3.00
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
0832211088
ref: 13
08322-01087
WASHER
€ 2.00
