MUFFLER (DS185C
DS185 1978 (C) USA (E03)

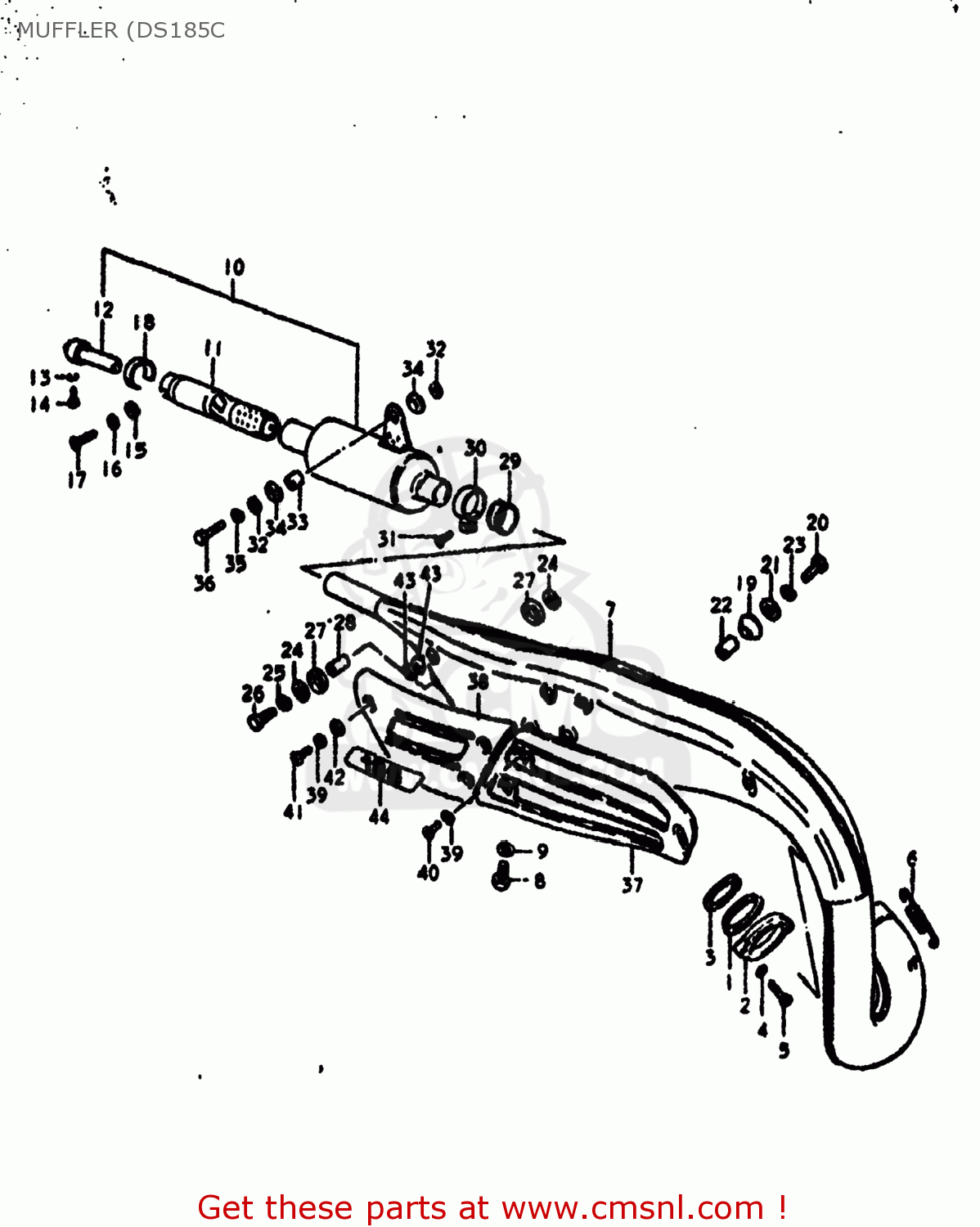

Muffler (ds185c diagram DS185 1978 (C) USA (E03)
MUFFLER (DS185C DS185 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418128080
ref: 1
GASKET,EXHAUST PIPE (NAS)
€ 10.50
2
1418228000
ref: 2
CLAMP,EXHAUST PIPE
€ 11.50
3
1418428010
ref: 3
14184-28011
CUSHION,EXHAUST PIPE
€ 4.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
0110706258
ref: 5
01500-06257
BOLT
€ 2.00
6
0944311002
ref: 6
SPRING
€ 4.50
7-1
1431029671
ref: 7-1
14310-29320-H01
BODY,MUFFLER
€ 239.50
7-2
1431029320
ref: 7-2
14310-29320-H01
BODY,MUFFLER
€ 239.50
8
0910010004
ref: 8
BOLT 10X9
€ 1.00
9
0916810002
ref: 9
GASKET(10X14X3.6) (NAS)
€ 2.00
10
1430329600
ref: 10
14303-29600-H01
MUFFLER ASSEMBLY
€ 0.00
11
1481038601
ref: 11
ARRESTER,SPARK
€ 62.00
12
1485038601
ref: 12
TUBE,MUFFLER CLEAN OUT
€ 32.50
13
0832121058
ref: 13
08321-0105A
LOCK WASHER
€ 2.00
14
0211205088
ref: 14
02112-05087
SCREW
€ 2.00
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
0912806013
ref: 17
SCREW(6X8)
€ 1.50
18
1484338600
ref: 18
BAND,SPARK ARRESTER
€ 3.50
19
1477230500
ref: 19
DAMPER,MUFFLER,FR
€ 3.00
20
0110708358
ref: 20
01500-0835B
BOLT
€ 3.50
21
0916008005
ref: 21
09160-08134
WASHER
€ 2.50
22
0918008048
ref: 22
09180-08302
SPACER (8X12X15)
€ 3.50
23
0832121088
ref: 23
08321-01087
LOCK WASHER
€ 2.00
24
0916008010
ref: 24
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
25
0832121088
ref: 25
08321-01087
LOCK WASHER
€ 2.00
26
0110708258
ref: 26
01500-08257
BOLT
€ 2.50
27
0932014006
ref: 27
CUSHION
€ 3.50
28
0918008075
ref: 28
09180-08200
SPACER (8.6X13.8X9.8)
€ 3.00
29
1477138000
ref: 29
CONNECTOR,MUFFLER
€ 25.00
30
0940237601
ref: 30
CLAMP
€ 5.50
31
0211206208
ref: 31
02112-06207
SCREW
€ 2.00
32
0916008005
ref: 32
09160-08134
WASHER
€ 2.50
33
0918008050
ref: 33
09180-08199
SPACER (8.6X13.8X9)
€ 2.50
34
0932014006
ref: 34
CUSHION
€ 3.50
35
0832121088
ref: 35
08321-01087
LOCK WASHER
€ 2.00
36
0110706258
ref: 36
01500-06257
BOLT
€ 2.00
37
1478129300
ref: 37
COVER,MUFFLER,FRONT
€ 20.50
38
1478229300291
ref: 38
COVER,MUFFLER
€ 9.00
39
0832121068
ref: 39
08321-01067
LOCK WASHER
€ 2.50
40
0211206088
ref: 40
02112-06087
SCREW
€ 2.00
41
0211206128
ref: 41
02112-06127
SCREW 6X12
€ 2.00
42
0832221068
ref: 42
08322-01067
WASHER
€ 2.00
43
0916806005
ref: 43
09168-06105
GASKET 6.2X12X1.5 (MCA)
€ 2.00
44
1479929300
ref: 44
EMBLEM,MUFFLER COVER
€ 7.50
