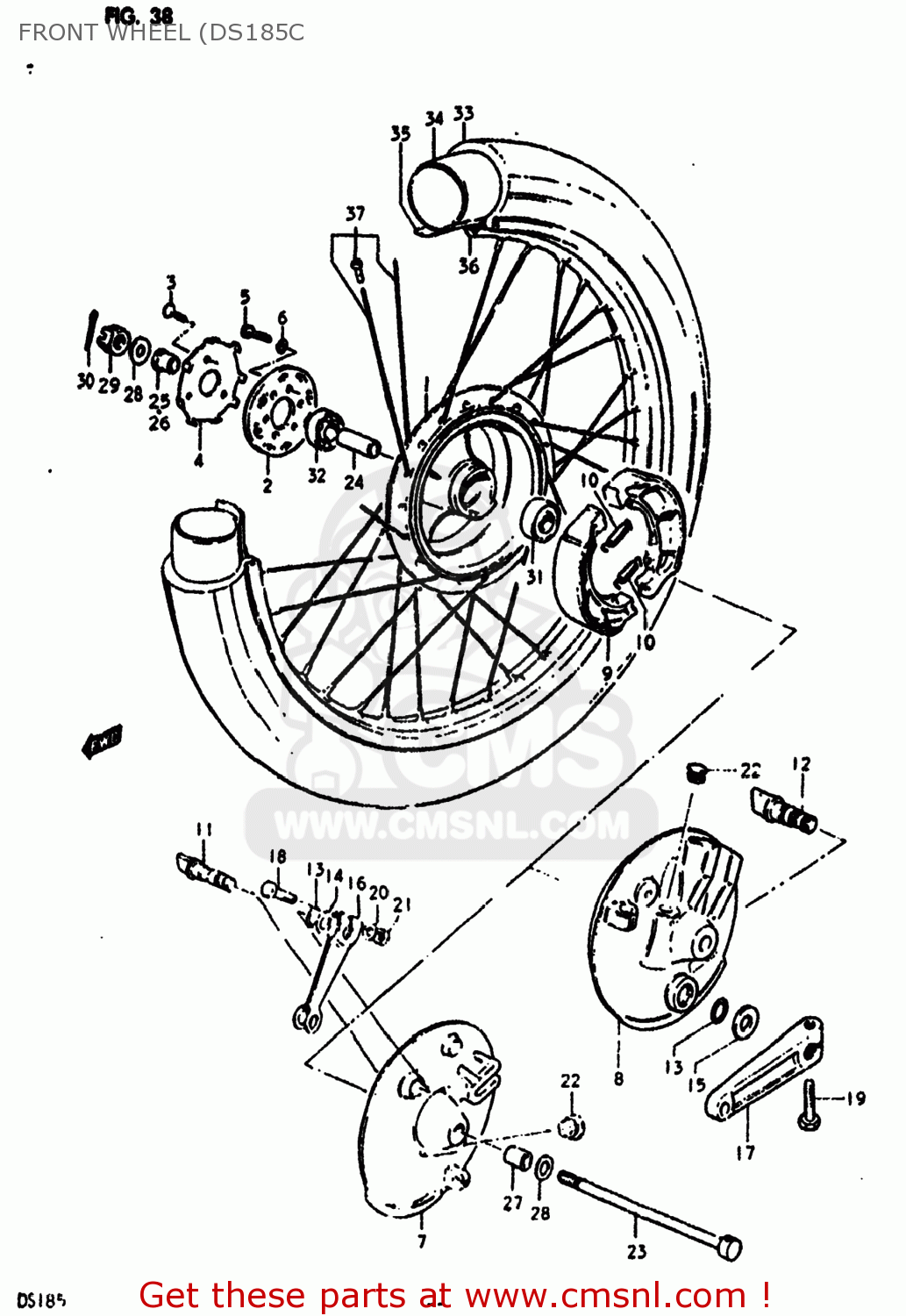

FRONT WHEEL (DS185C
DS185 1978 (C) USA (E03)
Front wheel (ds185c diagram DS185 1978 (C) USA (E03)
FRONT WHEEL (DS185C DS185 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411029300
ref: 1
HUB,FR WHEEL
€ 156.50
2
5411230500
ref: 2
FLANGE,FR HUB,R
€ 17.00
3
0212206168
ref: 3
02122-06167
SCREW
€ 2.00
4
5415130500
ref: 4
RETAINER,FR HUB BEARING,R
€ 7.00
5
0110706168
ref: 5
01500-06167
BOLT, UPPER
€ 3.00
6
0832121068
ref: 6
08321-01067
LOCK WASHER
€ 2.50
7
5421029300
ref: 7
PANEL,FRONT HUB
€ 0.00
8
5421041502
ref: 8
PANEL,FRONT HUB
€ 0.00
9
5441007002
ref: 9
54401-07810
SHOE,BRAKE
€ 35.00
10
0944307001
ref: 10
09443-07025
SPRING(L:34)
€ 2.50
11-1
5444129300
ref: 11-1
54441-29305
CAM,FRONT BRAKE
€ 13.00
11-2
5444129301
ref: 11-2
54441-29305
CAM,FRONT BRAKE
€ 13.00
12
5444141300
ref: 12
CAM,FRONT BRAKE
€ 15.50
13-1
0928014003
ref: 13-1
09280-14011
O-RING (D:2.4 ID:13.8)
€ 3.50
13-2
0928012001
ref: 13-2
O RING(D:2.5,ID:11.4)
€ 2.50
14
0916014001
ref: 14
09160-14055
WASHER (14.5X22X1.6)
€ 2.50
15
0916012011
ref: 15
WASHER(12.5X20X1)
€ 1.50
16
5445129300
ref: 16
LEVER,FR BRAKE CAM
€ 11.50
17
5445141500
ref: 17
LEVER,FRONT BRAKE CAM
€ 22.50
18
0910006078
ref: 18
BOLT(6X33)
€ 2.50
19
0110706258
ref: 19
01500-06257
BOLT
€ 2.00
20
0832221068
ref: 20
08322-01067
WASHER
€ 2.00
21
0831011068
ref: 21
08310-00067
NUT
€ 2.50
22
0925011003
ref: 22
CAP(OD:17)
€ 2.50
23-1
6471143000
ref: 23-1
64711-43001
AXLE,REAR
€ 28.50
23-2
5471116502
ref: 23-2
54711-16504
AXLE,FRONT
€ 29.50
24
0918012041
ref: 24
09180-12144
SPACER (12.6X19X52)
€ 4.50
25
0918012076
ref: 25
09180-12141
SPACER (12.2X19X18.5)
€ 5.00
26
5474141100
ref: 26
SPACER,FR AXLE,R
€ 10.00
27
0918012063
ref: 27
SPACER(12X20X34.5)
€ 4.50
28-1
0832221128
ref: 28-1
08322-01127
WASHER
€ 2.00
28-2
0832211128
ref: 28-2
08322-01127
WASHER
€ 2.00
29
0831431128
ref: 29
08314-3112A
NUT 12MM
€ 2.00
30
0411130308
ref: 30
04111-3030A
COTTER PIN
€ 1.50
31
0814362017
ref: 31
BEARING
€ 11.50
32
0812362017
ref: 32
08133-62017
BEARING, RH
€ 15.00
33
5510029410
ref: 33
55100-40200
TIRE,FRONT
€ 0.00
34
5520016510
ref: 34
TUBE
€ 32.50
35
5526116510
ref: 35
55261-14540
PROTECTOR,WHEEL,INNER
€ 5.00
36
5531129300
ref: 36
55311-30501
RIM,FRONT WHEEL
€ 193.00
37
5530029820
ref: 37
55320-29310
SPOKE SET,FRONT
€ 34.50
