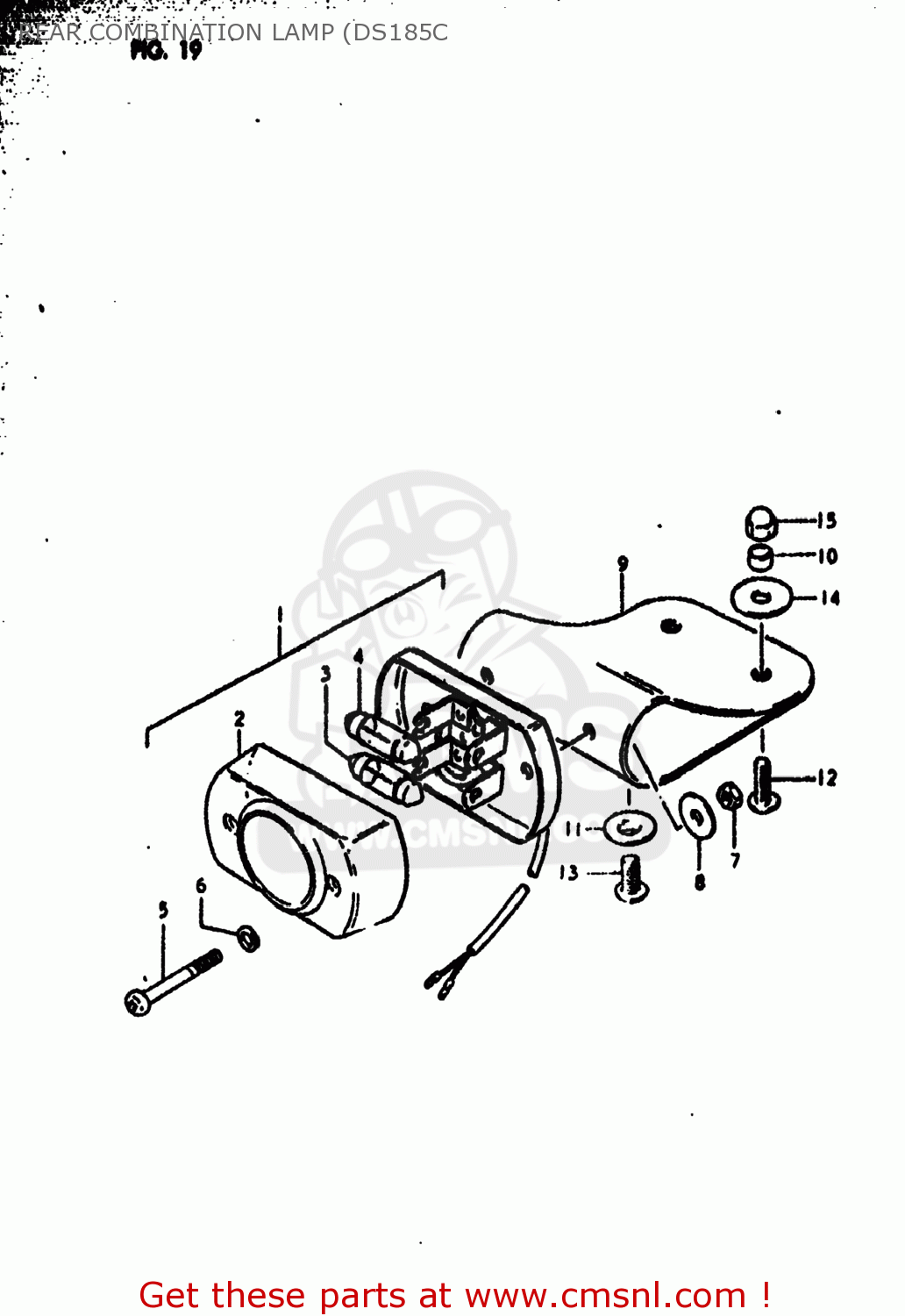

REAR COMBINATION LAMP (DS185C

ref

part #

description

quantity

1-1

3571048330
ref: 1-1

LAMP ASSEMBLY,REAR COMBINATION

€ 88.50

1-2

3571046410
ref: 1-2

LAMP ASSEMBLY,REAR COMBINATION

€ 20.50

2

3571241410
ref: 2

LENS,REAR COMBINATION LAMP

€ 19.50

3-1

0947106020
ref: 3-1

BULB

€ 3.50

3-2

0947106012
ref: 3-2

BULB

€ 2.00

4

0947106005
ref: 4

BULB 6V 8W

€ 2.50

5

3572303621
ref: 5

SCREW,REAR COMBINATION LAMP LENS

€ 3.00

6

3572703010
ref: 6

WASHER,REAR COMBINATION LAMP

€ 1.50

7

0831011048
ref: 7
08310-00047

NUT

€ 2.00

8

0916005013
ref: 8

WASHER(5.2X16X1)

€ 1.50

9-1

3576441401
ref: 9-1

CUSHION,REAR COMBINATION LAMP

€ 7.00

9-2

3576432501
ref: 9-2

CUSHION,REAR COMBINATION LAMP

€ 6.00

10

0918006001
ref: 10

SPACER(6.2X8.3X5.7)

€ 2.00

11

0916906022
ref: 11
09169-06037

WASHER

€ 6.50

12

0214206167
ref: 12

SCREW

€ 2.00

13

0214206127
ref: 13

SCREW 6X12

€ 1.50

14

0916006027
ref: 14
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

14

0916006027
ref: 14
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

15

0831311068
ref: 15
08313-10067

NUT

€ 2.00
