CARBURETOR (DS185C
DS185 1979 (N) USA (E03)

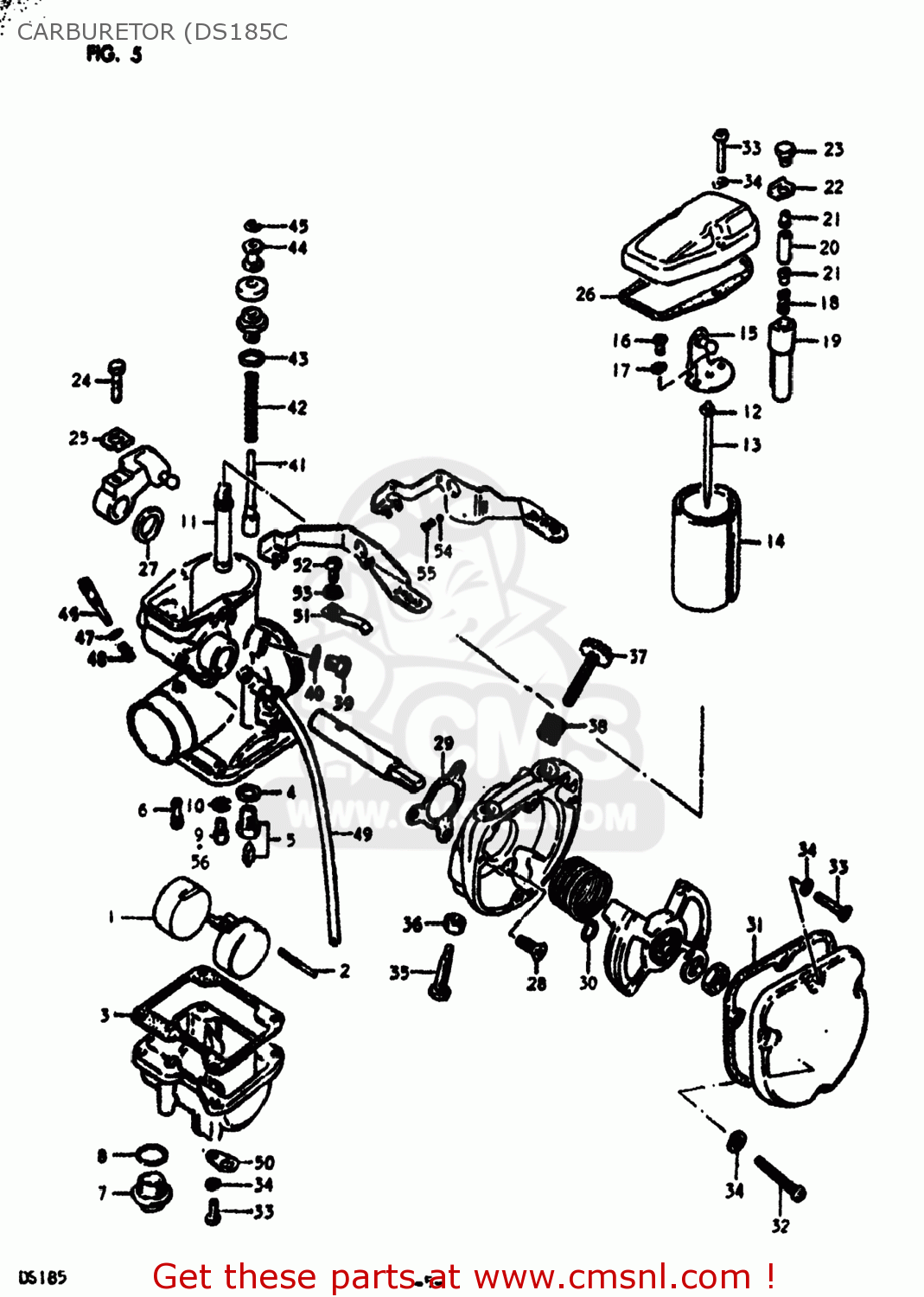

Carburetor (ds185c diagram DS185 1979 (N) USA (E03)
CARBURETOR (DS185C DS185 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
1320029311
ref: 0-1
13200-29312
CARBURETOR ASSEMBLY
€ 133.50
0-2
1320029312
ref: 0-2
CARBURETOR ASSEMBLY
€ 133.50
1
1325229630
ref: 1
FLOAT
€ 22.50
2
1325401010
ref: 2
PIN,FLOAT
€ 3.00
3
1325129630
ref: 3
GASKET,FLOAT CHAMBER (NAS)
€ 7.00
4
1339258600
ref: 4
GASKET,VALVE SEAT (NAS)
€ 2.00
5
1337029630
ref: 5
13370-30651
VALVE ASSEMBLY,NEEDLE
€ 53.50
6
0949222002
ref: 6
09492-22006
JET
€ 7.50
7
1324729630
ref: 7
PLUG,DRAIN
€ 6.50
8
1324629630
ref: 8
O RING
€ 5.00
9
0949125004
ref: 9
09491-25009
JET
€ 5.50
10
1338203110
ref: 10
WASHER
€ 2.50
11
0949400183
ref: 11
JET,NEEDLE
€ 6.50
12
1339410010
ref: 12
CLIP
€ 4.50
13
1338397311
ref: 13
NO PRODUCT DESCRIPTION AVAILABLE
€ 5.00
14
1355129630
ref: 14
VALVE,THROTTLE
€ 26.00
15
1339830650
ref: 15
BRACKET,CARBURETOR
€ 0.00
16
0211103067
ref: 16
02112-0306B
SCREW
€ 2.00
17
0832121038
ref: 17
09162-03001
LOCK WASHER
€ 1.50
18
1354343010
ref: 18
SPRING
€ 0.00
19
1354532212
ref: 19
LEVER ASSEMBLY
€ 0.00
20
1354630650
ref: 20
SPRING
€ 10.00
21
1354443010
ref: 21
PIN,CARBURETOR
€ 2.50
22
1354743010
ref: 22
PLATE,CARBURETOR
€ 0.00
23
1354832212
ref: 23
SCREW
€ 0.00
24
1361330650
ref: 24
BOLT
€ 0.00
25
1357630650
ref: 25
RING
€ 0.00
26
1326629630
ref: 26
GASKET,MIXING CHAMBER (NAS)
€ 4.00
27
1357429630
ref: 27
RING
€ 1.50
28
0212105147
ref: 28
09126-05005
SCREW(5X14)
€ 2.00
29
1363229630
ref: 29
GASKET,CARBURETOR CASE
€ 2.50
30
1357329630
ref: 30
SPRING
€ 3.00
31
1363129630
ref: 31
GASKET,CARBURETOR COVER
€ 2.00
32
0211204258
ref: 32
02112-0425B
SCREW 4X25
€ 2.00
33
0211204168
ref: 33
02112-0416A
SCREW
€ 1.00
34
0832121048
ref: 34
08321-0104A
LOCK WASHER
€ 2.00
35
1360532212
ref: 35
01500-0620A
SCREW
€ 2.00
36
0831022068
ref: 36
08310-00067
NUT 6MM
€ 2.50
37
1326729630
ref: 37
SCREW,THROTTLE STOP
€ 7.00
38
1326833110
ref: 38
SPRING,THROTTLE SCREW
€ 4.00
39
1366418654
ref: 39
BOLT
€ 10.50
40
1366331010
ref: 40
GASKET,THRO VALVE INSPECTION (NAS)
€ 3.50
41
1341133110
ref: 41
VALVE,STARTER
€ 15.00
42
1341718630
ref: 42
SPRING
€ 6.00
43
1329515010
ref: 43
09280-08014
O-RING
€ 3.00
44
1342433110
ref: 44
RING
€ 6.00
45
1361733110
ref: 45
CLIP,CARBURETOR STARTER
€ 2.00
46
1326915011
ref: 46
SCREW,PILOT AIR ADJUSTING
€ 12.50
47
1329533010
ref: 47
O RING
€ 4.50
48
1326835010
ref: 48
SPRING
€ 3.00
49
1368430650
ref: 49
13684-40A00
HOSE
€ 7.50
50
1369330650
ref: 50
PLATE
€ 8.50
51
1342629630
ref: 51
SPRING
€ 0.00
52
0211104067
ref: 52
02112-0406B
SCREW
€ 2.00
53
0832121048
ref: 53
08321-0104A
LOCK WASHER
€ 2.00
54
1343543010
ref: 54
13596-93010
BALL,STARTER SHAFT
€ 3.50
55
1343443010
ref: 55
SPRING
€ 6.50
56-1
0949123008
ref: 56-1
09491-23010
JET
€ 5.50
56-2
0949124002
ref: 56-2
09491-24014
JET
€ 8.00
56-3
0949127005
ref: 56-3
09491-27015
JET
€ 10.50
56-4
0949128002
ref: 56-4
09491-28009
JET
€ 6.50
56-5
0949129002
ref: 56-5
JET,MAIN(145)
€ 8.00
