REAR FENDER (DS185C
DS185 1979 (N) USA (E03)

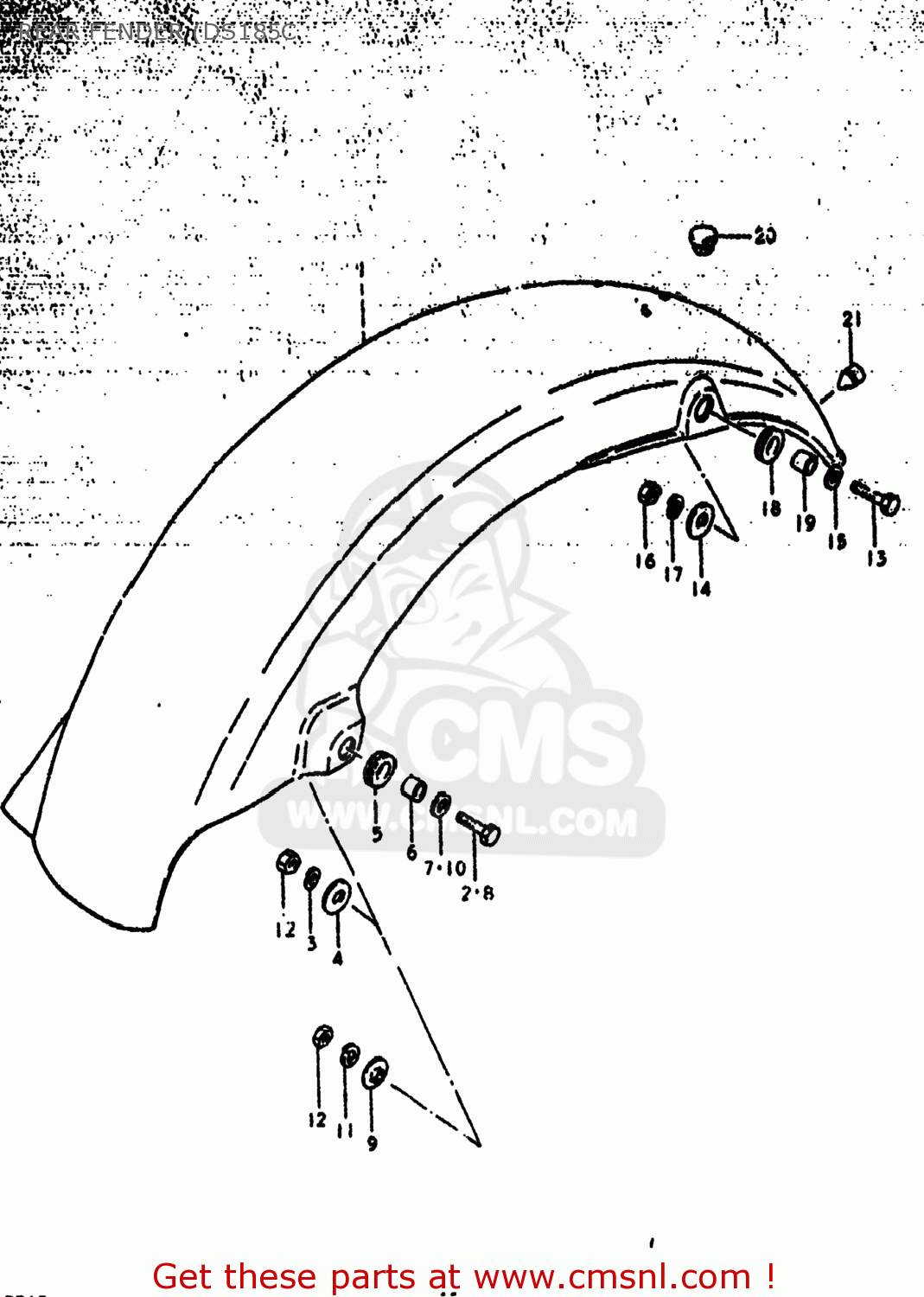

Rear fender (ds185c diagram DS185 1979 (N) USA (E03)
REAR FENDER (DS185C DS185 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
631112940105M
ref: 1-1
63111-29403-13L
FENDER,REAR
€ 51.50
1-2
631112940205M
ref: 1-2
63111-29403-13L
FENDER,REAR
€ 51.50
1-2
631112940205M
ref: 1-2
63111-29403-13L
FENDER,REAR
€ 51.50
1-2
631112940205M
ref: 1-2
63111-29403-13L
FENDER,REAR
€ 51.50
1-3
631112940305M
ref: 1-3
63111-29403-13L
FENDER,REAR
€ 51.50
1-4
631112940300B
ref: 1-4
63111-29403-13L
FENDER,REAR
€ 51.50
2
0110706208
ref: 2
01500-06207
BOLT
€ 2.00
3
0832121068
ref: 3
08321-01067
LOCK WASHER
€ 2.50
4
0916006027
ref: 4
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
5
0932008007
ref: 5
09320-08021
CUSHION
€ 4.00
6
0918006038
ref: 6
SPACER(6.1X9X7.5)
€ 2.00
7
0832221068
ref: 7
08322-01067
WASHER
€ 2.00
8
0110706128
ref: 8
01500-06127
BOLT
€ 2.00
9
0916906010
ref: 9
WASHER
€ 3.00
10
0832221068
ref: 10
08322-01067
WASHER
€ 2.00
11
0832121068
ref: 11
08321-01067
LOCK WASHER
€ 2.50
12
0831011068
ref: 12
08310-00067
NUT
€ 2.50
13
0110708308
ref: 13
01500-08307
BOLT (8X30)
€ 2.50
14
0916008032
ref: 14
WASHER(8.5X26X1.2)
€ 3.50
15
0832211088
ref: 15
08322-01087
WASHER
€ 2.00
16
0831012088
ref: 16
08310-00087
NUT
€ 2.00
17
0832121088
ref: 17
08321-01087
LOCK WASHER
€ 2.00
18
0932012011
ref: 18
CUSHION
€ 3.00
19
0918008021
ref: 19
09180-08188
SPACER (8.2X12X7.5)
€ 3.00
20
0932108008
ref: 20
CUSHION
€ 2.50
21
0932106013
ref: 21
CUSHION
€ 2.50
