MUFFLER (DS185T)
DS185 1979 (N) USA (E03)

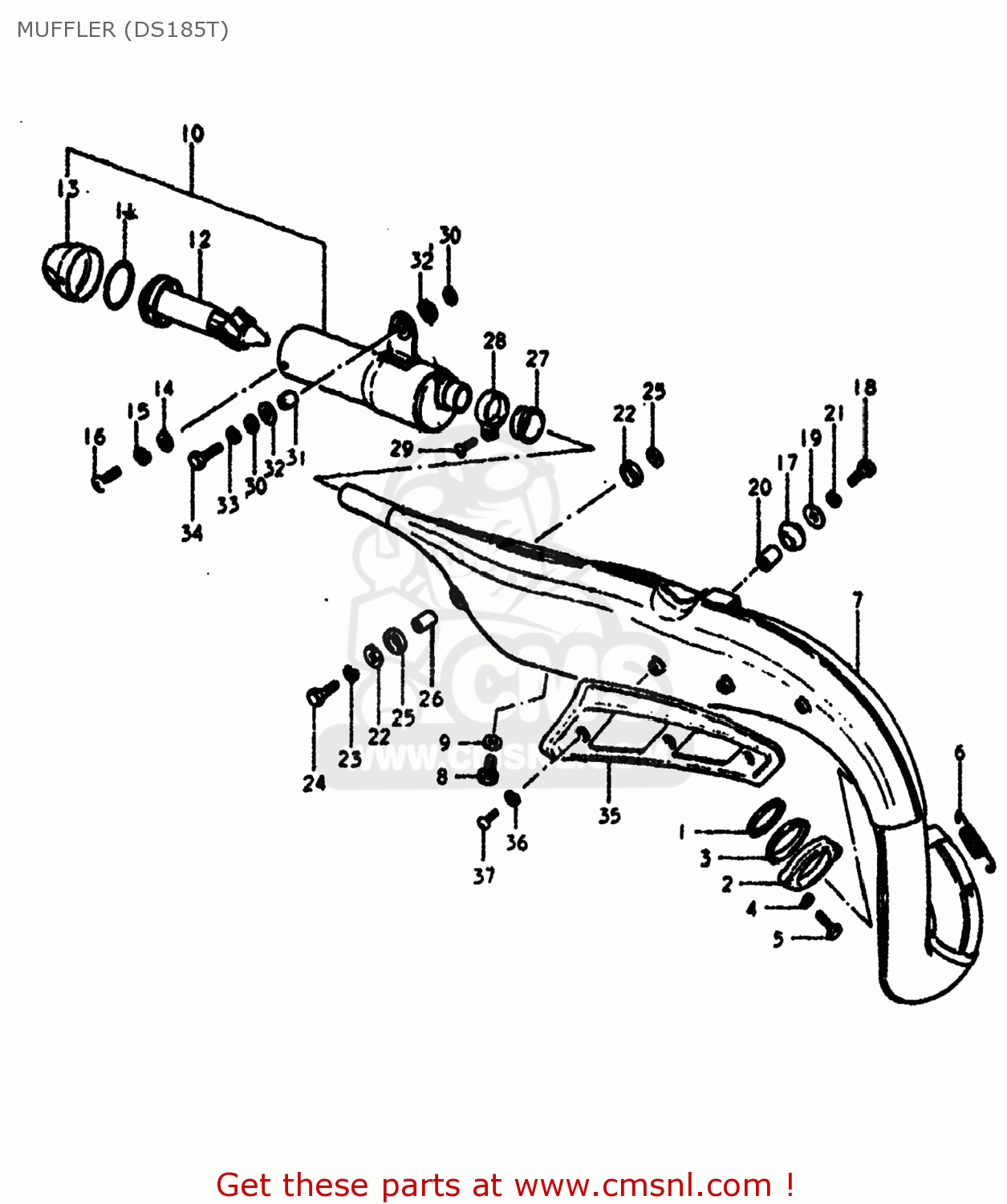

Muffler (ds185t) diagram DS185 1979 (N) USA (E03)
MUFFLER (DS185T) DS185 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418128080
ref: 1
GASKET,EXHAUST PIPE (NAS)
€ 10.50
2
1418228000
ref: 2
CLAMP,EXHAUST PIPE
€ 11.50
3
1418428010
ref: 3
14184-28011
CUSHION,EXHAUST PIPE
€ 4.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
0110706258
ref: 5
01500-06257
BOLT
€ 2.00
6
0944311002
ref: 6
SPRING
€ 4.50
7
1431029901
ref: 7
14301-29910-H01
BODY,MUFFLER
€ 614.50
8
0910010004
ref: 8
BOLT 10X9
€ 1.00
9
0916810002
ref: 9
GASKET(10X14X3.6) (NAS)
€ 2.00
10
1430329920
ref: 10
14303-29920-H01
MUFFLER ASSEMBLY
€ 110.00
11
0928055001
ref: 11
O-RING (D:3.5 ID:54.4)
€ 5.50
12
1485030510
ref: 12
TUBE,MUFFLER CLEAN OUT
€ 22.50
13
1464930520
ref: 13
COVER,SECOND MUFFLER TAIL
€ 10.00
14
0832221068
ref: 14
08322-01067
WASHER
€ 2.00
15
0832121068
ref: 15
08321-01067
LOCK WASHER
€ 2.50
16
0912806013
ref: 16
SCREW(6X8)
€ 1.50
17
1477230500
ref: 17
DAMPER,MUFFLER,FR
€ 3.00
18
0110708358
ref: 18
01500-0835B
BOLT
€ 3.50
19
0916008005
ref: 19
09160-08134
WASHER
€ 2.50
20
0918008048
ref: 20
09180-08302
SPACER (8X12X15)
€ 3.50
21
0832121088
ref: 21
08321-01087
LOCK WASHER
€ 2.00
22
0916008010
ref: 22
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
23
0832121088
ref: 23
08321-01087
LOCK WASHER
€ 2.00
24
0110708258
ref: 24
01500-08257
BOLT
€ 2.50
25
0932014006
ref: 25
CUSHION
€ 3.50
26
0918008075
ref: 26
09180-08200
SPACER (8.6X13.8X9.8)
€ 3.00
27
1477138000
ref: 27
CONNECTOR,MUFFLER
€ 25.00
28
0940237601
ref: 28
CLAMP
€ 5.50
29
0211206208
ref: 29
02112-06207
SCREW
€ 2.00
30
0916008005
ref: 30
09160-08134
WASHER
€ 2.50
31
0918008083
ref: 31
09180-08201
SPACER
€ 4.50
32
0932014006
ref: 32
CUSHION
€ 3.50
33
0832121088
ref: 33
08321-01087
LOCK WASHER
€ 2.00
34
0110708258
ref: 34
01500-08257
BOLT
€ 2.50
35
1478129900
ref: 35
COVER,MUFFLER
€ 30.50
36
0832121068
ref: 36
08321-01067
LOCK WASHER
€ 2.50
37
0211206088
ref: 37
02112-06087
SCREW
€ 2.00
