FRONT FORK (DS185T)
DS185 1979 (N) USA (E03)

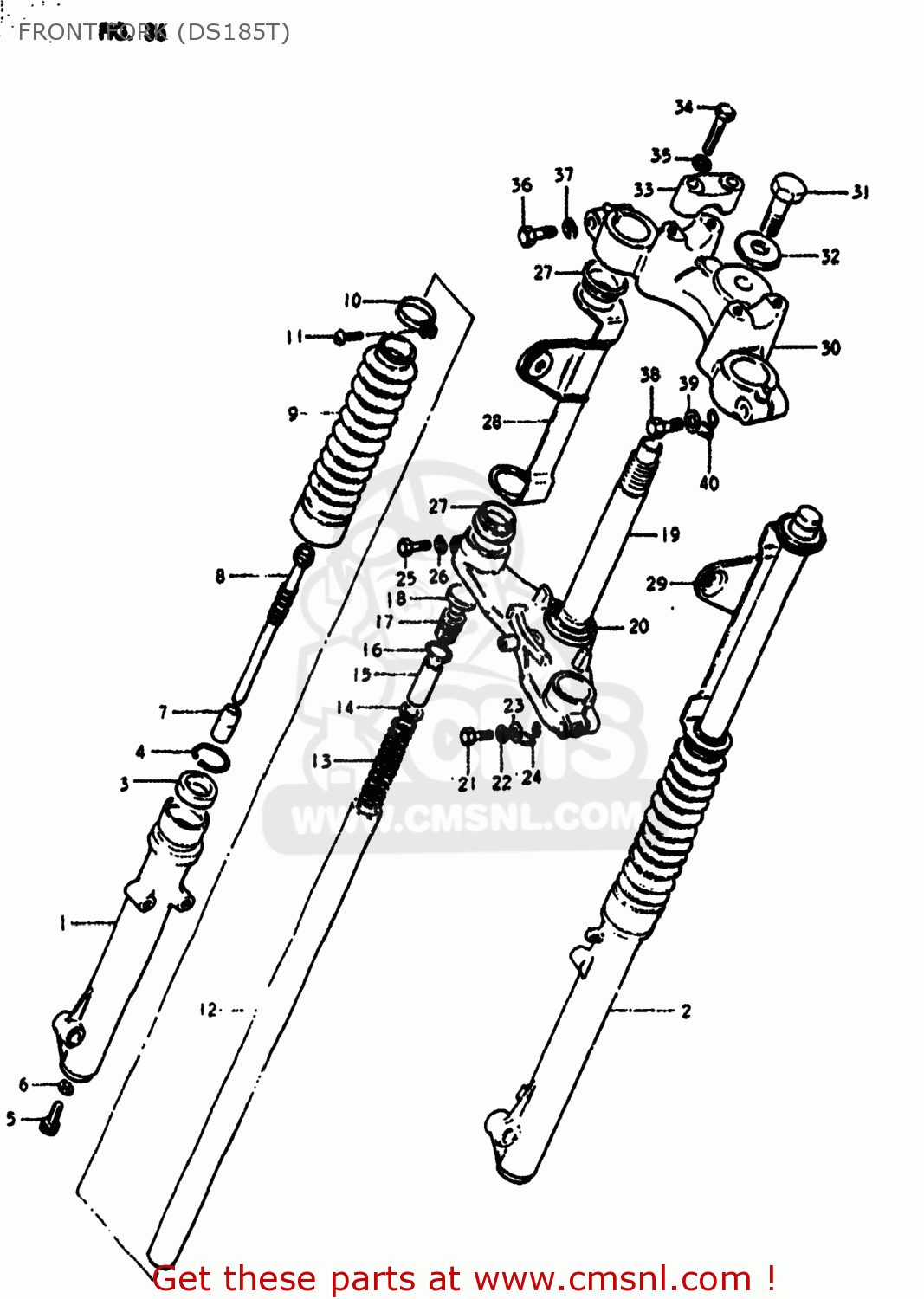

Front fork (ds185t) diagram DS185 1979 (N) USA (E03)
FRONT FORK (DS185T) DS185 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5110029420291
ref: 0
DAMPER SET
€ 298.00
1
5113029420
ref: 1
TUBE,FORK,OUTER,RIGHT
€ 62.50
2
5114029420
ref: 2
TUBE,OUTER,LEFT
€ 58.50
3
5115329420
ref: 3
SEAL,OIL
€ 10.50
4
5115629420
ref: 4
RING,STOPPER
€ 4.50
5
5114716510
ref: 5
BOLT,FORK CYLINDER(10X25)
€ 3.50
6
5114841310
ref: 6
GASKET (NAS)
€ 2.50
7
5119536220
ref: 7
PIECE,OIL LOCK
€ 11.50
8
5114629330
ref: 8
CYLINDER,FRONT FORK
€ 26.00
9
5157129420
ref: 9
51571-29420-019
BOOT (BLACK)
€ 28.50
10
5157529420
ref: 10
BAND
€ 7.00
11
0211204168
ref: 11
02112-0416A
SCREW
€ 1.00
12
5111029420
ref: 12
TUBE,INNER
€ 109.00
13
5117129420
ref: 13
SPRING
€ 0.00
14
5117218630
ref: 14
GUIDE,SPRING COVER
€ 5.50
15
5117629010
ref: 15
SPACER,SPRING
€ 0.00
16
5118125010
ref: 16
51181-29400
O-RING,FORK INNER TUBE
€ 2.50
17
5135129320
ref: 17
CAP
€ 13.50
18
5118929330
ref: 18
51189-29400
CAP,FRONT FORK
€ 7.00
19
5141029420
ref: 19
STEM,STEERING
€ 64.00
20
5162133001
ref: 20
RACE,STEERING OUTER LWR
€ 10.00
21
0110412458
ref: 21
01500-12457
BOLT
€ 5.50
22
0832121128
ref: 22
08321-01127
WASHER,LOCK 12
€ 2.50
23
0832211128
ref: 23
08322-01127
WASHER
€ 2.00
24
5145530540
ref: 24
CLIP
€ 5.50
25
0110412408
ref: 25
01500-12403
BOLT
€ 3.00
26
0832121128
ref: 26
08321-01127
WASHER,LOCK 12
€ 2.50
27
5155329420
ref: 27
CUSHION,HEADLAMP BRACKET
€ 2.50
28
5153029420291
ref: 28
BRACKET,HEADLAMP HOUSING
€ 16.00
29
5154029420291
ref: 29
BRACKET,HEADLAMP,LEFT
€ 14.00
30
5131129920291
ref: 30
HEAD,STEERING STEM
€ 59.00
31
5135120010
ref: 31
51351-29400
BOLT,FORK INNER TUBE
€ 25.00
32
5135622012
ref: 32
WASHER,STEM HEAD(10.5X30X3.2)
€ 4.00
33
5621129320291
ref: 33
HOLDER,HANDLE(BLACK)
€ 12.00
34
0110708358
ref: 34
01500-0835B
BOLT
€ 3.50
35
0832121088
ref: 35
08321-01087
LOCK WASHER
€ 2.00
36
0110710408
ref: 36
01500-10407
BOLT 10X40
€ 3.00
37
0832121108
ref: 37
08321-01107
LOCK WASHER
€ 2.00
38
0110710408
ref: 38
01500-10407
BOLT 10X40
€ 3.00
39
0916012006
ref: 39
09160-12089
WASHER
€ 2.00
40
5145529330
ref: 40
CLIP
€ 5.50
