FRONT FORK (DS185C)
DS185 1979 (N) USA (E03)

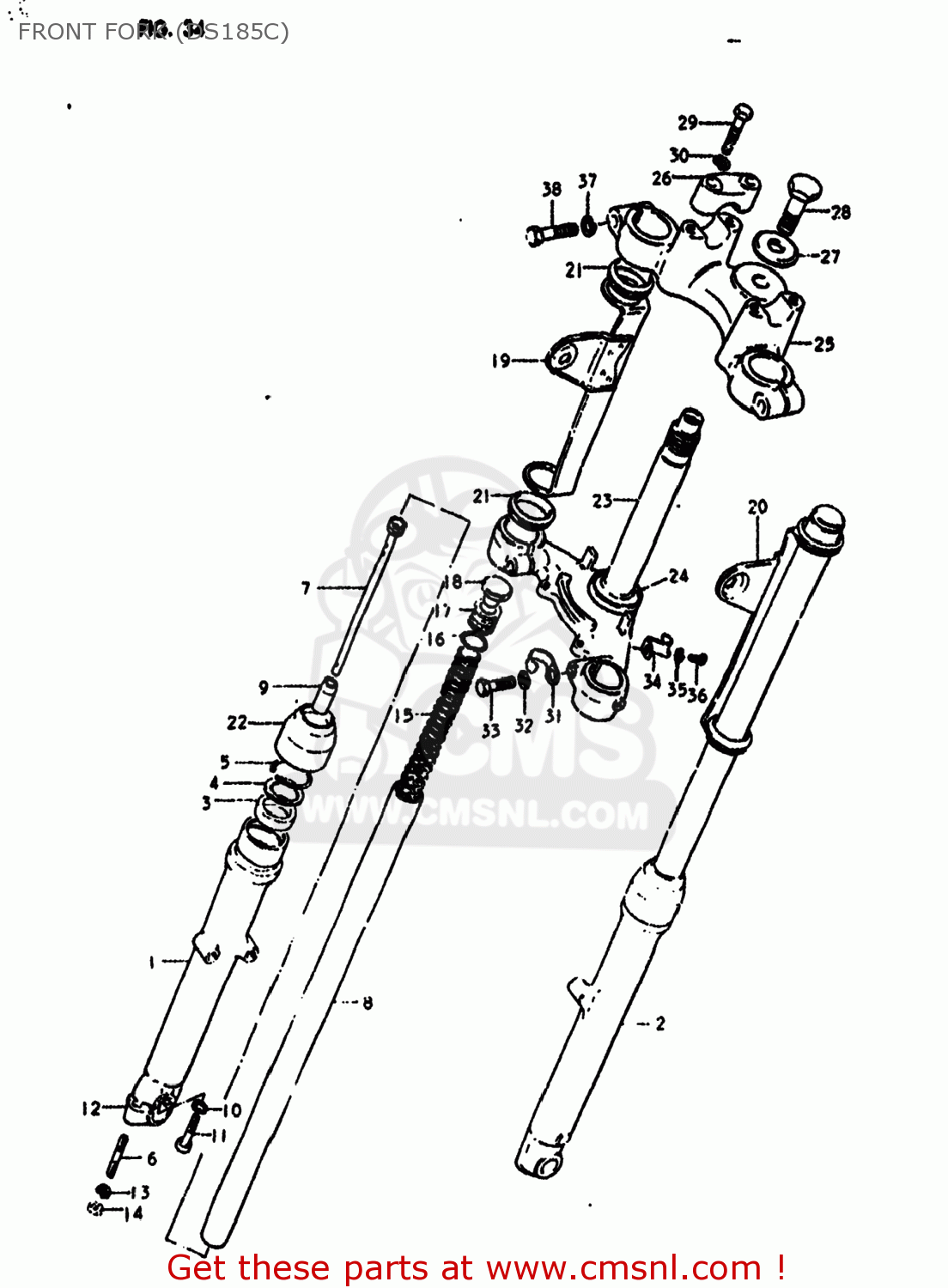

Front fork (ds185c) diagram DS185 1979 (N) USA (E03)
FRONT FORK (DS185C) DS185 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
5110029400291
ref: 0-1
DAMPER SET
€ 0.00
0-2
5110029401291
ref: 0-2
DAMPER SET
€ 0.00
1
5113029400
ref: 1
51130-29320
TUBE,FORK,OUTER,RIGHT
€ 0.00
2
5114029400
ref: 2
51140-29320
TUBE,OUTER,LEFT
€ 0.00
3
5115329400
ref: 3
51153-16F00
OIL SEAL,FRONT FORK
€ 11.00
4
5115836010
ref: 4
WASHER,FRONT FORK
€ 4.00
5
5115636010
ref: 5
RING,SNAP
€ 5.50
6
0141108308
ref: 6
STUD 8X30
€ 2.00
7-1
5114629400
ref: 7-1
CYLINDER,FRONT FORK
€ 31.50
7-2
5114629320
ref: 7-2
CYLINDER,FRONT FORK
€ 0.00
8
5111029400
ref: 8
TUBE,FORK,INNER
€ 103.50
9
5119529400
ref: 9
PIECE,OIL LOCK
€ 0.00
10
5114841310
ref: 10
GASKET (NAS)
€ 2.50
11
5114716510
ref: 11
BOLT,FORK CYLINDER(10X25)
€ 3.50
12
5113229400
ref: 12
HOLDER,AXLE
€ 6.50
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
14
0914008005
ref: 14
09140-08017
NUT (8MM)
€ 1.50
15-1
5117129400
ref: 15-1
51171-29320
SPRING
€ 19.50
15-2
5117129320
ref: 15-2
SPRING
€ 19.50
16
5118129400
ref: 16
O RING
€ 2.50
17
5135129320
ref: 17
CAP
€ 13.50
18
5118929400
ref: 18
CAP,FR FORK
€ 7.00
19
5153029400291
ref: 19
BRACKET,HEADLAMP HOUSING
€ 11.50
20
5154029400291
ref: 20
BRACKET,HEADLAMP,LEFT
€ 15.00
21
5155329311
ref: 21
GASKET (NAS)
€ 4.00
22
5117329310
ref: 22
51173-39610
SEAL,DUST
€ 10.00
23
5141029400
ref: 23
51410-36260
STEM,STEERING
€ 72.50
24
5162133001
ref: 24
RACE,STEERING OUTER LWR
€ 10.00
25
5131129320291
ref: 25
HEAD,STEERING STEM
€ 65.50
26
5621129320291
ref: 26
HOLDER,HANDLE(BLACK)
€ 12.00
27
5135629400
ref: 27
51356-22012
WASHER,STEM HEAD
€ 4.00
28
5135129400
ref: 28
BOLT,FR FORK(10X33)
€ 25.00
29
0110708358
ref: 29
01500-0835B
BOLT
€ 3.50
30
0832121088
ref: 30
08321-01087
LOCK WASHER
€ 2.00
31
5145536010
ref: 31
CLIP
€ 6.50
32
0832121128
ref: 32
08321-01127
WASHER,LOCK 12
€ 2.50
33
5145128012
ref: 33
BOLT,FR FORK LWR(12X33)
€ 11.50
34
5145305110
ref: 34
CLIP,BRAKE CABLE
€ 4.50
35
0832121068
ref: 35
08321-01067
LOCK WASHER
€ 2.50
36
0211206108
ref: 36
02112-06107
SCREW
€ 1.50
37
0832121108
ref: 37
08321-01107
LOCK WASHER
€ 2.00
38
5145129400
ref: 38
51451-27431
BOLT,FORK INNER TUBE F
€ 4.50
