AIR CLEANER
DS80 1978 (C) USA (E03)

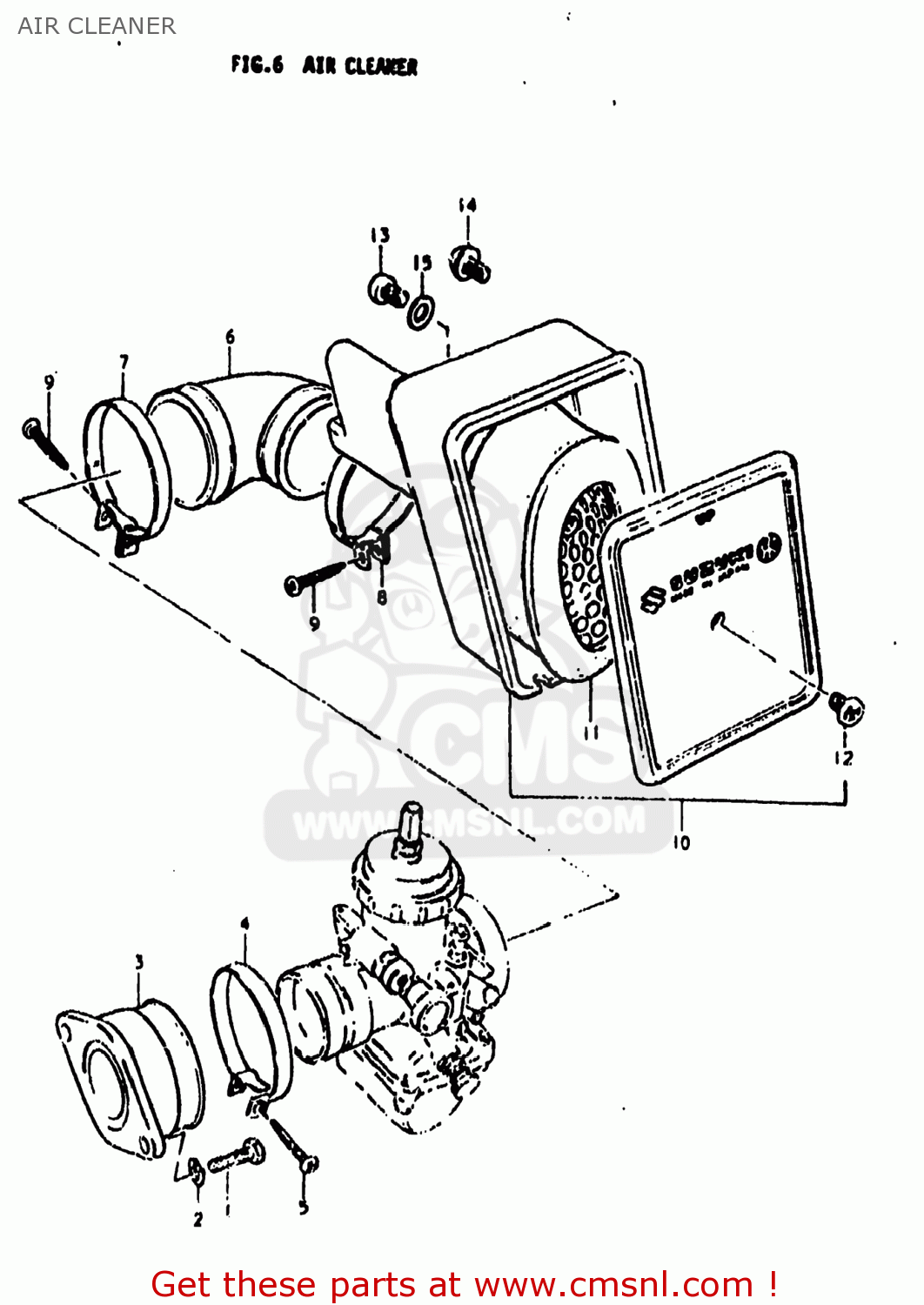

Air cleaner diagram DS80 1978 (C) USA (E03)
AIR CLEANER DS80 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
0110706208
ref: 1
01500-06207
BOLT
€ 2.00
2
0832121068
ref: 2
08321-01067
LOCK WASHER
€ 2.50
3-1
1311046000
ref: 3-1
13110-46001
PIPE,INTAKE
€ 23.50
3-2
1311046001
ref: 3-2
PIPE,INTAKE
€ 23.50
4
0940246306
ref: 4
09402-46208
CLAMP
€ 4.50
5
0321104208
ref: 5
03211-04207
SCREW
€ 1.50
6
1388146400
ref: 6
HOSE,CARBURETOR AIR INLET
€ 15.00
7
0940250306
ref: 7
CLAMP
€ 6.00
8
0940242306
ref: 8
09402-42303
CLAMP
€ 4.50
9
0321104208
ref: 9
03211-04207
SCREW
€ 1.50
10-1
1370046420
ref: 10-1
13700-46421
CLEANER ASSEMBLY,AIR
€ 72.50
10-2
1370046421
ref: 10-2
CLEANER ASSY,AIR
€ 72.50
11
1378146120
ref: 11
FILTER
€ 17.00
12
0211206108
ref: 12
02112-06107
SCREW
€ 1.50
13
0211206108
ref: 13
02112-06107
SCREW
€ 1.50
14
0215206108
ref: 14
02142-0610A
SCREW
€ 2.00
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
