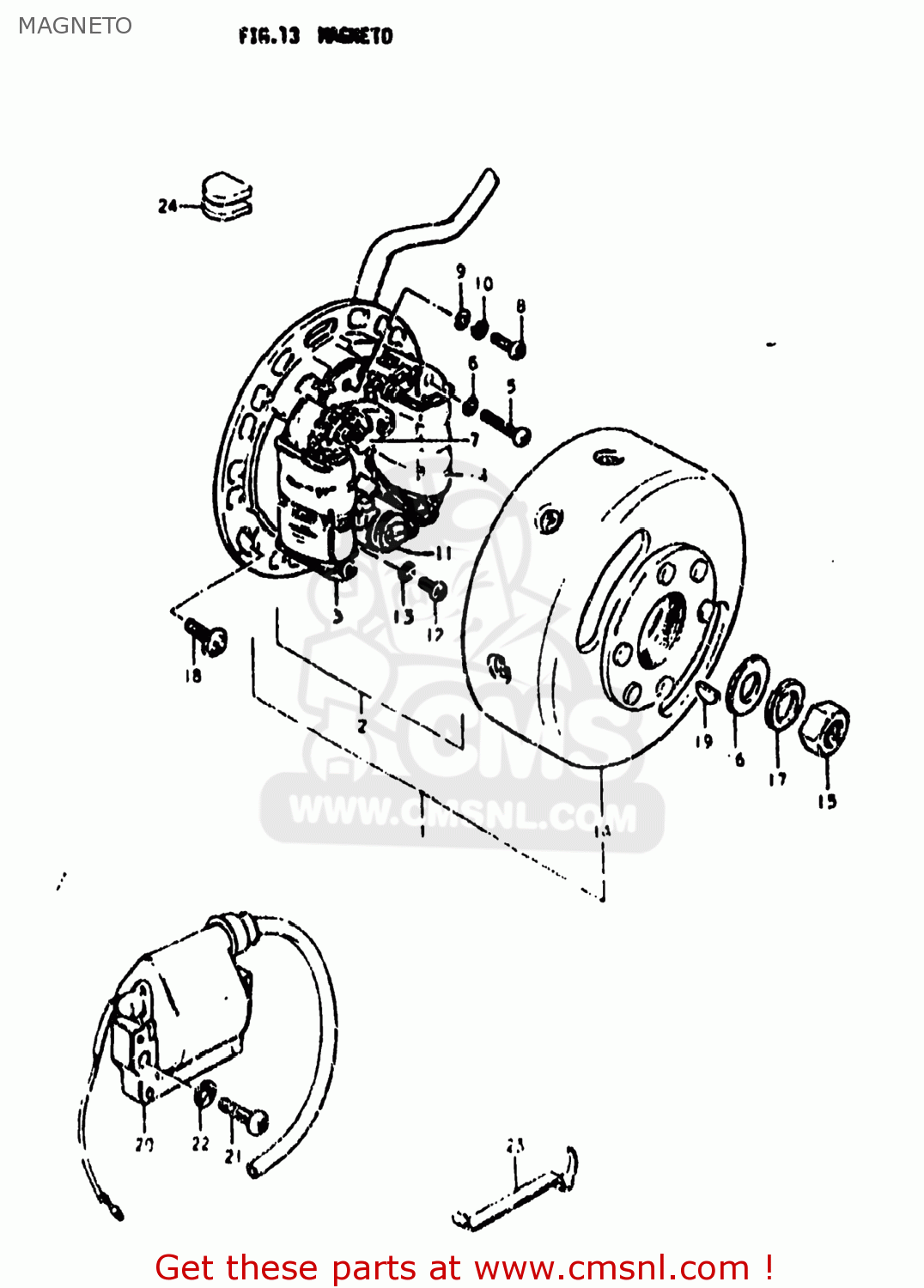

MAGNETO

ref

part #

description

quantity

1

3210046410
ref: 1

MAGNETO ASSEMBLY

€ 81.00

2

3210146410
ref: 2

STATOR ASSEMBLY

€ 81.00

3

3212046410
ref: 3

COIL,LIGHTING

€ 23.50

4

3214048010
ref: 4

COIL,PRIMARY

€ 60.50

5

0211104308
ref: 5
09125-04023

SCREW

€ 1.50

6

0832121048
ref: 6
08321-0104A

LOCK WASHER

€ 2.00

7

3224043012
ref: 7

POINT ASSY,CONTACT

€ 18.50

8

0912504001
ref: 8

SCREW(4X10)

€ 4.50

9

0832221048
ref: 9
08322-01047

WASHER

€ 2.00

10

0832121048
ref: 10
08321-0104A

LOCK WASHER

€ 2.00

11

3234143012
ref: 11

CONDENSER

€ 12.50

12

0211204088
ref: 12
02112-04087

SCREW

€ 1.50

13

0832121048
ref: 13
08321-0104A

LOCK WASHER

€ 2.00

14

3210246410
ref: 14
32102-43013

ROTOR ASSEMBLY

€ 133.50

15

0914010003
ref: 15
09140-10041

NUT (10MM)

€ 3.50

16

0832221108
ref: 16
08322-01107

WASHER

€ 2.50

17

0832121108
ref: 17
08321-01107

LOCK WASHER

€ 2.00

18

0913905011
ref: 18

SCREW(5X14)

€ 3.00

19

0834131039
ref: 19

KEY

€ 2.00

20

3341043010
ref: 20
33410-43011

COIL ASSEMBLY,IGNITION

€ 89.50

21-1

0211206208
ref: 21-1
02112-06207

SCREW

€ 2.00

21-2

0211206258
ref: 21-2
02112-06257

SCREW

€ 2.00

22

0832121068
ref: 22
08321-01067

LOCK WASHER

€ 2.50

23

3388122200
ref: 23

BAND

€ 1.50

24

0925904001
ref: 24

PLUG

€ 3.50
