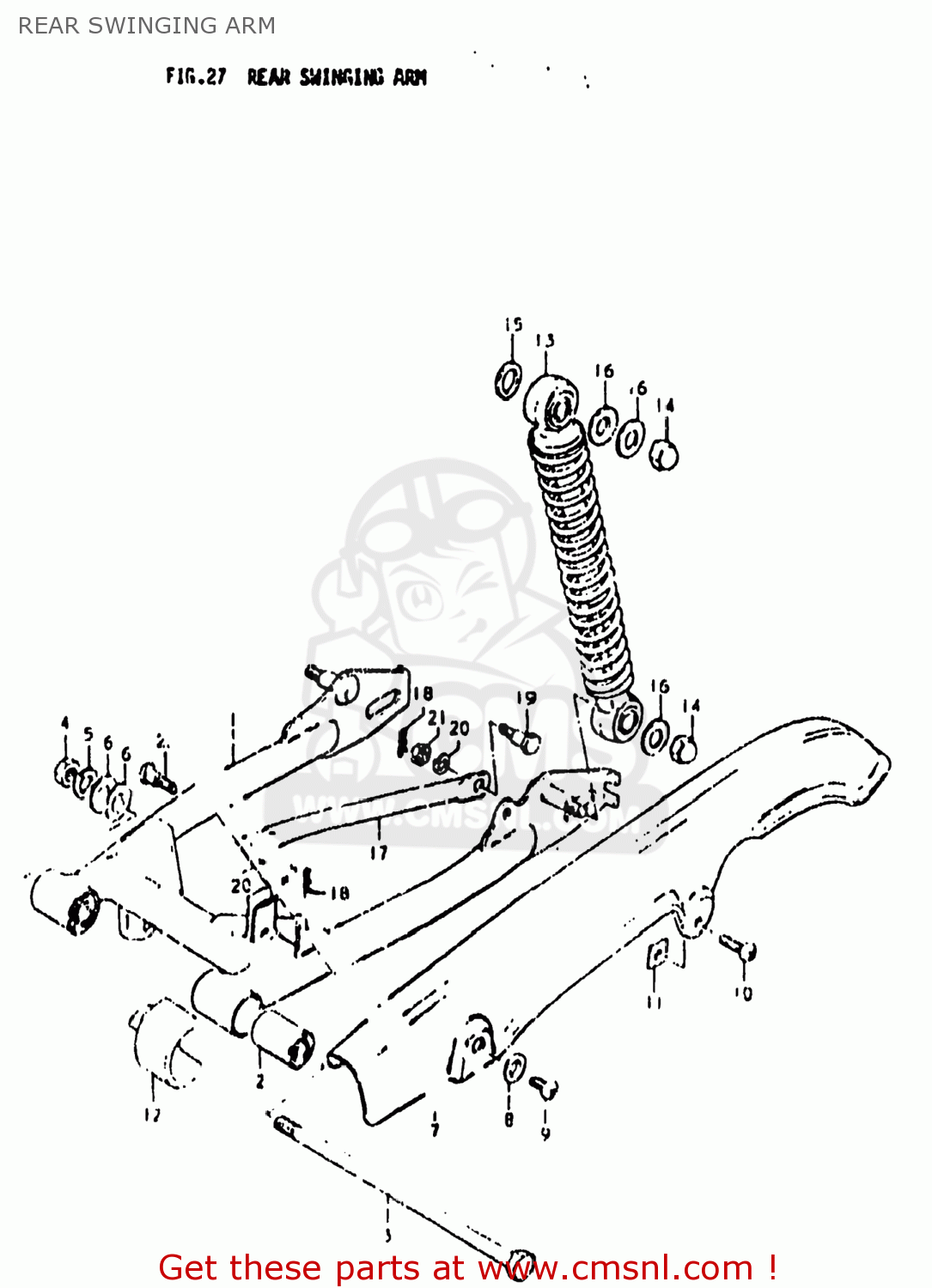

REAR SWINGING ARM

ref

part #

description

quantity

1

6110046830019
ref: 1
61000-46201-019

SWING ARM ASSEMBLY,REAR

€ 64.00

2

0931910024
ref: 2

BUSH

€ 8.50

3

6121146000
ref: 3
61211-4600V

SHAFT,REAR SWING ARM

€ 13.00

4

0831012108
ref: 4
08310-00107

NUT

€ 2.50

5

0832121108
ref: 5
08321-01107

LOCK WASHER

€ 2.00

6

0832221108
ref: 6
08322-01107

WASHER

€ 2.50

7

6131146200019
ref: 7
61311-46201-019

CASE,CHAIN

€ 25.00

8

0916906010
ref: 8

WASHER

€ 3.00

9

0211206088
ref: 9
02112-06087

SCREW

€ 2.00

10

0211206128
ref: 10
02112-06127

SCREW 6X12

€ 2.00

11

6131643000
ref: 11

NUT,CHAIN CASE RR

€ 3.00

12

6127346000
ref: 12
61273-46001

BUFFER,CHAIN TOUCH DEFLECTOR

€ 19.00

13

6210046400
ref: 13
62100-46401

ABSORBER ASSEMBLY,REAR SHOCK

€ 57.00

14

0831311108
ref: 14
08313-10107

NUT, LOWER LH

€ 2.50

15

0832211128
ref: 15
08322-01127

WASHER

€ 2.00

16

0916010001
ref: 16
09160-10093

WASHER

€ 2.00

17

6431146200
ref: 17
64311-46200-019

TORQUE LINK,REAR

€ 12.50

18

0938510001
ref: 18
09385-10005

CLIP

€ 1.50

19

0911108013
ref: 19

BOLT(8X26.5)

€ 3.00

20

0832121088
ref: 20
08321-01087

LOCK WASHER

€ 2.00

21

0914008008
ref: 21

NUT

€ 1.50

22

0911108015
ref: 22

BOLT(8X22)

€ 3.00
