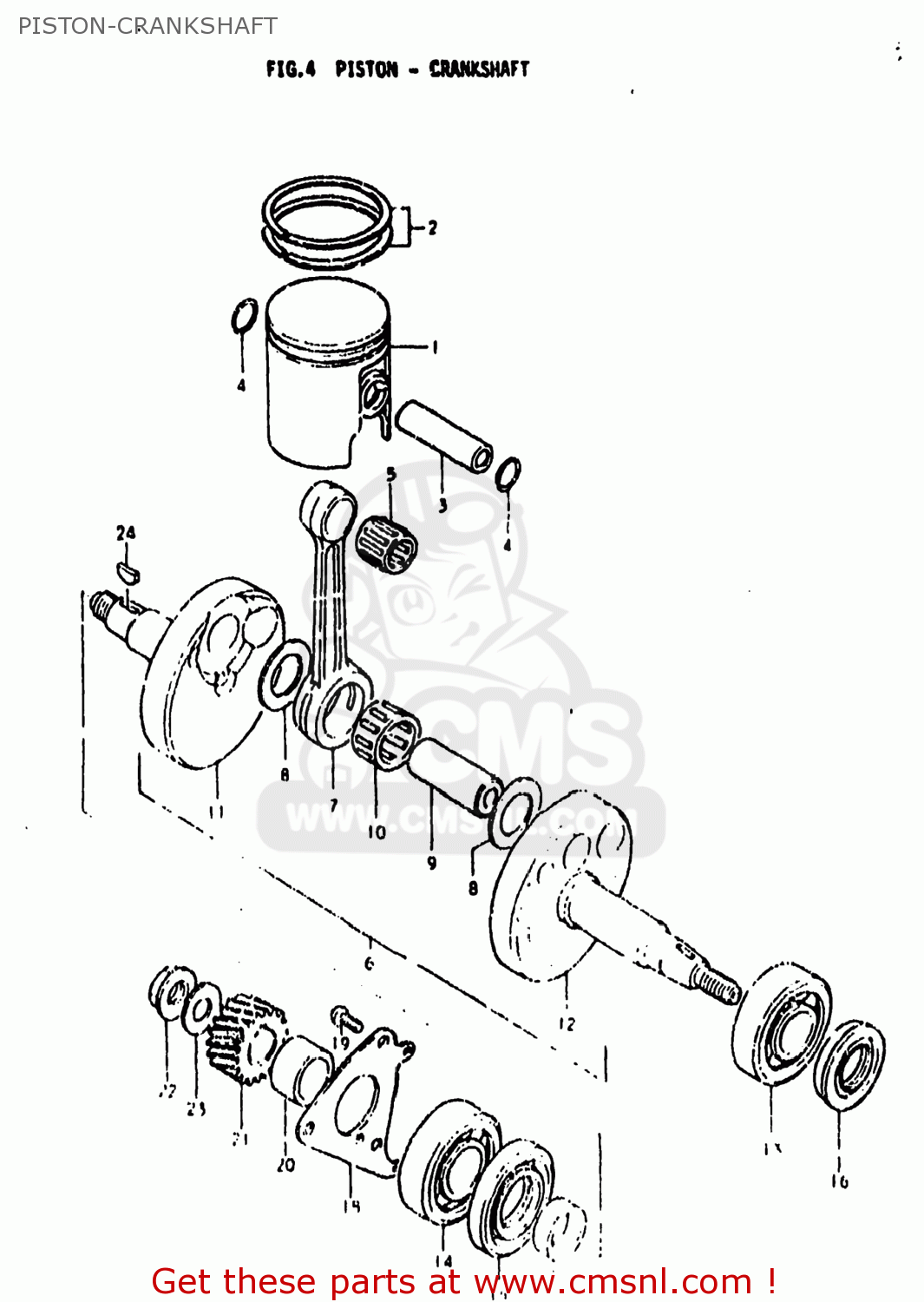

PISTON-CRANKSHAFT

ref

part #

description

quantity

1-1

1211046400
ref: 1-1
12110-46411

PISTON

€ 41.00

1-2

1211046730
ref: 1-2
12100-46411-050

PISTON

€ 67.00

1-3

1211046400050
ref: 1-3
12100-46411-050

PISTON (OS:0.5)

€ 67.00

1-4

1211046740
ref: 1-4
12100-46411-100

PISTON

€ 64.50

1-5

1211046400100
ref: 1-5
12100-46411-100

PISTON

€ 64.50

2-1

1214036130
ref: 2-1
12140-25631

RING SET,PISTON

€ 33.50

2-2

1214025631
ref: 2-2

PISTON RING SET STD

€ 33.50

2-3

1214036770
ref: 2-3
12140-46000-050

PISTON RING SET 0.50

€ 32.50

2-4

1214025631050
ref: 2-4

RING SET,PISTON(OS:0.50)

€ 32.50

2-5

1214028630
ref: 2-5

RING SET,PISTON

€ 52.00

3

1215125000
ref: 3
12151-35400

PIN,PISTON

€ 8.00

4

0938112001
ref: 4

RING,SNAP

€ 1.50

5

0926312003
ref: 5
09263-12023

BEARING

€ 9.00

6

1220046400
ref: 6

CRANKSHAFT ASSEMBLY

€ 184.50

7

1216114000
ref: 7
12161-14001

CONNECTING ROD

€ 42.50

8

0916017005
ref: 8
09160-17022

WASHER

€ 3.50

9

1221146000
ref: 9

PIN,CRANK

€ 16.00

10

0926317010
ref: 10
09263-17022

BEARING

€ 21.50

11

1222146000
ref: 11
12220-46810

CRANKSHAFT,RIGHT

€ 126.00

12

1226146400
ref: 12

CRANKSHAFT,LEFT

€ 58.50

13

0926220019
ref: 13
09262-20069

BEARING

€ 28.00

14

0926220045
ref: 14
09262-20064

BEARING

€ 21.00

15-1

0928326012
ref: 15-1
09283-26015

OIL SEAL

€ 6.50

15-2

0928326013
ref: 15-2
09283-26015

OIL SEAL

€ 6.50

16

0928320011
ref: 16
09283-20034

OIL SEAL

€ 6.00

17

0918020021
ref: 17

SPACER(20X26X9)

€ 6.50

18

1254146001
ref: 18

RETAINER,CRANKSHAFT BEARING,R

€ 5.00

19

0211206128
ref: 19
02112-06127

SCREW 6X12

€ 2.00

20

0918020059
ref: 20

SPACER(20X26X14)

€ 7.50

21

2111146000
ref: 21

GEAR,PRIMARY DRIVE NO.19

€ 31.00

22

0915912005
ref: 22

NUT

€ 4.00

23

0916412016
ref: 23

WASHER

€ 5.00

24

0834131039
ref: 24

KEY

€ 2.00
