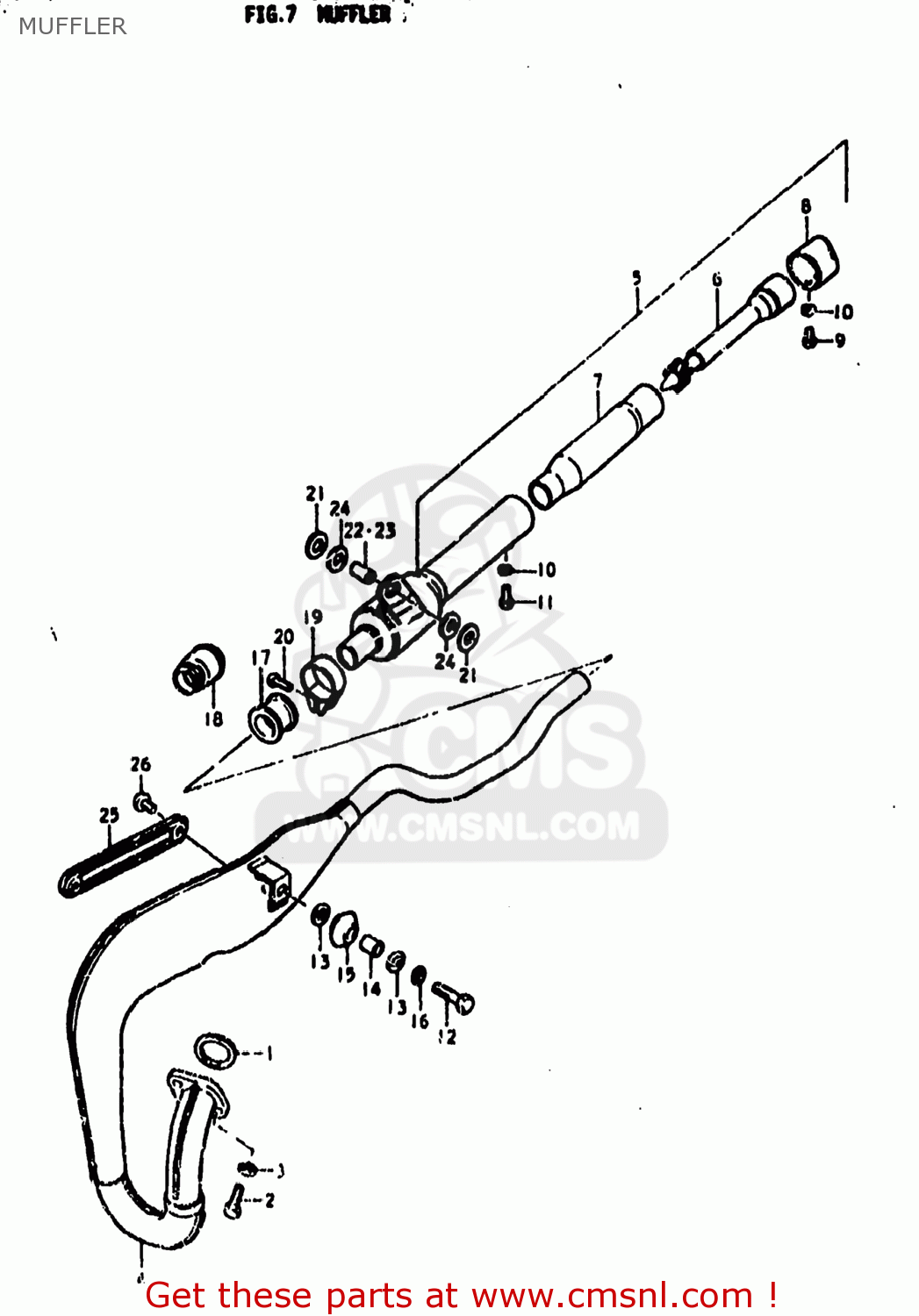

MUFFLER

ref

part #

description

quantity

1

1418105010
ref: 1
14181-18C00

GASKET,EXHAUST PIPE (NAS)

€ 6.50

2

0110706256
ref: 2
01500-0625A

BOLT

€ 2.50

3

0832121068
ref: 3
08321-01067

LOCK WASHER

€ 2.50

4

1431046500
ref: 4
14310-46502-H01

BODY,MUFFLER

€ 121.50

5

1430346600
ref: 5
14303-46600-H01

MUFFLER ASSEMBLY

€ 102.50

6

1485030602
ref: 6

TUBE,CLEAN OUT

€ 34.00

7

1481546600
ref: 7

SHELL,ARRESTER

€ 0.00

8

1481716401
ref: 8

CUTTER,SPARK ARRESTER

€ 10.50

9

0211206088
ref: 9
02112-06087

SCREW

€ 2.00

10

0832121068
ref: 10
08321-01067

LOCK WASHER

€ 2.50

11

0211206168
ref: 11
02112-06167

SCREW

€ 2.50

12

0110708308
ref: 12
01500-08307

BOLT (8X30)

€ 2.50

13

0916008007
ref: 13
09160-08127

WASHER (8.7X22X2)

€ 2.00

14

0918008048
ref: 14
09180-08302

SPACER (8X12X15)

€ 3.50

15

1477230500
ref: 15

DAMPER,MUFFLER,FR

€ 3.00

16

0832121088
ref: 16
08321-01087

LOCK WASHER

€ 2.00

17

1477148000
ref: 17
14771-48002

CONNECTOR,MUFFLER

€ 8.00

18

1477148001
ref: 18
14771-48002

CONNECTOR,MUFFLER

€ 8.00

19

0940231602
ref: 19

CLAMP

€ 3.00

20

0211206208
ref: 20
02112-06207

SCREW

€ 2.00

21

0916008005
ref: 21
09160-08134

WASHER

€ 2.50

21

0916008005
ref: 21
09160-08134

WASHER

€ 2.50

22

0918008050
ref: 22
09180-08199

SPACER (8.6X13.8X9)

€ 2.50

23

0918008050
ref: 23
09180-08199

SPACER (8.6X13.8X9)

€ 2.50

24

0932014006
ref: 24

CUSHION

€ 3.50

25

1478146400
ref: 25
14780-26500

COVER,MUFFLER

€ 51.50

26

0211206088
ref: 26
02112-06087

SCREW

€ 2.00

all assemblies
