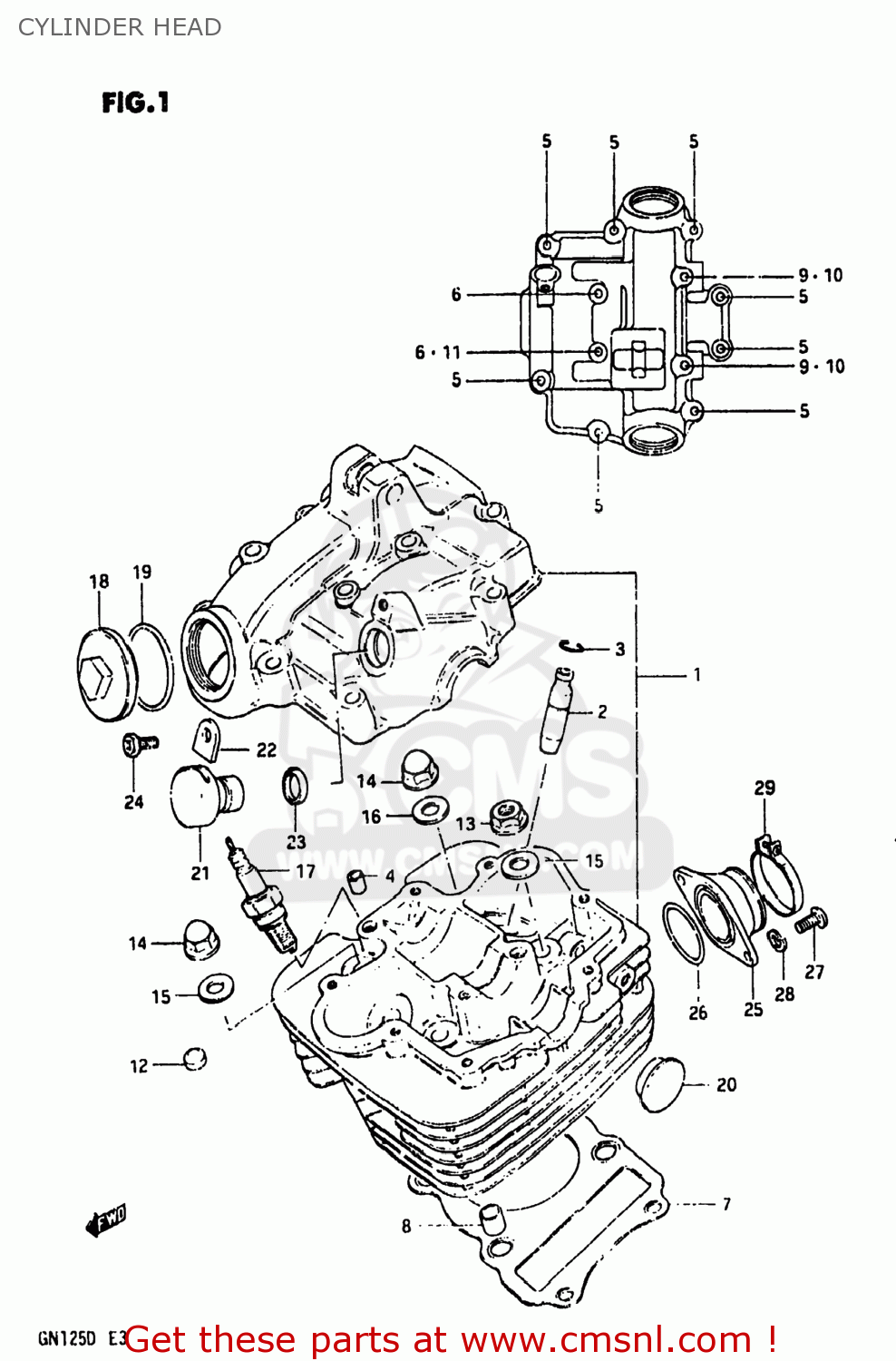

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110005200
ref: 1-1
11100-05203

HEAD ASSEMBLY,CYLINDER

€ 476.00

1-2

1110005201
ref: 1-2
11100-05203

HEAD ASSEMBLY,CYLINDER

€ 476.00

1-3

1110005261
ref: 1-3
11100-05263

HEAD ASSEMBLY,CYLINDER

€ 727.50

2

1111505270
ref: 2

GUIDE,VALVE

€ 18.50

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5

0151706358
ref: 5
01550-06357

BOLT 6X35

€ 2.50

6

0151706608
ref: 6
01550-06607

BOLT (6X60)

€ 2.50

7-1

1114105200
ref: 7-1
11141-05202

GASKET,CYLINDER HEAD

€ 7.50

7-2

1114105201
ref: 7-2
11141-05202

GASKET,CYLINDER HEAD (NAS)

€ 7.50

8

0421111169
ref: 8

PIN

€ 2.00

9

0142106258
ref: 9
01421-06257

STUD 6X25

€ 2.50

10

0831616068
ref: 10
08319-31067

NUT

€ 2.50

11

0916806004
ref: 11

GASKET(6.2X11X1).2 (NAS)

€ 1.50

12

1115145000
ref: 12

PAD,CYLINDER HEAD

€ 3.00

13

0915908031
ref: 13
09159-08034

NUT

€ 2.00

14

0915908029
ref: 14

NUT

€ 6.00

15

0916008039
ref: 15

WASHER(8.5X19X2.3)

€ 2.00

16

0916808012
ref: 16
09168-08013

GASKET (NAS)

€ 4.50

17-1

0948200144
ref: 17-1

SPARK PLUG D8EA

€ 3.50

17-2

0948200145
ref: 17-2
09482-00223

SPARK PLUG X24ES-U

€ 3.50

17-3

0948200275
ref: 17-3
09482-00144

SPARK PLUG A6YC

€ 3.50

18

1117537110
ref: 18
11175-37111

CAP,INSPECTION

€ 14.00

19

0928030001
ref: 19

O RING(D:3,ID:29.5)

€ 2.00

20

0924122002
ref: 20

PLUG(OD:22.5)

€ 5.50

21

2644245000
ref: 21

PLUG,TACH GEAR SLEEVE HOLE

€ 15.50

22

2644933000
ref: 22

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

23

2645145000A
ref: 23

SEAL,TACHOMETER DRIVEN

€ 4.50

24

0912805101
ref: 24

SCREW(5X12)

€ 1.50

25

1311005300
ref: 25
13101-05300

PIPE,INTAKE

€ 33.50

26

0928032006
ref: 26

O RING(D:2.4,ID:31.7)

€ 2.50

27

0211206168
ref: 27
02112-06167

SCREW

€ 2.50

28

0832121068
ref: 28
08321-01067

LOCK WASHER

€ 2.50

29

0940244205
ref: 29
09402-44208

CLAMP

€ 5.50
