REAR FENDER
GN125 1983 (D) USA (E03)

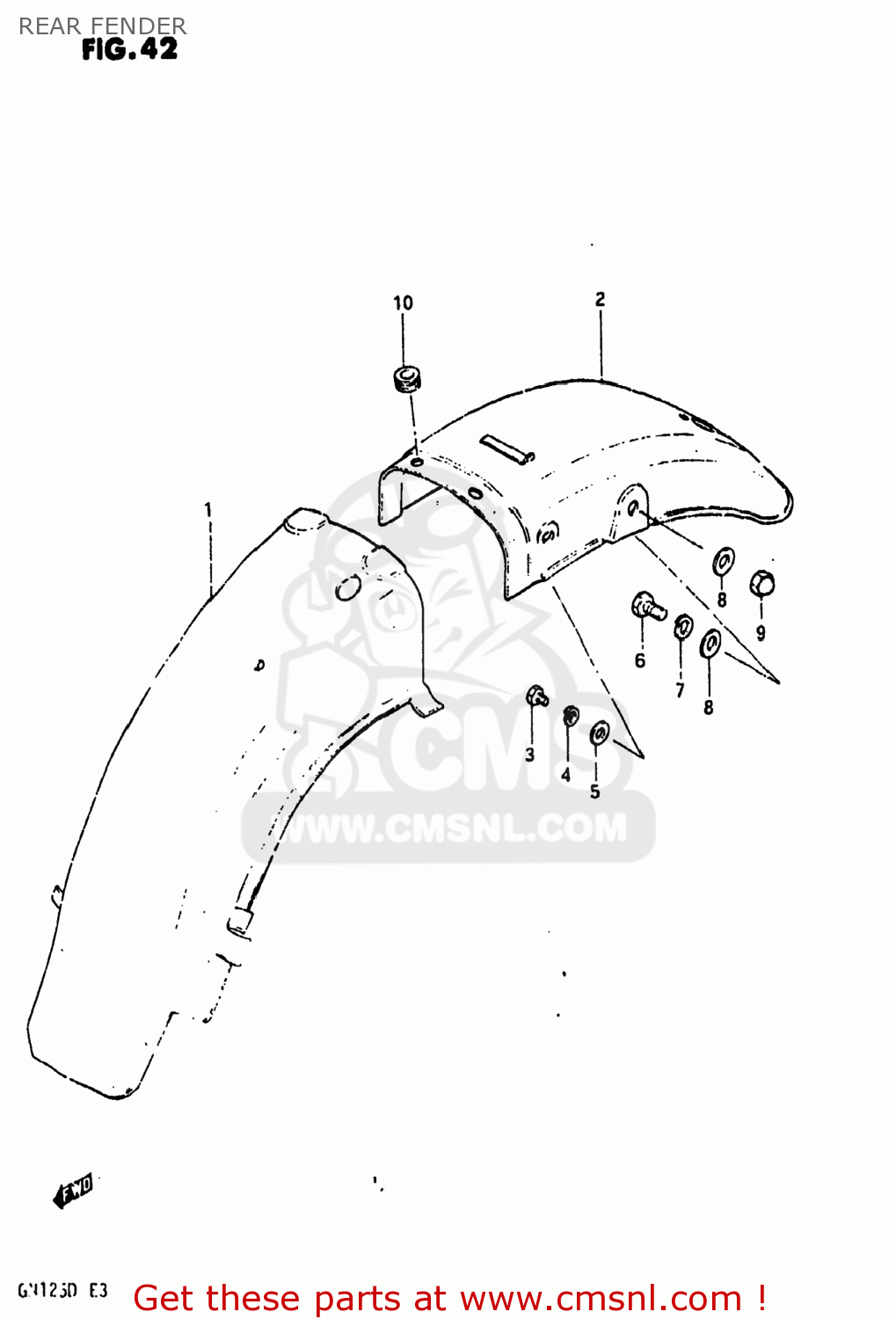

Rear fender diagram GN125 1983 (D) USA (E03)
REAR FENDER GN125 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6311205300
ref: 1-1
63112-05302
FENDER,REAR
€ 44.00
1-2
6311205301
ref: 1-2
63112-05302
FENDER,REAR
€ 44.00
2-1
6311038300
ref: 2-1
63110-38303
FENDER,REAR
€ 136.50
2-2
6311038301
ref: 2-2
63110-38303
FENDER,REAR
€ 136.50
3
0110706128
ref: 3
01500-06127
BOLT
€ 2.00
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
0832221068
ref: 5
08322-01067
WASHER
€ 2.00
6
0110708208
ref: 6
01500-08207
BOLT
€ 3.00
7
0832121088
ref: 7
08321-01087
LOCK WASHER
€ 2.00
8
0832211088
ref: 8
08322-01087
WASHER
€ 2.00
9
0831311088
ref: 9
08313-10087
NUT
€ 2.50
10
0932005006
ref: 10
09320-06504
CUSHION
€ 4.00
