STARTING MOTOR
GN125 1983 (D) USA (E03)

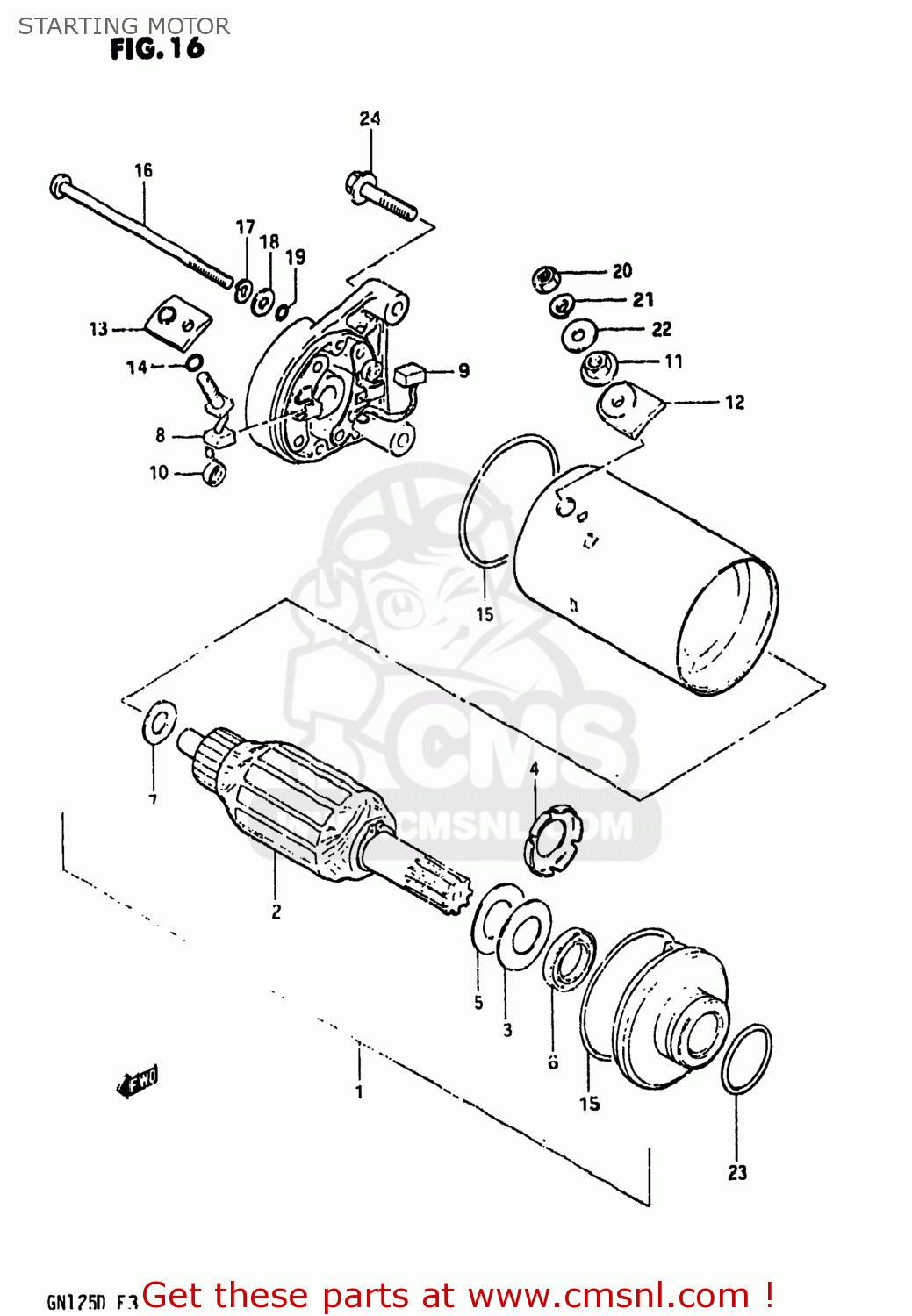

Starting motor diagram GN125 1983 (D) USA (E03)
STARTING MOTOR GN125 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110005300
ref: 1
31100-05510
MOTOR ASSEMBLY,STARTING
€ 899.00
2
3131110200
ref: 2
31311-10201-H17
ARMATURE
€ 167.00
3
3136110200
ref: 3
RING,SNAP
€ 2.50
4
3136101400
ref: 4
SHIM,ARMATURE
€ 0.00
5
3136138300
ref: 5
SHIM
€ 1.50
6
3115345010
ref: 6
31153-43400
SEAL,OIL
€ 19.50
7
3136147010
ref: 7
31170-43400
SHIM,ARMATURE
€ 3.50
8
3113005300
ref: 8
BRUSH(+)
€ 13.00
9
3113110200
ref: 9
BRUSH(-)
€ 8.50
10
3113565010
ref: 10
SPRING
€ 3.00
11
0831022068
ref: 11
08310-00067
NUT 6MM
€ 2.50
12
3117205300
ref: 12
BUSH,A
€ 0.00
13
3117105300
ref: 13
BUSH,B
€ 0.00
14
3114338300
ref: 14
O RING
€ 3.50
15
3126405300
ref: 15
31264-32C10
O-RING
€ 9.00
16
3128105300
ref: 16
31281-88C00
BOLT
€ 8.50
17
0832121058
ref: 17
08321-0105A
LOCK WASHER
€ 2.00
18
3116138300
ref: 18
WASHER
€ 2.50
19
3115638300
ref: 19
O RING
€ 3.00
20
0831022068
ref: 20
08310-00067
NUT 6MM
€ 2.50
21
0832121068
ref: 21
08321-01067
LOCK WASHER
€ 2.50
22
0916006003
ref: 22
09160-06129
WASHER (6.7X16X1.8)
€ 2.00
23
0928024001
ref: 23
O RING(D:2,ID:24.5)
€ 2.00
24
0154706308
ref: 24
01547-06307
BOLT (6X30)
€ 2.50
