GEAR SHIFTING
GN125 1983 (D) USA (E03)

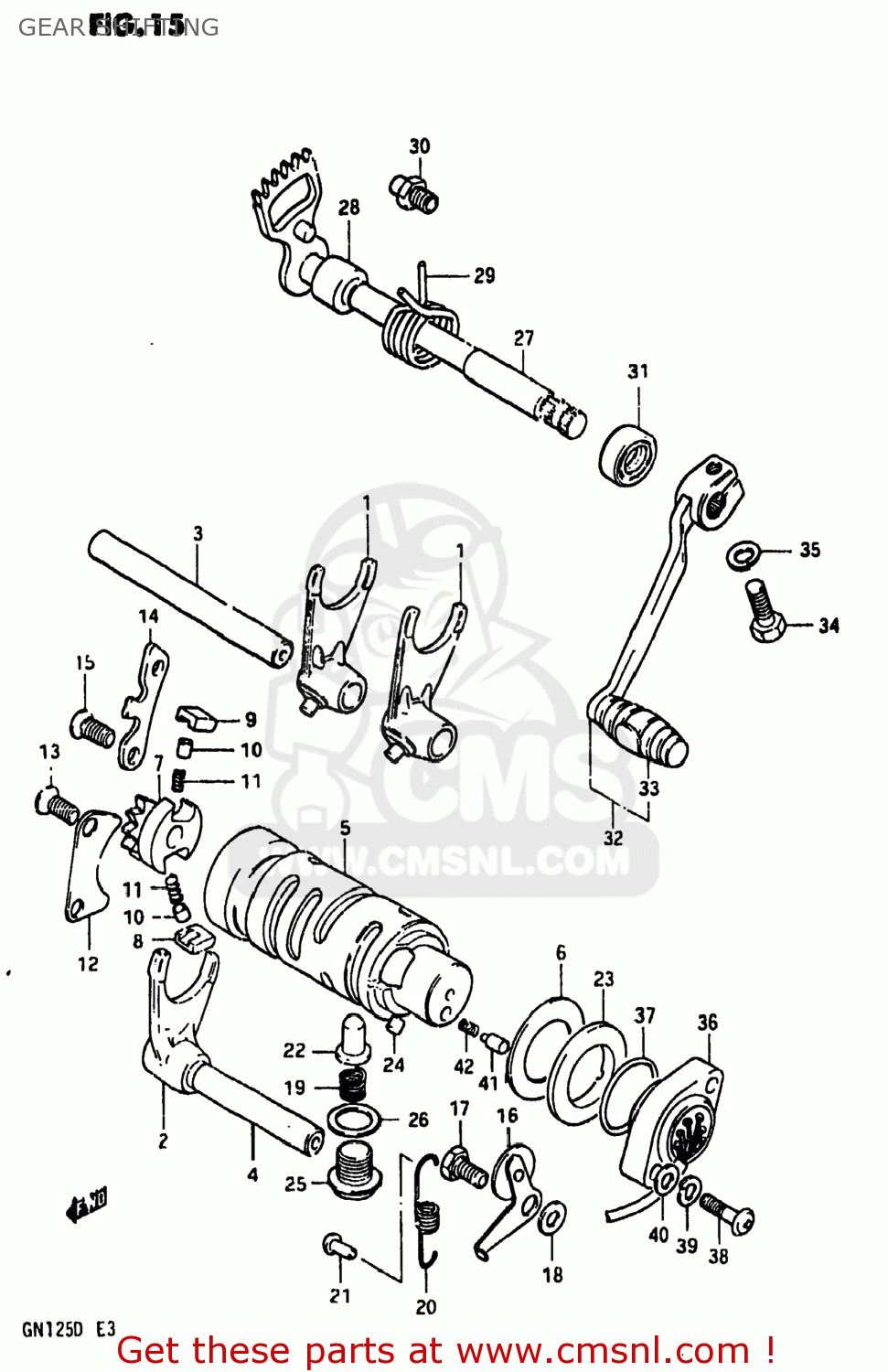

Gear shifting diagram GN125 1983 (D) USA (E03)
GEAR SHIFTING GN125 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521105200
ref: 1
25221-08300
FORK,GEAR SHIFT NO.1
€ 54.50
2
2523105200
ref: 2
25231-05201
FORK,GEAR SHIFT NO.3
€ 54.50
3
2541105200
ref: 3
25411-16701
SHAFT,GEAR SHIFT FORK
€ 11.50
4
2542140400
ref: 4
25421-35410
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531005300
ref: 5
25310-05330
CAM,GEAR SHIFT
€ 75.00
6
0821125401
ref: 6
09181-25251
WASHER,THRUST
€ 2.50
7
2532211000
ref: 7
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
8
2532311000
ref: 8
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532411000
ref: 9
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533130000
ref: 12
25331-30001
LIFTER,GEAR SHIFT PAWL
€ 3.50
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
2534105200
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0212206128
ref: 15
02122-06127
SCREW
€ 3.00
16
2535005200
ref: 16
STOPPER,GEAR SHIFTING
€ 8.00
17
0911106019
ref: 17
09111-06054
BOLT
€ 1.50
18
0821106141
ref: 18
WASHER
€ 2.50
19
0944011014
ref: 19
SPRING
€ 1.50
20
0944308012
ref: 20
SPRING
€ 3.00
21
0922004001
ref: 21
09223-04001
RIVET
€ 1.50
22
2535130010
ref: 22
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
23
2538145400
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
24
0621104063
ref: 24
04221-04069
PIN 4X6
€ 2.00
25
0924714012
ref: 25
09247-14026
PLUG (14X12)
€ 3.50
26
0916814004
ref: 26
GASKET(14X19.2X2) (NAS)
€ 2.50
27
2551005200
ref: 27
25510-05201
SHAFT,GEAR SHIFT
€ 42.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
€ 3.00
29
0944426013
ref: 29
SPRING
€ 3.50
30
2567101000
ref: 30
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
31
0928512002
ref: 31
09285-12006
OIL SEAL
€ 7.00
32
2560005320
ref: 32
LEVER ASSY,GEAR SHIFT
€ 33.50
33
2565216500
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 4.00
34
0110706208
ref: 34
01500-06207
BOLT
€ 2.00
35
0832121068
ref: 35
08321-01067
LOCK WASHER
€ 2.50
36
3772033200
ref: 36
37720-45100
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 92.50
37
0928026003
ref: 37
09280-26005
O-RING (D:2.4 ID:26.2)
€ 2.50
38
0211205208
ref: 38
02112-05207
SCREW 5X20
€ 3.00
39
0832121058
ref: 39
08321-0105A
LOCK WASHER
€ 2.00
40
0832221058
ref: 40
08322-01057
WASHER
€ 2.50
41
0920905011
ref: 41
PIN(5X15.5)
€ 2.00
42
0944004010
ref: 42
SPRING
€ 1.50
