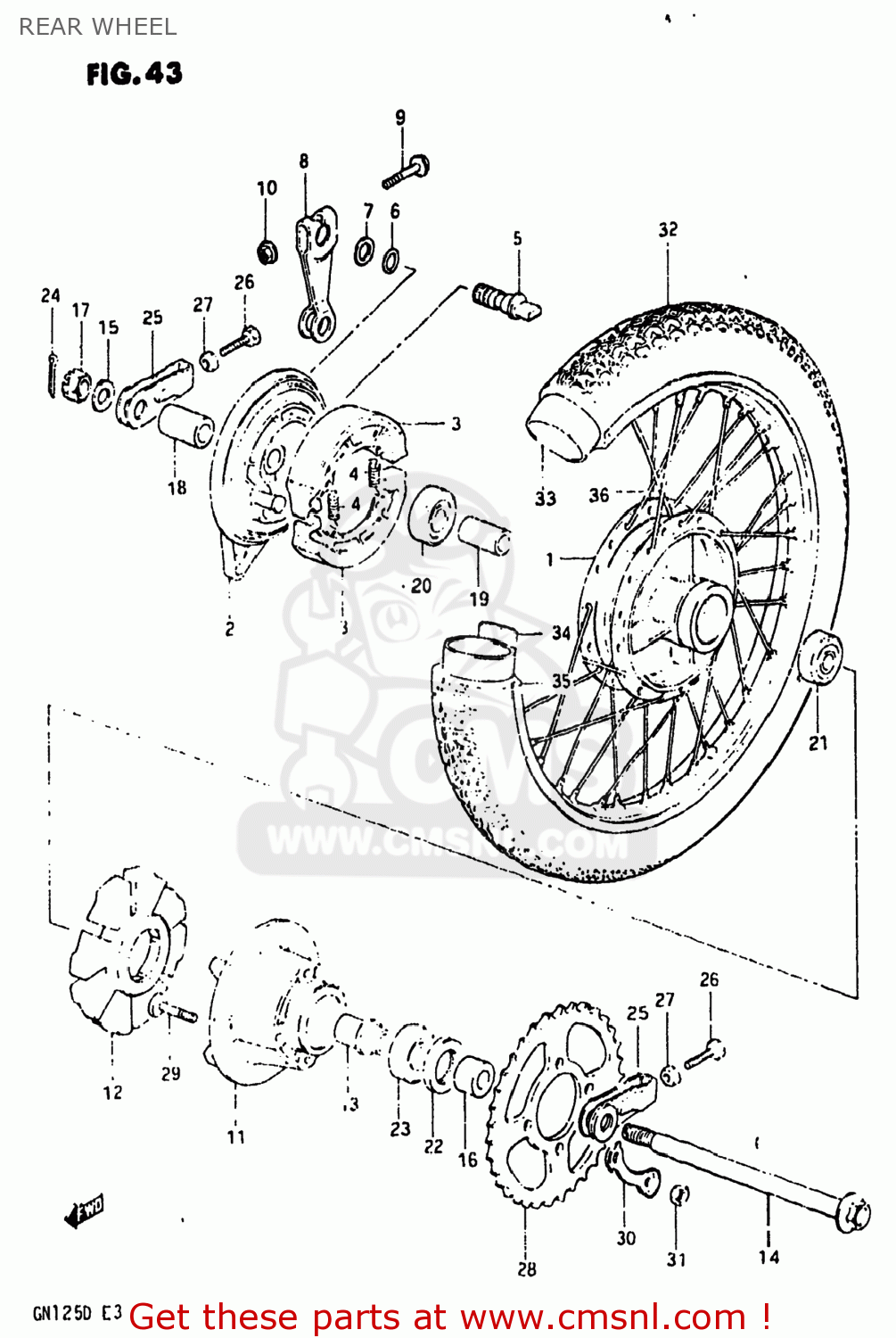

REAR WHEEL

ref

part #

description

quantity

1

6411007603
ref: 1
64110-07604

HUB,REAR WHEEL

€ 149.00

2-1

6421039101
ref: 2-1
64210-39104

PANEL,REAR BRAKE ANCHOR

€ 165.50

2-2

6421039102
ref: 2-2
64210-39104

PANEL,REAR BRAKE ANCHOR

€ 165.50

3

5441007002
ref: 3
54401-07810

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5

5444129303
ref: 5
54441-29305

CAM,FRONT BRAKE

€ 13.00

6

0928014003
ref: 6
09280-14011

O-RING (D:2.4 ID:13.8)

€ 3.50

7

0916014001
ref: 7
09160-14055

WASHER (14.5X22X1.6)

€ 2.50

8

6445148000
ref: 8

LEVER,RR BRAKE CAM

€ 32.50

9

0151706358
ref: 9
01550-06357

BOLT 6X35

€ 2.50

10

0831616068
ref: 10
08319-31067

NUT

€ 2.50

11

6461005300
ref: 11
64610-05301

DRUM,REAR SPROCKET MOUNT

€ 61.00

12

6465107001
ref: 12

ABSORBER ASSY,HUB SHOCK

€ 16.00

13

6473305301
ref: 13

RETAINER,RR SPROCKET DRUM

€ 6.50

14

6471105300
ref: 14
64711-48001

AXLE,REAR

€ 35.50

15

0832211148
ref: 15
08322-01147

WASHER

€ 2.00

16

0918015042
ref: 16

SPACER(15X28X19)

€ 5.50

17

0914114001
ref: 17

NUT

€ 4.50

18

0918015002
ref: 18

SPACER(15.2X26X33)

€ 5.00

19

0918015011
ref: 19

SPACER(15.3X21.7X63)

€ 7.50

20

0814463027
ref: 20

BEARING

€ 17.50

21

0814362027
ref: 21

BEARING

€ 12.50

22

0928528001
ref: 22

SEAL,OIL(28X47X7)

€ 11.50

23

0811362040
ref: 23
09262-20069

Bearing

€ 28.00

24

0411130308
ref: 24
04111-3030A

COTTER PIN

€ 1.50

25

6141036002
ref: 25

ADJUSTER,CHAIN

€ 11.50

26

0910408006
ref: 26
09104-08034

BOLT

€ 3.00

27

0831012088
ref: 27
08310-00087

NUT

€ 2.00

28

6451139300
ref: 28
64511-12B02

SPROCKET,REAR

€ 57.00

29

0911908043
ref: 29

BOLT

€ 2.00

30

0916908012
ref: 30

WASHER

€ 2.00

31

0831012088
ref: 31
08310-00087

NUT

€ 2.00

32

6510005310
ref: 32
65100-05320

TIRE

€ 0.00

33

6520026700
ref: 33

TUBE

€ 29.00

34

5526108010
ref: 34
65261-37300

PROTECTOR,WHEEL,INNER

€ 4.50

35

6531105300
ref: 35

RIM,RR WHEEL(185X16)

€ 91.50

36

6532005300
ref: 36
65320-38301

SPOKE SET,REAR WHEEL

€ 37.00
