FRAME

GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

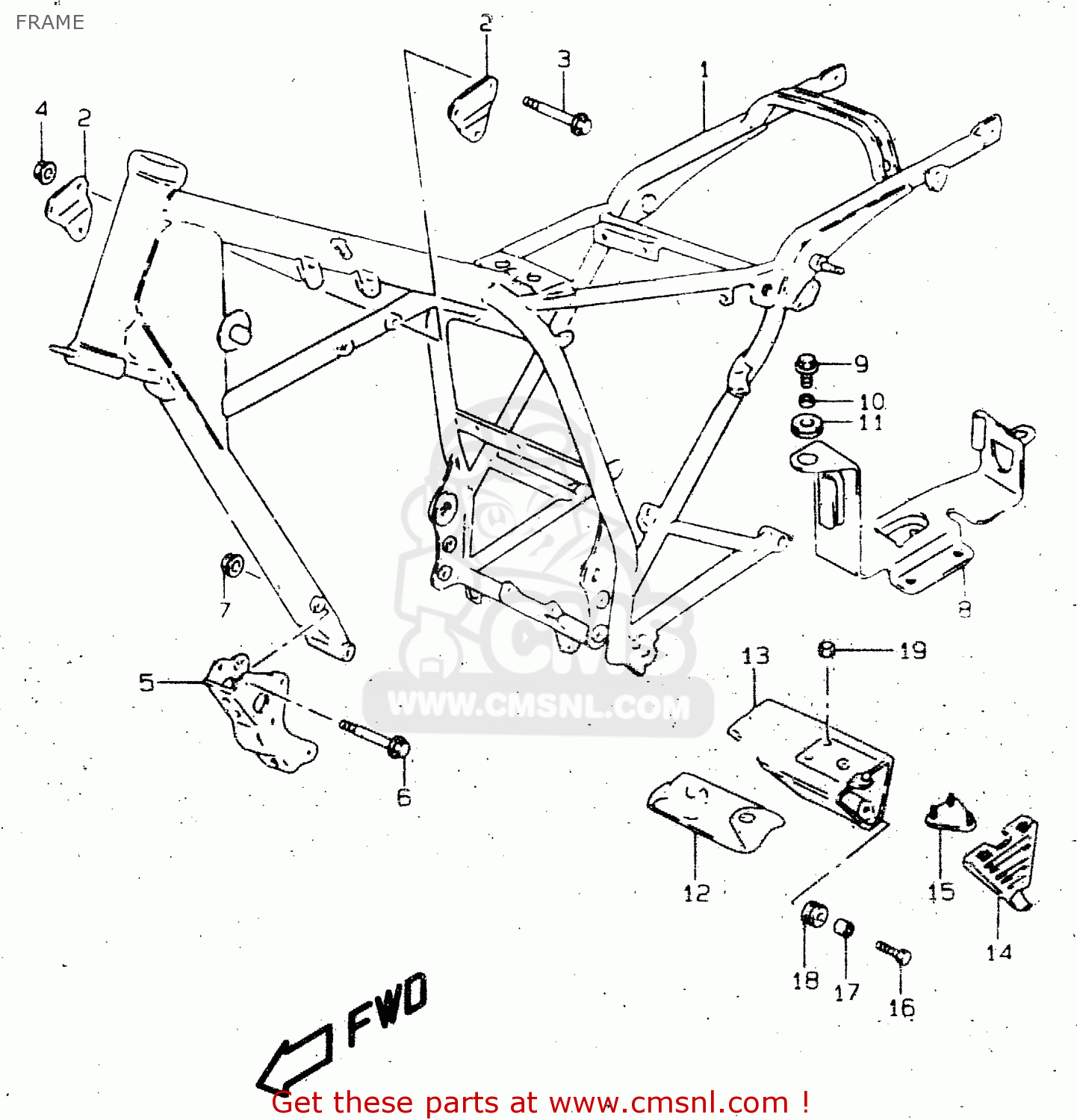

Frame diagram GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

FRAME GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

FRAME GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

1

41100053E0019
ref: 1

FRAME COMP

€ 926.00

1

41100053F0019
ref: 1
E18,E22

FRAME (BLACK)

€ 926.00

2

4199105300
ref: 2

PLATE,ENGINE MOUNTING

€ 3.50

3

0910308081
ref: 3

BOLT(8X50)

€ 3.50

4

0831931087
ref: 4

NUT

€ 2.50

5

4199205300
ref: 5

BRACKET,ENGINE MOUNTING LWR

€ 9.00

6

0155008657
ref: 6

BOLT

€ 3.00

7

0831931087
ref: 7

NUT

€ 2.50

8

4154038301
ref: 8

HOLDER,BATTERY

€ 18.50

9

0911606168
ref: 9

BOLT(6X16)

€ 2.50

10

0918006038
ref: 10

SPACER(6.1X9X7.5)

€ 2.00

11

0932008021
ref: 11

CUSHION

€ 4.00

12

0980021020
ref: 12

TOOL ASSY

€ 33.50

13

4743105300
ref: 13

BOX,TOOL

€ 15.00

14

4743205300
ref: 14

CAP,TOOL BOX

€ 2.50

15

4744005301
ref: 15

PLATE,TOOL HOLDER

€ 3.00

16

0911606168
ref: 16

BOLT(6X16)

€ 2.50

17

0918006038
ref: 17

SPACER(6.1X9X7.5)

€ 2.00

18

0932008021
ref: 18

CUSHION

€ 4.00

19

0831610063
ref: 19

NUT

€ 2.50
