HANDLEBAR - FRONT CABLE

GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

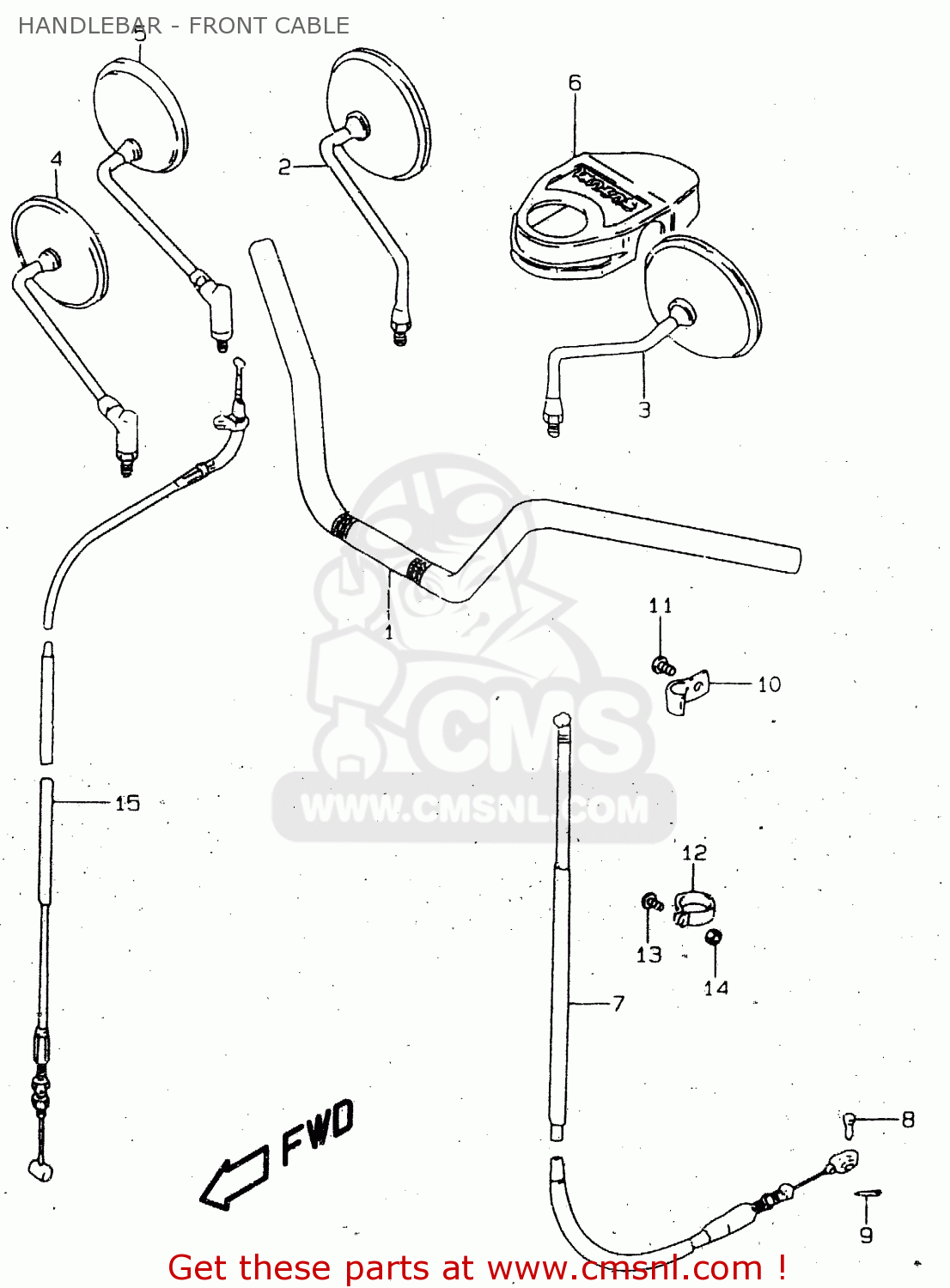

Handlebar - front cable diagram GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

5611005321
ref: 1

HANDLEBAR

€ 185.50

5650044200
ref: 2
E1,E71,P9

MIRROR ASSEMBLY,RIGHT

€ 72.00

5660044200
ref: 3
E1,E71,P9

MIRROR ASSEMBLY,LEFT

€ 72.00

5650045640
ref: 4
E2,E21

MIRROR ASSY,RH

€ 119.50

5650028601
ref: 5
E4,E18,E22

MIRROR ASSY,RH

€ 70.00

5617005300
ref: 6

COVER,STEERING HEAD

€ 11.50

5820005391
ref: 7

CABLE ASSEMBLY,CLUTCH

€ 23.50

0920006004
ref: 8

PIN(L:13)

€ 1.50

0411120158
ref: 9

PIN

€ 1.50

5862637400
ref: 10

CLAMP,CLUTCH CABLE NO.1

€ 8.50

0211216103
ref: 11

SCREW

€ 2.00

5828505351
ref: 12

CLAMP,CLUTCH CABLE

€ 4.00

0211205163
ref: 13

SCREW

€ 2.00

0831000053
ref: 14

NUT

€ 2.50

5830005320
ref: 15

CABLE ASSY,THROTTLE

€ 43.50
