REAR COMBINATION LAMP (E18,E22)

GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

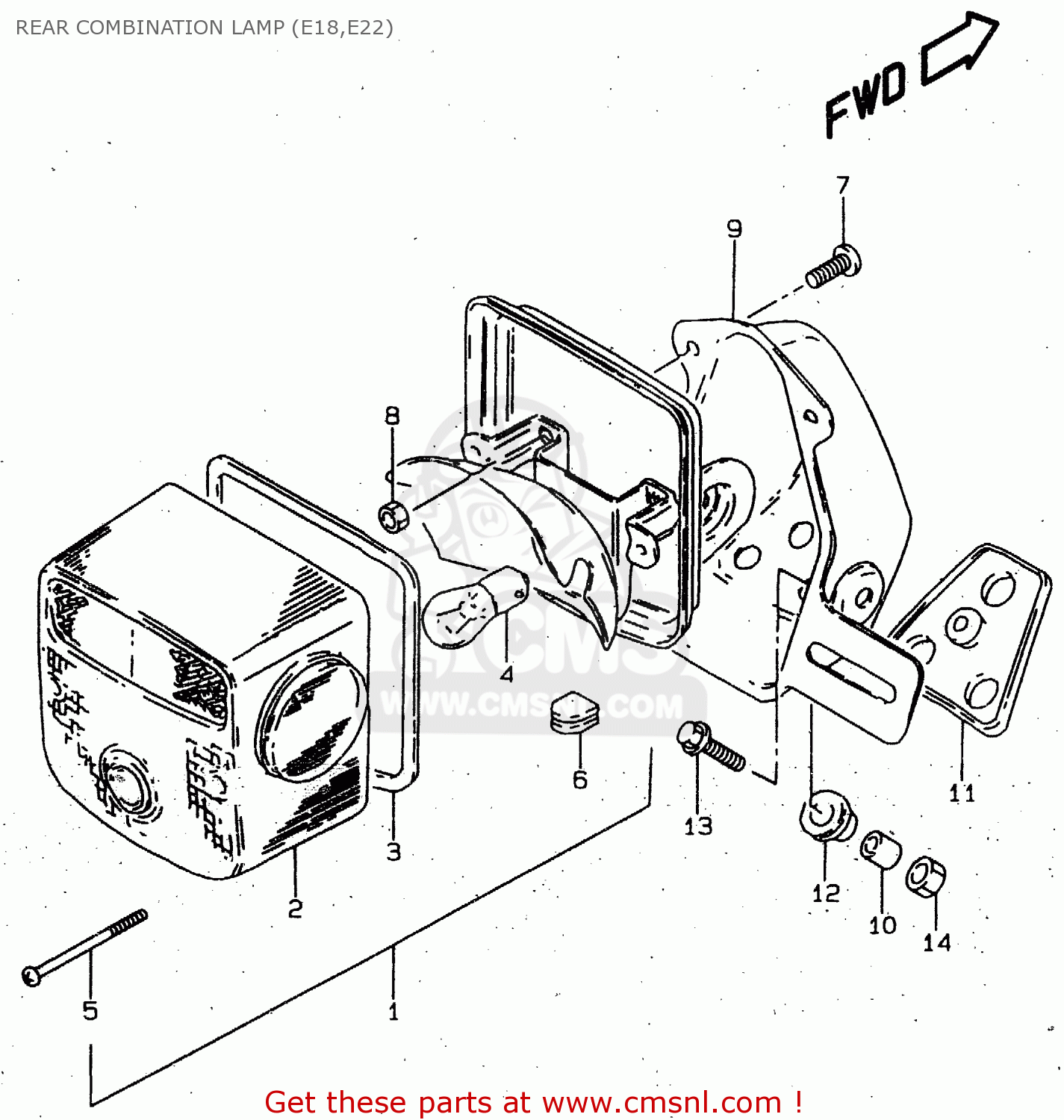

Rear combination lamp (e18,e22) diagram GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

REAR COMBINATION LAMP (E18,E22) GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

REAR COMBINATION LAMP (E18,E22) GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

1

3571038300
ref: 1
REFLEX REFLECTOR:RR0

LAMP ASSY,RR COMBINATION

€ 149.00

2

3571238350
ref: 2

LENS

€ 66.00

3

3571330510
ref: 3

GASKET (NAS)

€ 6.00

4

0947112083
ref: 4

BULB(12V21/5W)

€ 6.00

5

0912504002
ref: 5

SCREW (4X55)

€ 1.50

6

3572830640
ref: 6

GROMMET,REAR COMBINATION LAMP

€ 3.00

7

0211206167
ref: 7

SCREW

€ 2.50

8

0831000067
ref: 8

NUT

€ 2.50

9

3573038380
ref: 9

BRACKET UNIT,TAIL LAMP

€ 51.00

10

3576626470
ref: 10

SPACER

€ 2.00

11

3576526470
ref: 11

CUSHION

€ 10.00

12

3576426470
ref: 12

CUSHION

€ 2.50

13

0911606167
ref: 13

BOLT(6X20)

€ 2.00

14

0831000063
ref: 14

NUT 6MM

€ 2.00
