REAR SHOCK ABSOBER

GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

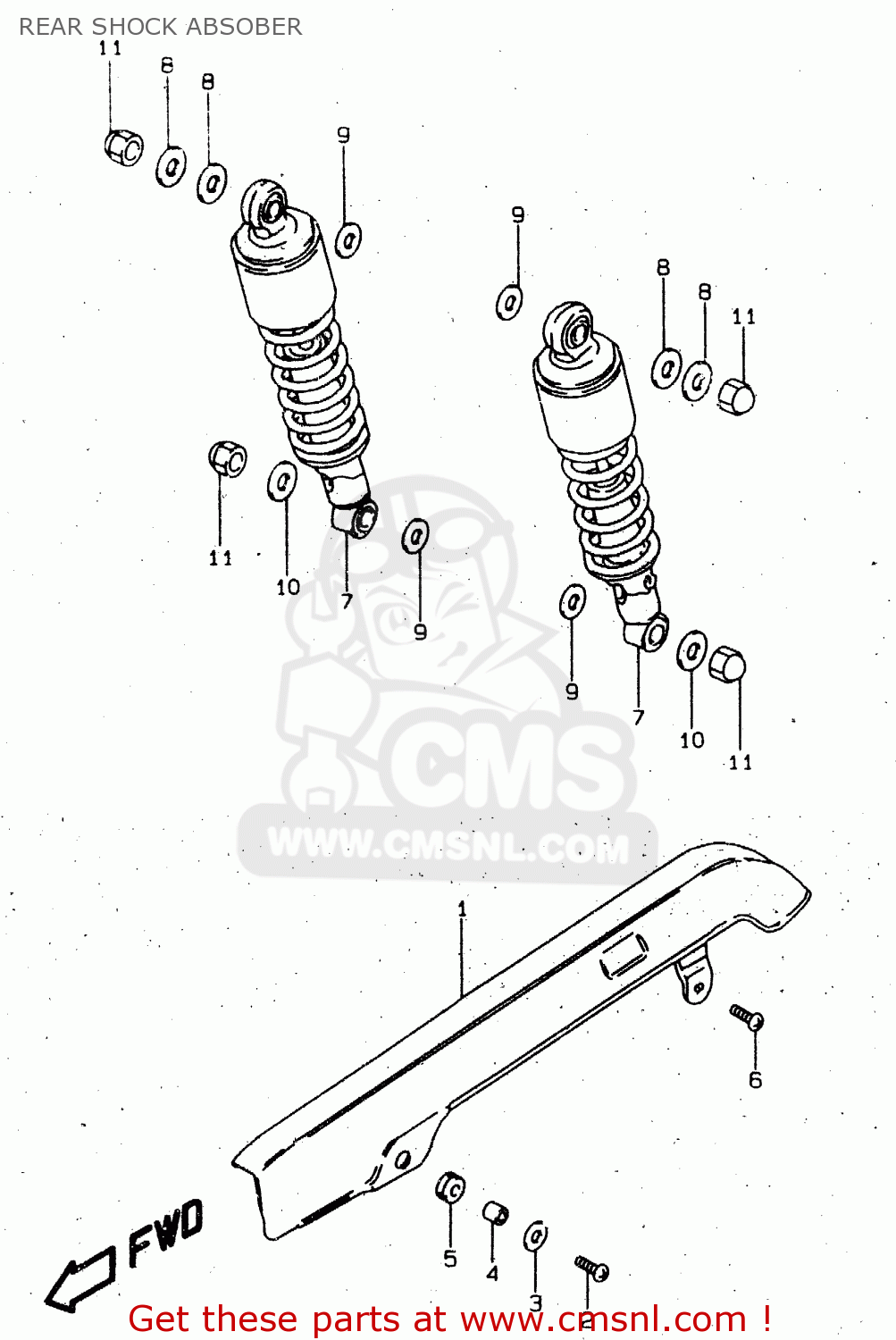

Rear shock absober diagram GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

REAR SHOCK ABSOBER GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

REAR SHOCK ABSOBER GN125 1997 (V) (E01 E02 E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

1

6131005301
ref: 1

CASE,CHAIN

€ 43.50

2

0211236163
ref: 2

SCREW

€ 2.50

3

0916006077
ref: 3

WASHER(6.5X20X1.2)

€ 2.00

4

0918006259
ref: 4

SPACER(6.5X9X7)

€ 2.50

5

0932008021
ref: 5

CUSHION

€ 4.00

6

0211236163
ref: 6

SCREW

€ 2.50

7

6210005330
ref: 7

ABSORBER ASSY,RR SHOCK

€ 178.00

8

0916010127
ref: 8
E2,E4,E21,E71,P9, GN

WASHER (10.5X24X2.3)

€ 2.00

8

0916010127
ref: 8
E18,E22,E30, GN125EV

WASHER (10.5X24X2.3)

€ 2.00

9

0916012090
ref: 9

WASHER (12.5X26X1.6)

€ 2.00

10

0916010127
ref: 10

WASHER (10.5X24X2.3)

€ 2.00

11

0831310107
ref: 11

NUT

€ 2.50
