GN125E 1983 (D) SINGAPORE (E30)

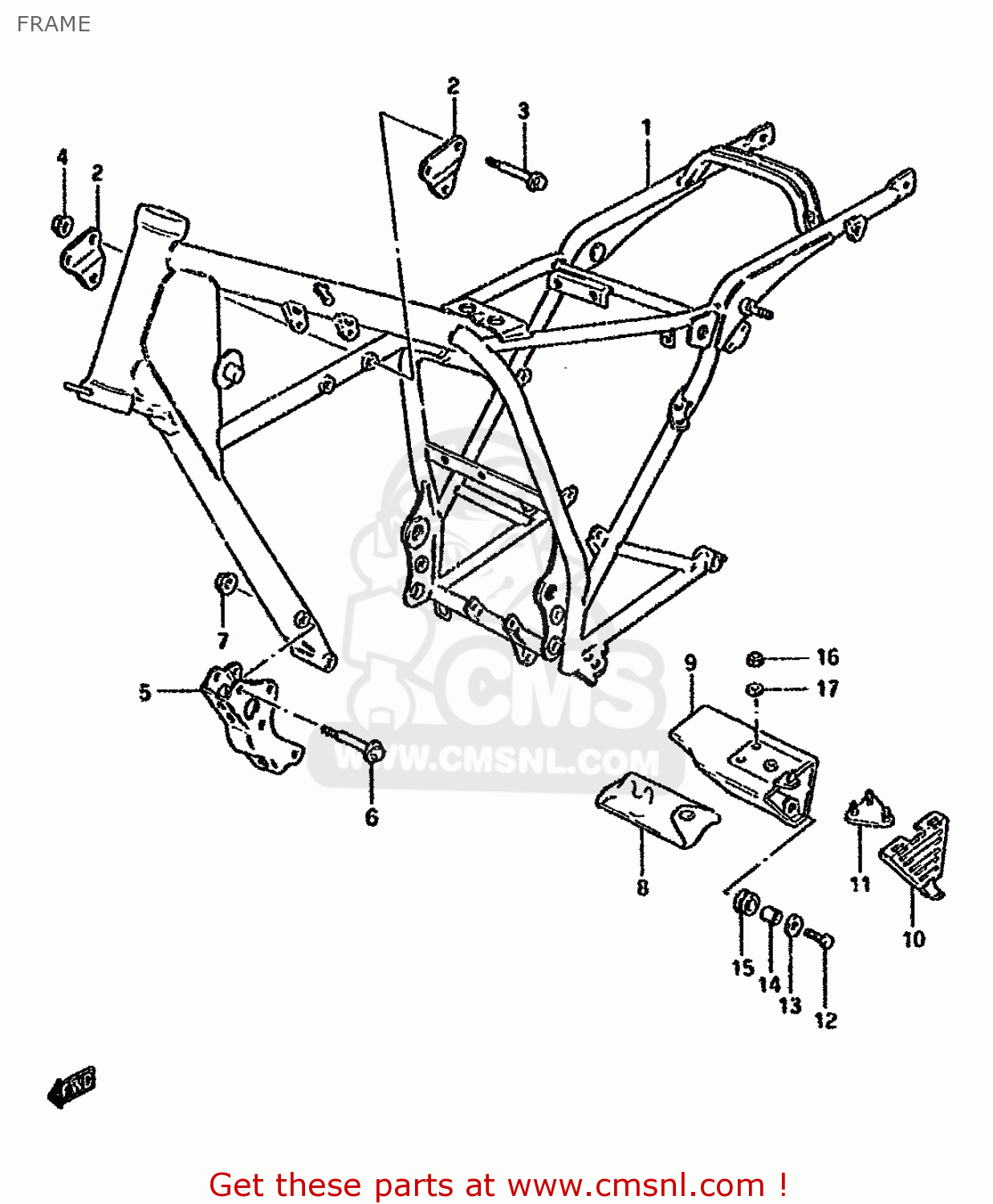

Frame diagram GN125E 1983 (D) SINGAPORE (E30)
FRAME GN125E 1983 (D) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110005300019
ref: 1-1
FRAME
€ 887.00
1-2
4110005300019
ref: 1-2
E2,F.NO.177835~
FRAME
€ 887.00
1-3
4110005320019
ref: 1-3
E18
FRAME (BLACK)
€ 414.00
1-4
41100053C0019
ref: 1-4
E22
FRAME (BLACK)
€ 887.00
1-5
4110005391019
ref: 1-5
MODEL N/R E30
FRAME
€ 332.00
2
4199105300
ref: 2
PLATE,ENGINE MOUNTING
€ 3.50
3-1
0151708508
ref: 3-1
MODEL Z/D
BOLT
€ 3.50
3-2
0910308081
ref: 3-2
MODEL K/M/N/R
BOLT(8X50)
€ 3.50
4
0831931087
ref: 4
NUT
€ 2.50
5
4199205300
ref: 5
BRACKET,ENGINE MOUNTING LWR
€ 9.00
6-1
0151708658
ref: 6-1
MODEL Z/D/K/M/N
BOLT 8X65
€ 3.00
6-2
0155008657
ref: 6-2
MODEL R
BOLT
€ 3.00
7
0831931087
ref: 7
NUT
€ 2.50
8-1
0980000245
ref: 8-1
MODEL Z/D/K/M/N
TOOL SET
€ 33.00
8-2
0980021020
ref: 8-2
MODEL R
TOOL ASSY
€ 33.50
9
4743105300
ref: 9
BOX,TOOL
€ 15.00
10
4743205300
ref: 10
CAP,TOOL BOX
€ 2.50
11-1
4744005300
ref: 11-1
MODEL Z
PLATE,TOOL HOLDER
€ 3.00
11-2
4744005301
ref: 11-2
MODEL D/K/M/N/R
PLATE,TOOL HOLDER
€ 3.00
12-1
0110706167
ref: 12-1
MODEL Z/D/K
BOLT
€ 3.00
12-2
0911606168
ref: 12-2
MODEL M/N/R
BOLT(6X16)
€ 2.50
13
0916006027
ref: 13
MODEL Z/D/K
WASHER (6.5X20X1.2)
€ 2.00
14
0918006038
ref: 14
SPACER(6.1X9X7.5)
€ 2.00
15
0932008021
ref: 15
MODEL R
CUSHION
€ 4.00
16-1
0831011067
ref: 16-1
MODEL Z/D/K/M/N
NUT 6MM
€ 2.50
16-2
0831610063
ref: 16-2
MODEL R
NUT
€ 2.50
17
0832221067
ref: 17
MODEL Z/D/K/M/N
WASHER
€ 2.00
