FRONT WHEEL (GN125Z/D/K/M/R)
GN125E 1983 (D) SINGAPORE (E30)

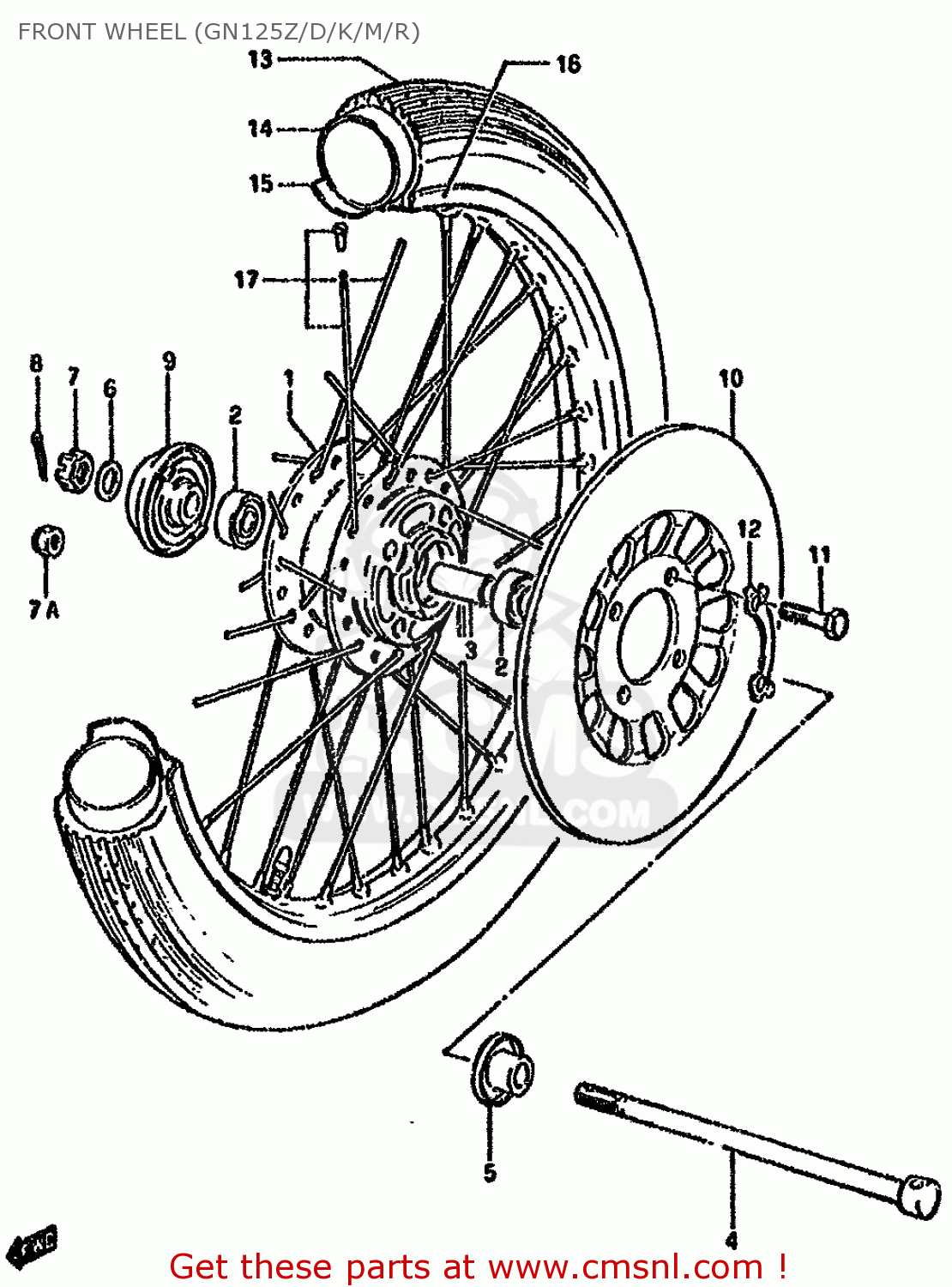

Front wheel (gn125z/d/k/m/r) diagram GN125E 1983 (D) SINGAPORE (E30)
FRONT WHEEL (GN125Z/D/K/M/R) GN125E 1983 (D) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1-1
5411136202
ref: 1-1
~F.NO.179060
HUB,FRONT
€ 503.50
1-2
5411136210
ref: 1-2
F.NO.179061~
HUB,FR WHEEL
€ 503.50
2
0812363017
ref: 2
BEARING
€ 13.50
3
0918012041
ref: 3
SPACER (12.6X19X52)
€ 4.50
4-1
5471141100
ref: 4-1
-54711-41101
AXLE,FRONT
€ 42.00
4-2
5471141101
ref: 4-2
AXLE,FR
€ 42.00
4-3
5471105300
ref: 4-3
E22
AXLE,FR
€ 21.50
5
5474011300
ref: 5
SPACER,FR AXLE,L
€ 13.50
6-1
0832211128
ref: 6-1
MODEL Z/D/K/M E1,E2,
WASHER
€ 2.00
6-2
0832201127
ref: 6-2
MODEL R E1,E2,E4,E18
WASHER
€ 2.00
7-1
0831431128
ref: 7-1
MODEL Z/D/K/M E1,E2,
NUT 12MM
€ 2.00
7-2
0914112003
ref: 7-2
MODEL R E1,E2,E4,E18
NUT
€ 4.50
7A
0831931128
ref: 7A
E22
NUT 12MM
€ 4.00
8
0411130308
ref: 8
E1,E2,E4,E18,E21,E34
COTTER PIN
€ 1.50
9
5460036400
ref: 9
BOX ASSY,SPEEDOMETER GEAR
€ 60.00
10
5921113001
ref: 10
DISC,FR BRAKE
€ 186.50
11-1
0910008094
ref: 11-1
MODEL Z/D/K/M
BOLT(8X30)
€ 2.50
11-2
0910008140
ref: 11-2
MODEL R
BOLT(8X25)
€ 2.00
12
0916908019
ref: 12
WASHER
€ 2.00
13-1
5510039310
ref: 13-1
MODEL Z/D/K
TIRE,FRONT
€ 201.00
13-2
5510039320
ref: 13-2
MODEL M/R-55100-12B0
TIRE,FRONT
€ 201.00
13-3
5510012B00
ref: 13-3
TIRE,FR(2.75-18)
€ 201.00
14
5520011601
ref: 14
TUBE,INNER
€ 24.50
15
5526111010
ref: 15
PROTECTOR,INNER TUBE
€ 3.50
16-1
5531136321
ref: 16-1
MODEL Z/D
RIM,FRONT WHEEL
€ 98.50
16-2
5531118420
ref: 16-2
MODEL K/M/R
RIM,FR WHEEL
€ 98.50
17
5532036221
ref: 17
SPOKE ASSY,FR
€ 33.50
