SPEEDOMETER-TACHOMETER (E30)
GN125E 1983 (D) SINGAPORE (E30)

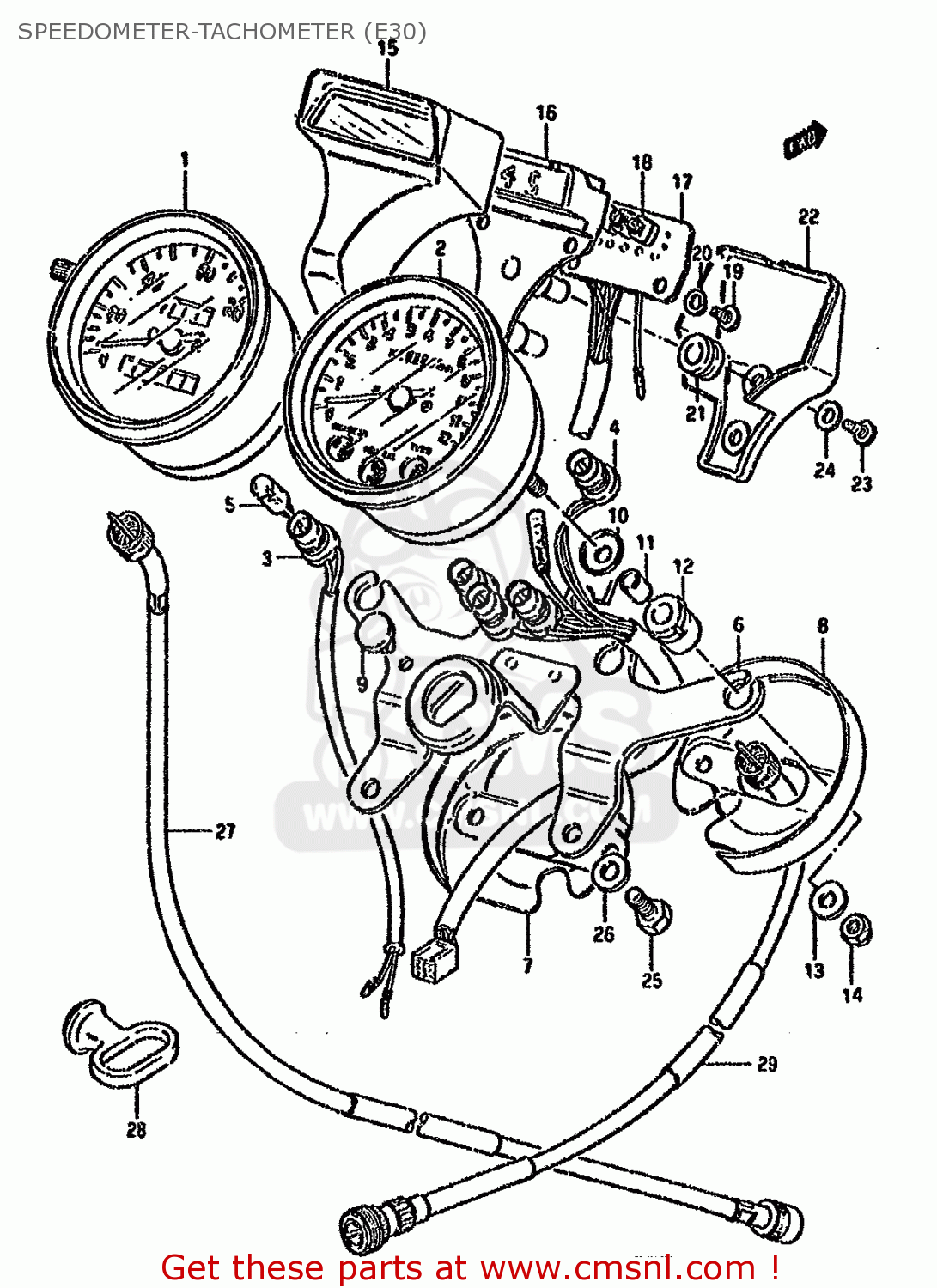

Speedometer-tachometer (e30) diagram GN125E 1983 (D) SINGAPORE (E30)
SPEEDOMETER-TACHOMETER (E30) GN125E 1983 (D) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411005300
ref: 1-1
SPEEDOMETER(KILO)
€ 251.50
1-2
3411005310
ref: 1-2
METER,SPEED (KM/MPH)
€ 222.50
2
3421005320
ref: 2
TACHOMETER
€ 211.50
3
3417305300
ref: 3
SOCKET,SPEEDOMETER
€ 11.50
4
3427305320
ref: 4
SOCKET,TACHOMETER
€ 27.50
5
0947112082
ref: 5
BULB(12V3.4W,T10,BF175-01450A)
€ 3.50
6
3495005320
ref: 6
BRACKET,METER
€ 27.00
7
3419305300
ref: 7
UNDER COVER,SPEEDOMETER
€ 13.00
8
3429305300
ref: 8
UNDER COVER,TACHOMETER
€ 12.50
9
3495628011
ref: 9
CUSHION,METER
€ 5.50
10
3496836010
ref: 10
WASHER
€ 1.50
11
3418728310
ref: 11
SPACER,SPEEDOMETER
€ 2.00
12
3418928310
ref: 12
CUSHION,METER
€ 2.50
13
3418105300
ref: 13
WASHER,METER
€ 1.50
14
0831311057
ref: 14
NUT
€ 1.50
15
3638005320
ref: 15
PILOT BOX
€ 23.50
16
3638105320
ref: 16
CASE,PILOT BOX
€ 19.50
17
3645305320
ref: 17
INDICATOR,GEAR POSITION
€ 30.50
18
0947112071
ref: 18
BULB(14V1.12W)
€ 5.00
19
0211204128
ref: 19
SCREW
€ 1.50
20
0832121047
ref: 20
WASHER,LOCK 4M
€ 2.00
21
3495528010
ref: 21
CUSHION
€ 4.00
22
3638305320
ref: 22
COVER,LWR
€ 13.50
23
0311204165
ref: 23
SCREW 4X16
€ 2.00
24
0832221045
ref: 24
WASHER
€ 5.00
25
0110706167
ref: 25
BOLT
€ 3.00
26
0832221067
ref: 26
WASHER
€ 2.00
27-1
3491005310
ref: 27-1
FOR SPOKE WHEEL
CABLE ASSY,SPEEDOMETER
€ 41.00
27-2
3491026421
ref: 27-2
FOR CAST WHEEL,-3491
CABLE ASSY,SPEEDOMETER
€ 41.00
28
5862121203A
ref: 28
GUIDE,CABLE
€ 7.50
29
3494005300
ref: 29
CABLE ASSY,TACHOMETER
€ 44.00
