OIL PUMP
GN125E 1983 (D) SINGAPORE (E30)

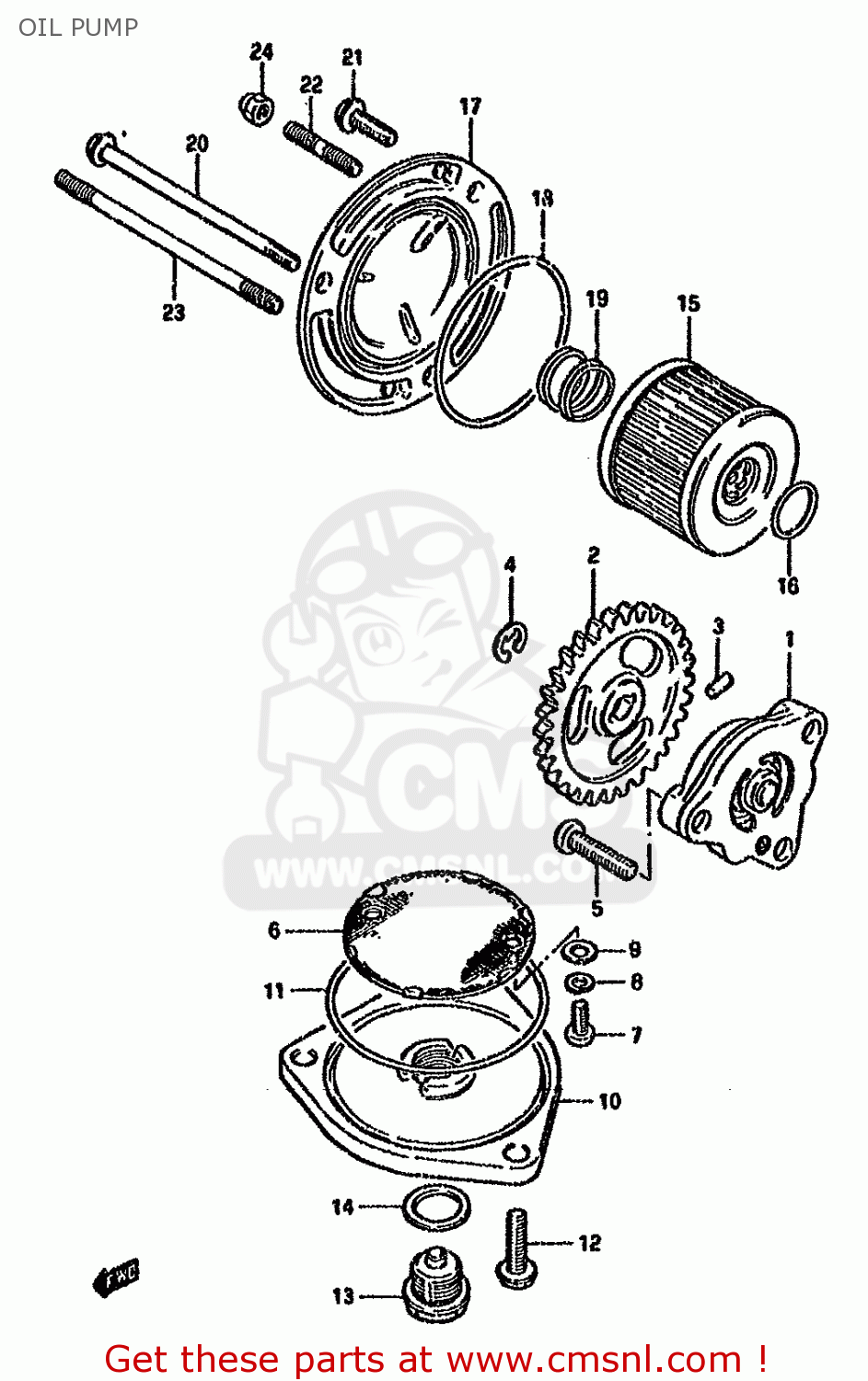

Oil pump diagram GN125E 1983 (D) SINGAPORE (E30)
OIL PUMP GN125E 1983 (D) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1
1640005201
ref: 1
PUMP ASSY,ENGINE OIL
€ 93.00
2
1633105200
ref: 2
GEAR,ENG OIL PUMP DRIVEN(NT:30
€ 21.00
3
0926102008
ref: 3
PIN(2.5X11.8)
€ 1.50
4
0833211063
ref: 4
E.RING
€ 2.00
5
0211206256
ref: 5
SCREW
€ 1.50
6
1652005202
ref: 6
STRAINER,ENGINE OIL
€ 4.50
7
0211205126
ref: 7
SCREW 5X12
€ 1.50
8
0832121056
ref: 8
LOCK WASHER
€ 3.00
9
0832221056
ref: 9
WASHER
€ 2.50
10
1652305200
ref: 10
CAP,OIL STRAINER
€ 9.00
11
0928060005
ref: 11
O RING(D:2.4,ID:60.5)
€ 3.00
12
0154706207
ref: 12
BOLT
€ 2.50
13-1
0924714001
ref: 13-1
PLUG
€ 5.00
13-2
0924714026
ref: 13-2
MODEL N/R:E30
PLUG(14X12)
€ 3.50
14
0916814002
ref: 14
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
15
1651005240
ref: 15
FILTER ASSY,ENGINE OIL
€ 8.50
16
0928013004
ref: 16
O RING(D:1.9,ID:13)
€ 2.50
17-1
1651205211
ref: 17-1
MODEL Z/D/K/M
CAP,OIL FILTER
€ 15.00
17-2
1651205212
ref: 17-2
MODEL N/R
CAP,OIL FILTER
€ 15.00
18
0928054001
ref: 18
O RING(D:2.4,ID:52.6)
€ 4.00
19-1
4828185000
ref: 19-1
MODEL Z/D/K/M
SPRING
€ 1.50
19-2
0944018002
ref: 19-2
MODEL N/R
SPRING
€ 1.50
20
0154706907
ref: 20
BOLT
€ 3.00
21
0154706207
ref: 21
BOLT
€ 2.50
22
0142106128
ref: 22
STUD 6X12
€ 1.50
23
0142106858
ref: 23
STUD BOLT, 6X8
€ 2.50
24
0831310067
ref: 24
NUT
€ 2.00
