REAR COMBINATION (MODEL N/R E30)

GN125E 1983 (D) SINGAPORE (E30)

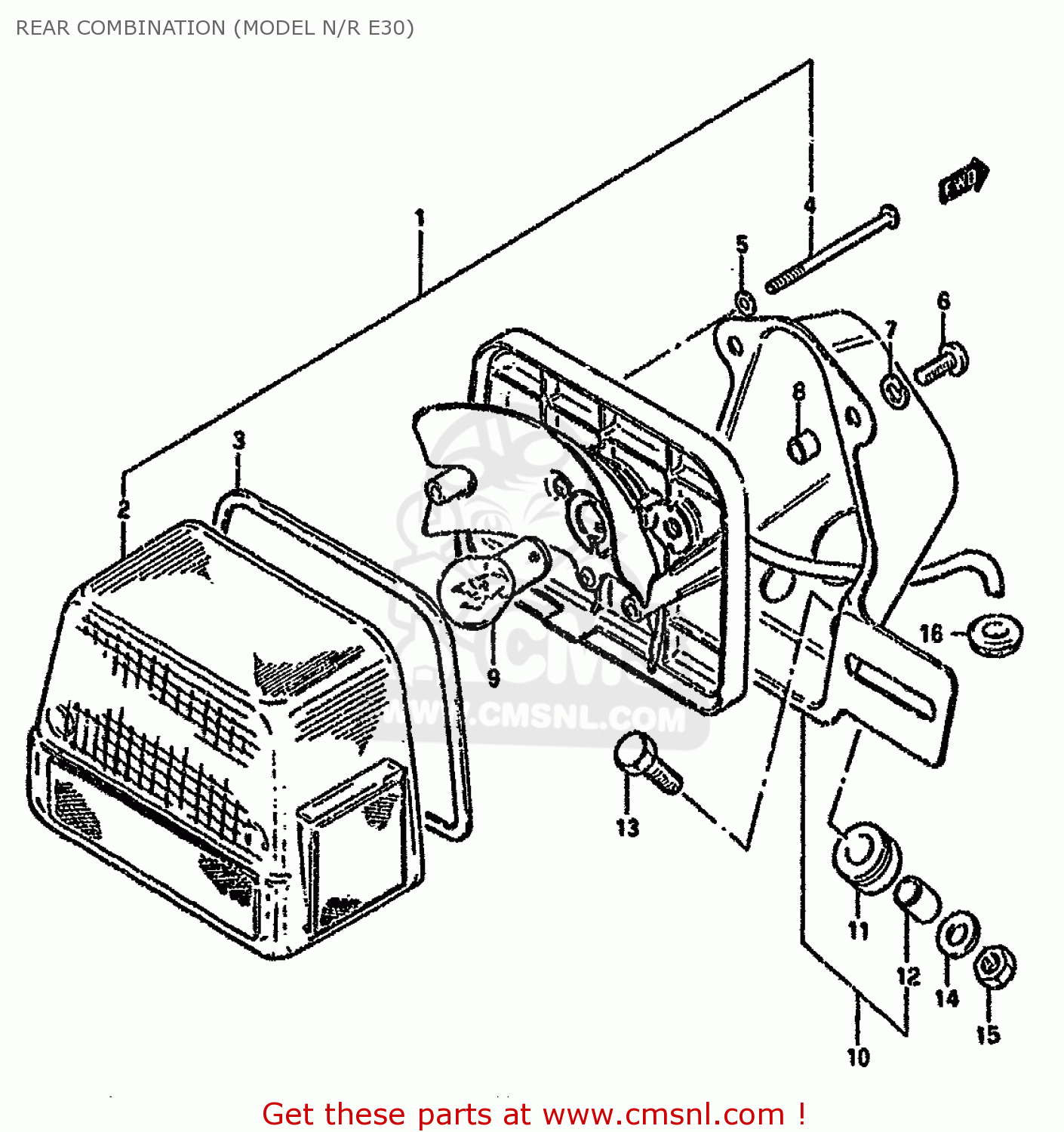

Rear combination (model n/r e30) diagram GN125E 1983 (D) SINGAPORE (E30)

REAR COMBINATION (MODEL N/R E30) GN125E 1983 (D) SINGAPORE (E30)
REAR COMBINATION (MODEL N/R E30) GN125E 1983 (D) SINGAPORE (E30)
REAR COMBINATION (MODEL N/R E30) GN125E 1983 (D) SINGAPORE (E30)
prices are in EUR
ref
part #
description
quantity
1
3572038330
ref: 1
LAMP UNIT,REAR COMBINATION
€ 88.00
2
3571249130
ref: 2
LENS
3571249130
€ 49.00
3
3571349130
ref: 3
GASKET (NAS)
3571349130
€ 5.50
4
3572344130
ref: 4
SCREW
3572344130
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0211205168
ref: 6
SCREW
0211205168
€ 2.50
7
0832121057
ref: 7
LOCK WASHER
0832121057
€ 2.00
8
3576639210
ref: 8
SPACER
€ 0.00
9
0947112035
ref: 9
BULB(12V23W)
0947112035
€ 5.50
10
3573049130
ref: 10
BRACKET UNIT,TAIL LAMP
€ 0.00
11
3576522210
ref: 11
CUSHION
3576522210
€ 4.00
12
3576637120
ref: 12
SPACER
3576637120
€ 2.50
13
0911606047
ref: 13
BOLT(6X25)
€ 2.00
14
0832221066
ref: 14
WASHER, LOWER
0832221066
€ 2.00
15
0831012066
ref: 15
NUT
0831012066
€ 2.00
16
0930809004
ref: 16
GROMMET
€ 0.00
14-2
0110706207
ref: 14-2
MODEL K
BOLT
0110706207
€ 2.00
15
0916006027
ref: 15
WASHER (6.5X20X1.2)
0916006027
€ 2.00
16
0832221067
ref: 16
WASHER
0832221067
€ 2.00
17
0831011067
ref: 17
NUT 6MM
€ 2.50
18
0930809004
ref: 18
GROMMET
€ 0.00
