FRONT WHEEL (GN125EZ/ED/EK/EM/EN/ER E30)

GN125E 1992 (N) SINGAPORE (E30)

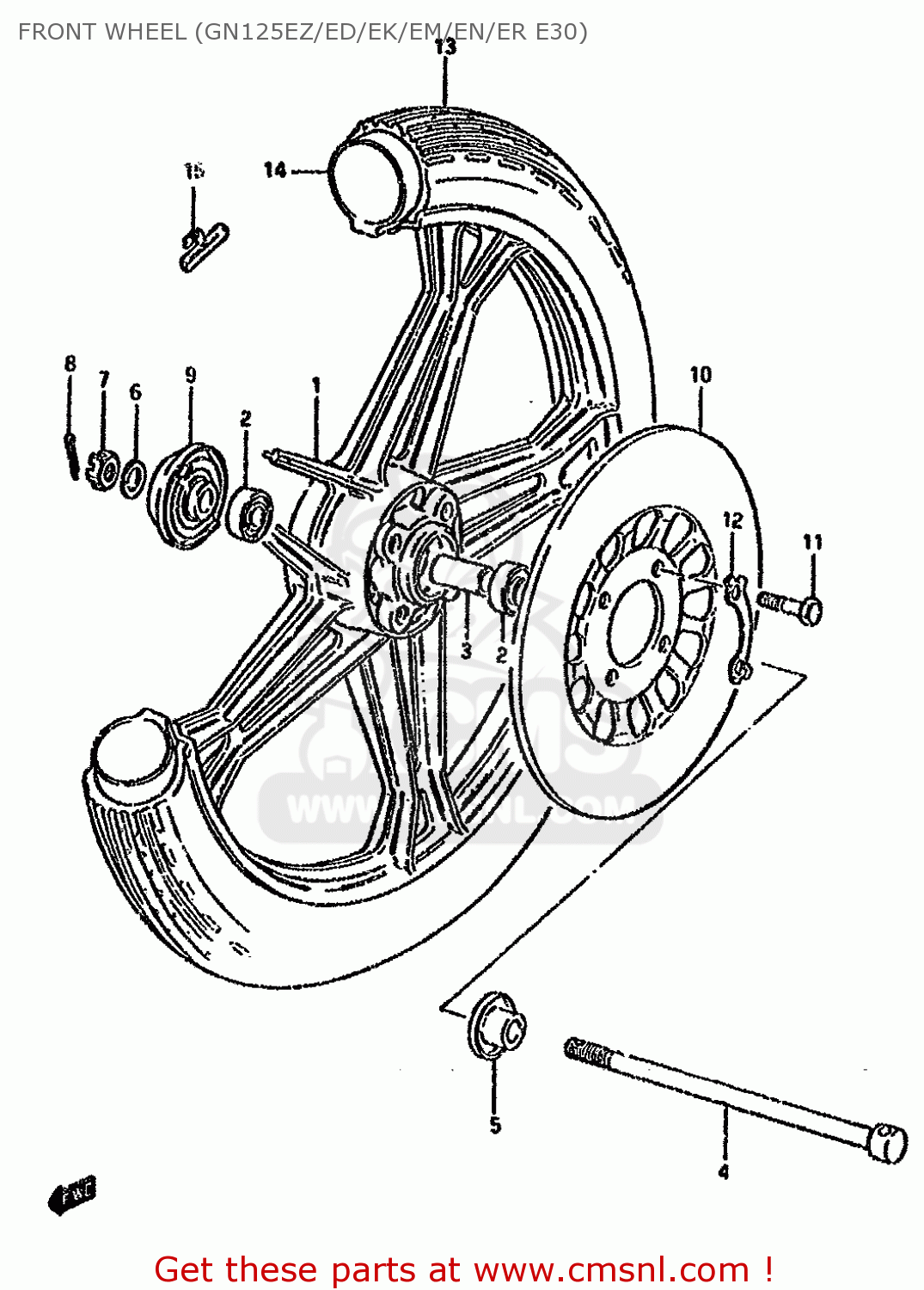

Front wheel (gn125ez/ed/ek/em/en/er e30) diagram GN125E 1992 (N) SINGAPORE (E30)

FRONT WHEEL (GN125EZ/ED/EK/EM/EN/ER E30) GN125E 1992 (N) SINGAPORE (E30)
FRONT WHEEL (GN125EZ/ED/EK/EM/EN/ER E30) GN125E 1992 (N) SINGAPORE (E30)
FRONT WHEEL (GN125EZ/ED/EK/EM/EN/ER E30) GN125E 1992 (N) SINGAPORE (E30)
prices are in EUR
ref
part #
description
quantity
1-1
541110530012V
ref: 1-1
MODEL Z/D/K
CASTING WHEEL,FRONT 1.60
€ 0.00
1-2
5411105300291
ref: 1-2
MODEL M/N/R
WHEEL,FR(1.60X18)
€ 452.50
2
0812363017
ref: 2
BEARING
0812363017
€ 13.50
3
0918012041
ref: 3
SPACER (12.6X19X52)
0918012041
€ 4.50
4-1
5471141100
ref: 4-1
MODEL Z/D/K/M/N
AXLE,FRONT
€ 42.00
4-2
5471141101
ref: 4-2
MODEL R
AXLE,FR
5471141101
€ 42.00
5
5474011300
ref: 5
SPACER,FR AXLE,L
5474011300
€ 13.50
6-1
0832211128
ref: 6-1
MODEL Z/D/K/M/N
WASHER
0832211128
€ 2.00
6-2
0832201127
ref: 6-2
MODEL R
WASHER
0832201127
€ 2.00
7-1
0831431128
ref: 7-1
MODEL Z/D/K/M/N
NUT 12MM
0831431128
€ 2.00
7-2
0914112003
ref: 7-2
MODEL R
NUT
0914112003
€ 4.50
8
0411130308
ref: 8
COTTER PIN
0411130308
€ 1.50
9
5460036400
ref: 9
BOX ASSY,SPEEDOMETER GEAR
5460036400
€ 60.00
10
5921113001
ref: 10
DISC,FR BRAKE
5921113001
€ 186.50
11-1
0910008094
ref: 11-1
MODEL Z/D/K/M/N
BOLT(8X30)
0910008094
€ 2.50
11-2
0910008140
ref: 11-2
MODEL R
BOLT(8X25)
0910008140
€ 2.00
12
0916908019
ref: 12
WASHER
0916908019
€ 2.00
13-1
5510039300
ref: 13-1
MODEL Z/D
TIRE,FRONT 2.75-18 (IRC)
€ 201.00
13-2
5510039310
ref: 13-2
MODEL K
TIRE,FRONT
€ 201.00
13-3
5510039320
ref: 13-3
MODEL M/N/R-55100-12
TIRE,FRONT
€ 201.00
13-4
5510012B00
ref: 13-4
TIRE,FR(2.75-18)
€ 201.00
14
5520011601
ref: 14
TUBE,INNER
€ 24.50
15-1
5541147001
ref: 15-1
BALANCER,WHEEL
5541147001
€ 4.00
15-2
5541247001
ref: 15-2
BALANCER,WHEEL
5541247001
€ 3.50
15-3
5541347001
ref: 15-3
BALANCER,WHEEL (10G)
5541347001
€ 6.50
