STARTING MOTOR (MODEL M/N/R)
GN125E 1992 (N) SINGAPORE (E30)

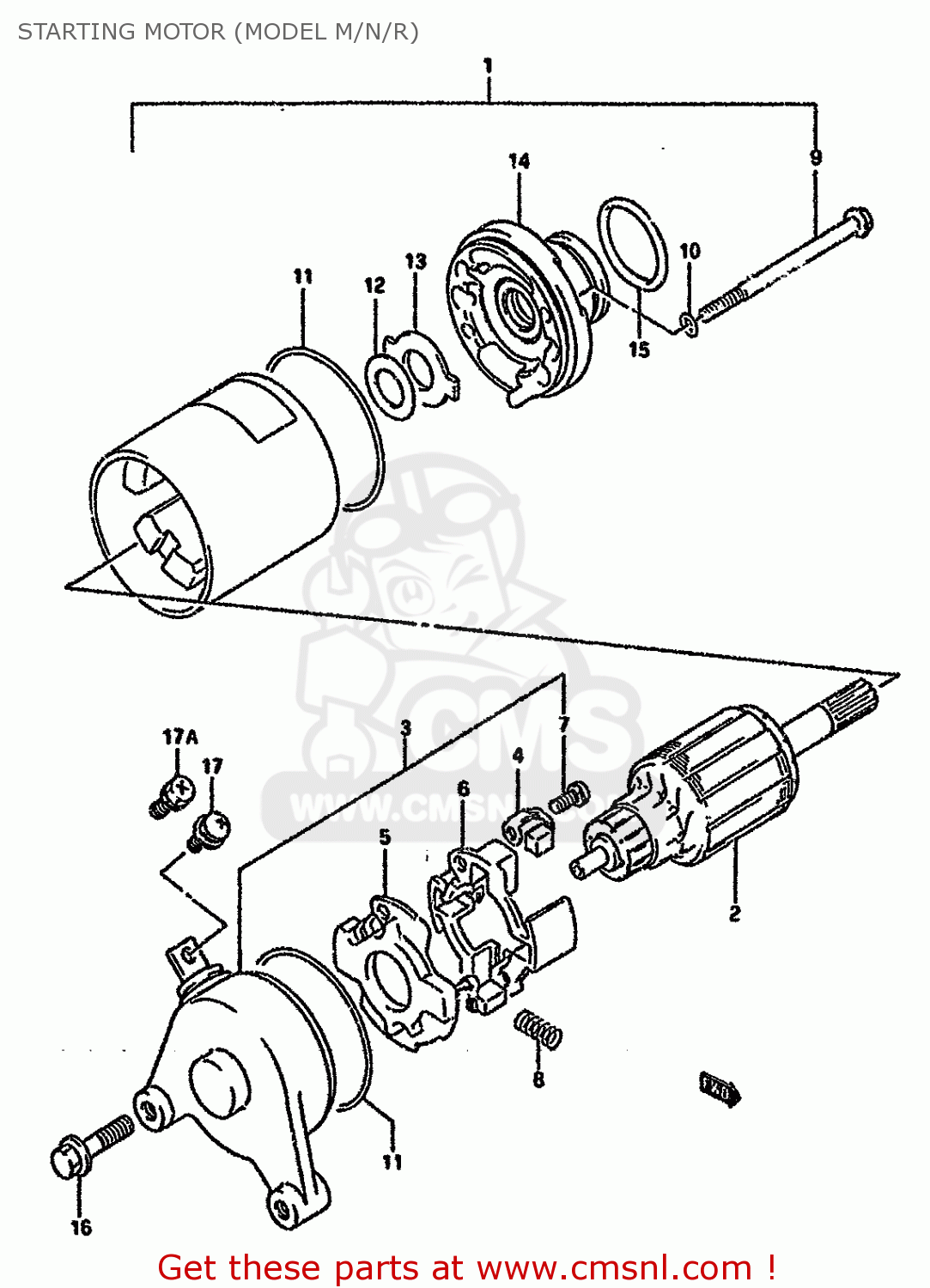

Starting motor (model m/n/r) diagram GN125E 1992 (N) SINGAPORE (E30)
STARTING MOTOR (MODEL M/N/R) GN125E 1992 (N) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1-1
3110005320
ref: 1-1
MODEL M/N
MOTOR ASSEMBLY,STARTING
€ 899.00
1-2
3110005500
ref: 1-2
MODEL R
MOTOR ASSEMBLY,STARTING
€ 899.00
2
3131011D00
ref: 2
ARMATURE
€ 265.50
3-1
3117505320
ref: 3-1
MODEL M/N
FRAME ASSEMBLY,COMMUTATOR
€ 66.50
3-2
3117529B00
ref: 3-2
MODEL R
FRAME ASSEMBLY,COMMUTATOR
€ 66.50
4
3113232C10
ref: 4
BRUSH
€ 14.50
5
3113032C20
ref: 5
BRUSH SUB ASSY,STARTER
€ 28.00
6
3113332C10
ref: 6
HOLDER,BRUSH
€ 9.00
7
0211234123
ref: 7
SCREW
€ 2.00
8
3113532C10
ref: 8
SPRING
€ 3.50
9
3128132C10
ref: 9
BOLT
€ 8.50
10
3115638300
ref: 10
O RING
€ 3.00
11
3126432C10
ref: 11
O RING
€ 9.00
12
3136138300
ref: 12
SHIM
€ 1.50
13
3136132C10
ref: 13
PLATE,LOCK
€ 2.50
14-1
3115032C10
ref: 14-1
MODEL M/N
BRACKET
€ 112.00
14-2
3115006C00
ref: 14-2
MODEL R
BRACKET
€ 112.00
15
0928024003
ref: 15
O RING(D:3,ID:24.5)
€ 2.00
16
0154706357
ref: 16
BOLT
€ 2.50
17
0211275087
ref: 17
MODEL M
SCREW
€ 0.00
17A
0913705004
ref: 17A
MODEL N/R
SCREW(5X8)
€ 2.00
21
0832121067
ref: 21
WASHER,LOCK
€ 2.50
22
0916006003
ref: 22
WASHER (6.7X16X1.8)
€ 2.00
23
0928024003
ref: 23
O RING(D:3,ID:24.5)
€ 2.00
24
0154706307
ref: 24
BOLT
€ 2.50
