MUFFLER

GN125E 1992 (N) SINGAPORE (E30)

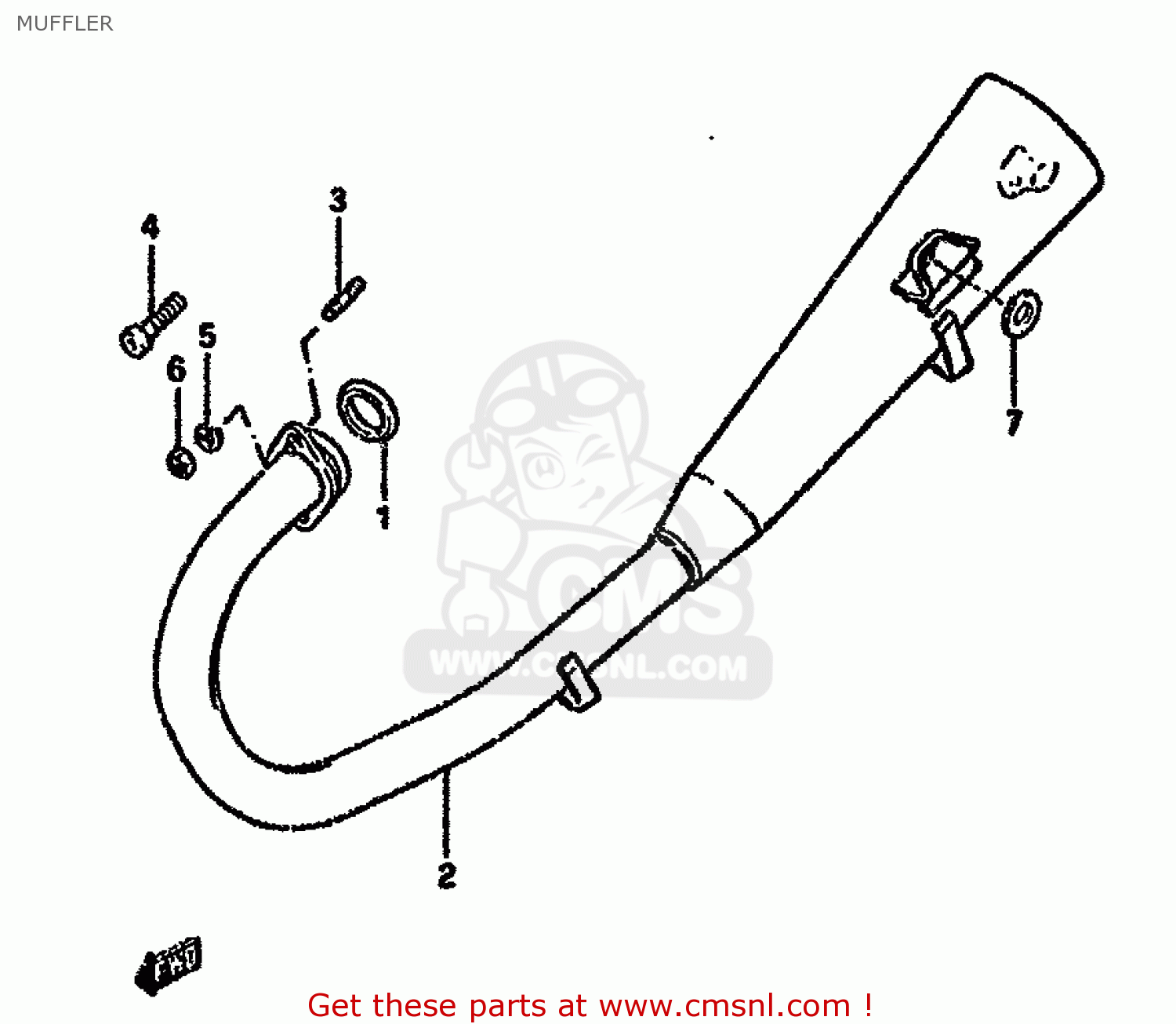

Muffler diagram GN125E 1992 (N) SINGAPORE (E30)

MUFFLER GN125E 1992 (N) SINGAPORE (E30)

MUFFLER GN125E 1992 (N) SINGAPORE (E30)

prices are in EUR

ref

part #

description

quantity

1-1

1418105020
ref: 1-1
MODEL Z/D/K

GASKET,EXHAUST PIPE (NAS)

€ 6.50

1-2

1418118C00
ref: 1-2
MODEL M/N/R

GASKET,EXHAUST (NAS)

€ 6.50

1-3

1418118C00
ref: 1-3
E18

GASKET,EXHAUST (NAS)

€ 6.50

2-1

1430505300
ref: 2-1
~E.NO.107566

MUFFLER ASSEMBLY

€ 228.50

2-2

14305053A0
ref: 2-2
E.NO.107567~FROM 143

MUFFLER ASSY

€ 228.50

2-3

1430505350
ref: 2-3
E18,~E.NO.107566

MUFFLER

€ 207.50

2-4

1430505354
ref: 2-4
E18,E.NO.107567~

MUFFLER

€ 207.50

2-5

1430505500
ref: 2-5
MODEL N/R:E30

MUFFLER ASSEMBLY

€ 213.50

3

0142106208
ref: 3
~E.NO.107566

STUD 6X20

€ 2.50

4

0711008257
ref: 4
E.NO.107567~

BOLT, FRONT LH

€ 3.50

5

0832121067
ref: 5
~E.NO.107566

WASHER,LOCK

€ 2.50

6

0831011068
ref: 6
~E.NO.107566

NUT

€ 2.50

7

0832221108
ref: 7

WASHER

€ 2.50
