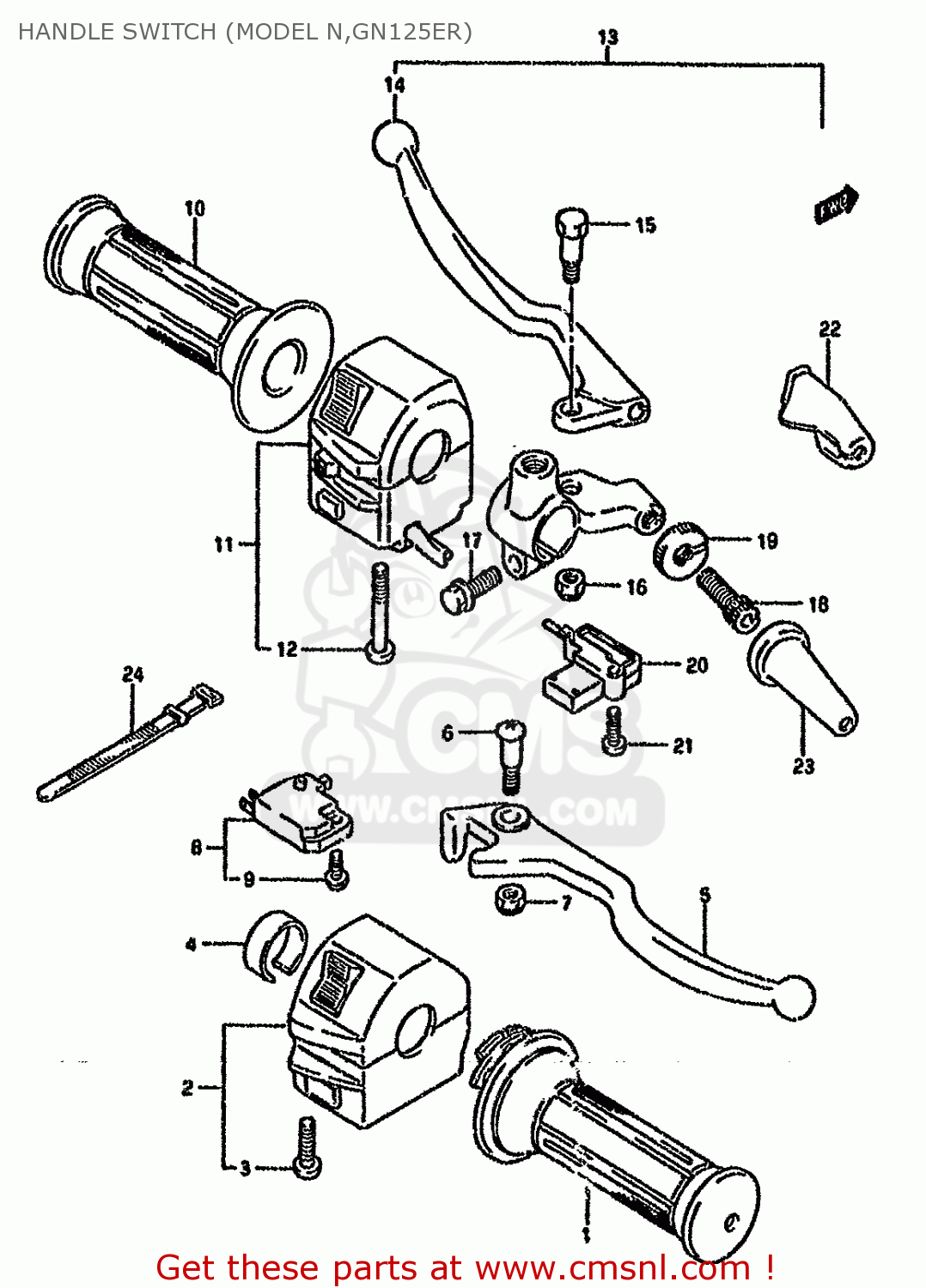

HANDLE SWITCH (MODEL N,GN125ER)

ref

part #

description

quantity

1

5711034300
ref: 1

GRIP,THROTTLE

€ 24.50

2

3720045C11
ref: 2

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 92.50

3

0211205205
ref: 3

SCREW 5X20

€ 2.50

4

5611505300
ref: 4

SPACER,HANDLE SWITCH,R

€ 6.00

5

5742113001
ref: 5

LEVER,BRAKE

€ 18.00

6

5743113030
ref: 6

SCREW,BRAKE LEVER

€ 6.50

7

0831921065
ref: 7

NUT

€ 2.50

8

5746017C00
ref: 8

SWITCH ASSEMBLY,STOP

€ 32.50

9

5746517C00
ref: 9

SCREW

€ 1.50

10

5721134300
ref: 10

GRIP,L

€ 10.00

11

3740006B11
ref: 11

SWITCH ASSEMBLY,HANDLE,LEFT

€ 102.00

12

0211205405
ref: 12

SCREW

€ 2.00

13

5750005390
ref: 13

LEVER ASSY,CLUTCH

€ 77.00

14

5762005390
ref: 14

LEVER,CLUTCH

€ 65.50

15

5743145C00
ref: 15

BOLT,LEVER SET

€ 10.50

16

0831921065
ref: 16

NUT

€ 2.50

17

0154706205
ref: 17

BOLT 6X20

€ 2.50

18

5744145C00
ref: 18

ADJUSTER,WIRE

€ 8.50

19

5744245C00
ref: 19

NUT,LOCK

€ 7.50

20

5756005A00
ref: 20

SWITCH,CLUTCH

€ 11.00

21

0213203208
ref: 21

SCREW

€ 0.00

22

5766131000
ref: 22

COVER,CLUTCH LEVER

€ 5.50

23

5827331000
ref: 23

BOOT,CLUTCH CABLE

€ 2.50

24

0940712402
ref: 24

CLAMP(L:120)

€ 3.00
