GEAR SHIFTING
GN125E 1992 (N) SINGAPORE (E30)

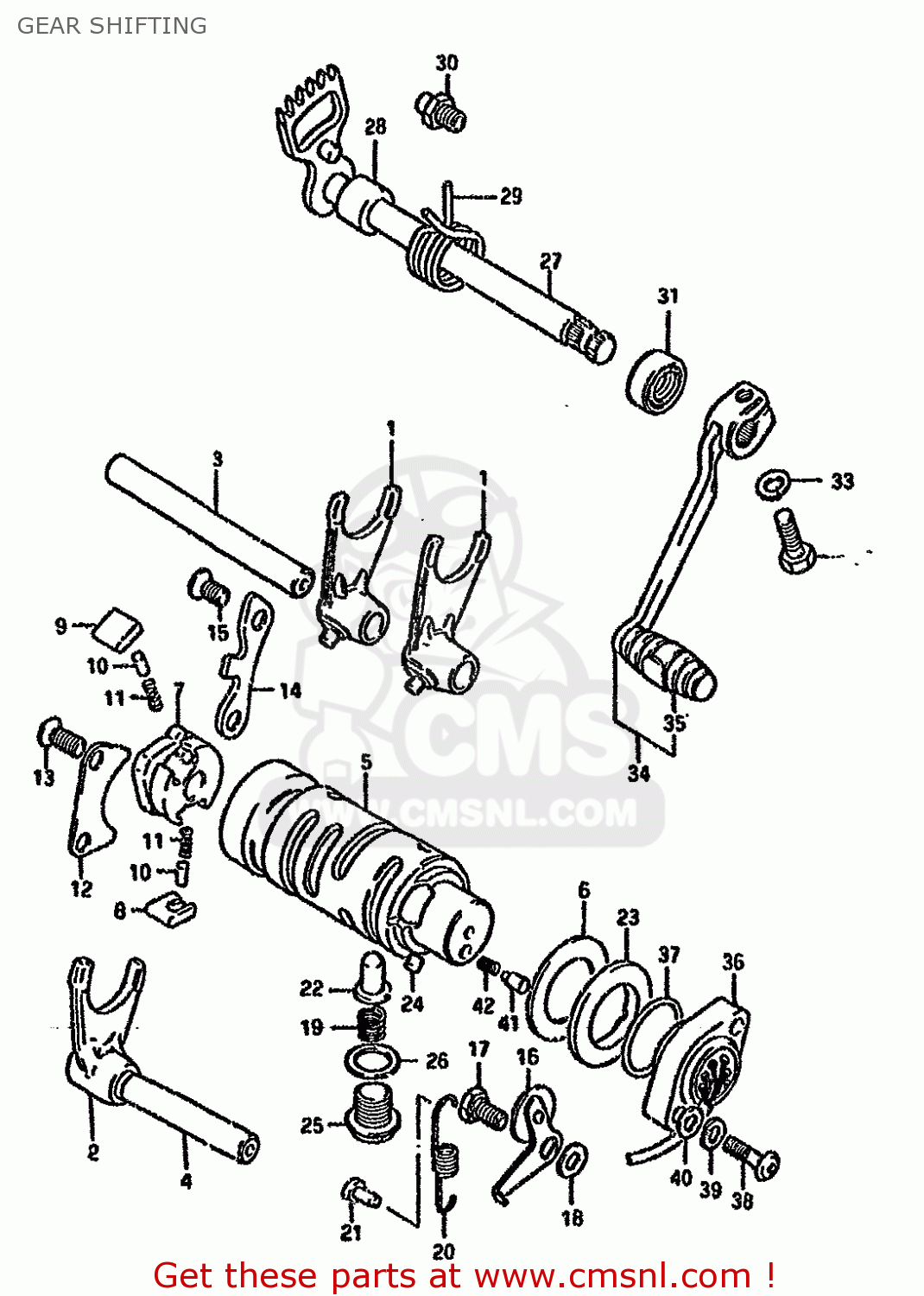

Gear shifting diagram GN125E 1992 (N) SINGAPORE (E30)
GEAR SHIFTING GN125E 1992 (N) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1
2522108300
ref: 1
FORK,GEAR SHIFT NO.2
€ 54.50
2
2523105201
ref: 2
FORK,GEAR SHIFT NO.3
€ 54.50
3-1
2541116701
ref: 3-1
MODEL Z/D/K/M/N
SHAFT,GEAR SHIFT FORK(L:109)
€ 11.50
3-2
2541105201
ref: 3-2
MODEL R
SHAFT,GEAR SHIFT FORK
€ 11.50
4-1
2542135402
ref: 4-1
MODEL Z/D/K/M/N-2542
SHAFT,GEAR SHIFT FORK
€ 19.00
4-2
2542135403
ref: 4-2
MODEL R
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531005300
ref: 5
CAM,GEAR SHIFT
€ 75.00
6
0821125401
ref: 6
WASHER,THRUST
€ 2.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533130001
ref: 12
LIFTER,GEAR SHIFT POLE
€ 3.50
13
0212206128
ref: 13
SCREW
€ 3.00
14
2534105200
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0212206128
ref: 15
SCREW
€ 3.00
16-1
2535005200
ref: 16-1
MODEL Z/D/K/M/N-2535
STOPPER,GEAR SHIFTING
€ 8.00
16-2
2535044A00
ref: 16-2
MODEL R
STOPPER,GEAR SHIFT CAM
€ 8.00
17
0911106054
ref: 17
BOLT(6X14.6)
€ 1.50
18
0821106141
ref: 18
WASHER
€ 2.50
19-1
0944011014
ref: 19-1
L:29,-09440-11016
SPRING
€ 1.50
19-2
0944011016
ref: 19-2
L:27
SPRING
€ 7.50
20-1
0944308012
ref: 20-1
MODEL Z/D/K/M/N
SPRING
€ 3.00
20-2
0944308044
ref: 20-2
MODEL R
SPRING
€ 1.50
21
0922304001
ref: 21
RIVET
€ 1.50
22
2535130010
ref: 22
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
23
2538145400
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
24
0621104063
ref: 24
PIN 4X6
€ 2.00
25-1
0924714012
ref: 25-1
MODEL Z/D/K/M/N
PLUG (14X12)
€ 3.50
25-2
0924714026
ref: 25-2
MODEL R
PLUG(14X12)
€ 3.50
26-1
0916814004
ref: 26-1
MODEL Z/D/K/M/N
GASKET(14X19.2X2) (NAS)
€ 2.50
26-2
0916814002
ref: 26-2
MODEL R
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
27
2551005201
ref: 27
SHAFT,GEAR SHIFT
€ 42.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
€ 3.00
29
0944426013
ref: 29
SPRING
€ 3.50
30
2567101000
ref: 30
STOPPER,GEAR SHIFT CAM
€ 3.00
31
0928512002
ref: 31
OIL SEAL
€ 7.00
32-1
0110706207
ref: 32-1
MODEL Z/D
BOLT
€ 2.00
32-2
0910006091
ref: 32-2
MODEL K/M
BOLT
€ 2.00
32-3
0150006207
ref: 32-3
MODEL N/R
BOLT
€ 2.00
33
0832121067
ref: 33
MODEL Z/D/K/M
WASHER,LOCK
€ 2.50
34
2560005320
ref: 34
LEVER ASSY,GEAR SHIFT
€ 33.50
35
2565216500
ref: 35
RUBBER,GEAR SHIFT PEDAL
€ 4.00
36-1
3772044600
ref: 36-1
MODEL Z/D/K/M
TERMINAL BASE,NEUTRAL SWITCH
€ 51.00
36-2
3772047D00
ref: 36-2
MODEL R
BASE ASSY,NEUTRAL SW TERMINAL
€ 103.50
36-3
3772033200
ref: 36-3
MODEL Z/D/K/M:E30
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 92.50
36-4
3772044700
ref: 36-4
MODEL N/R:E30
BASE ASSY,GEAR SHIFT TERMINAL
€ 83.50
37
0928026003
ref: 37
O-RING (D:2.4 ID:26.2)
€ 2.50
38
0211205206
ref: 38
SCREW
€ 2.50
39
0832121056
ref: 39
LOCK WASHER
€ 3.00
40
0832221056
ref: 40
WASHER
€ 2.50
41
0920905011
ref: 41
PIN(5X15.5)
€ 2.00
42
0944004010
ref: 42
SPRING
€ 1.50
