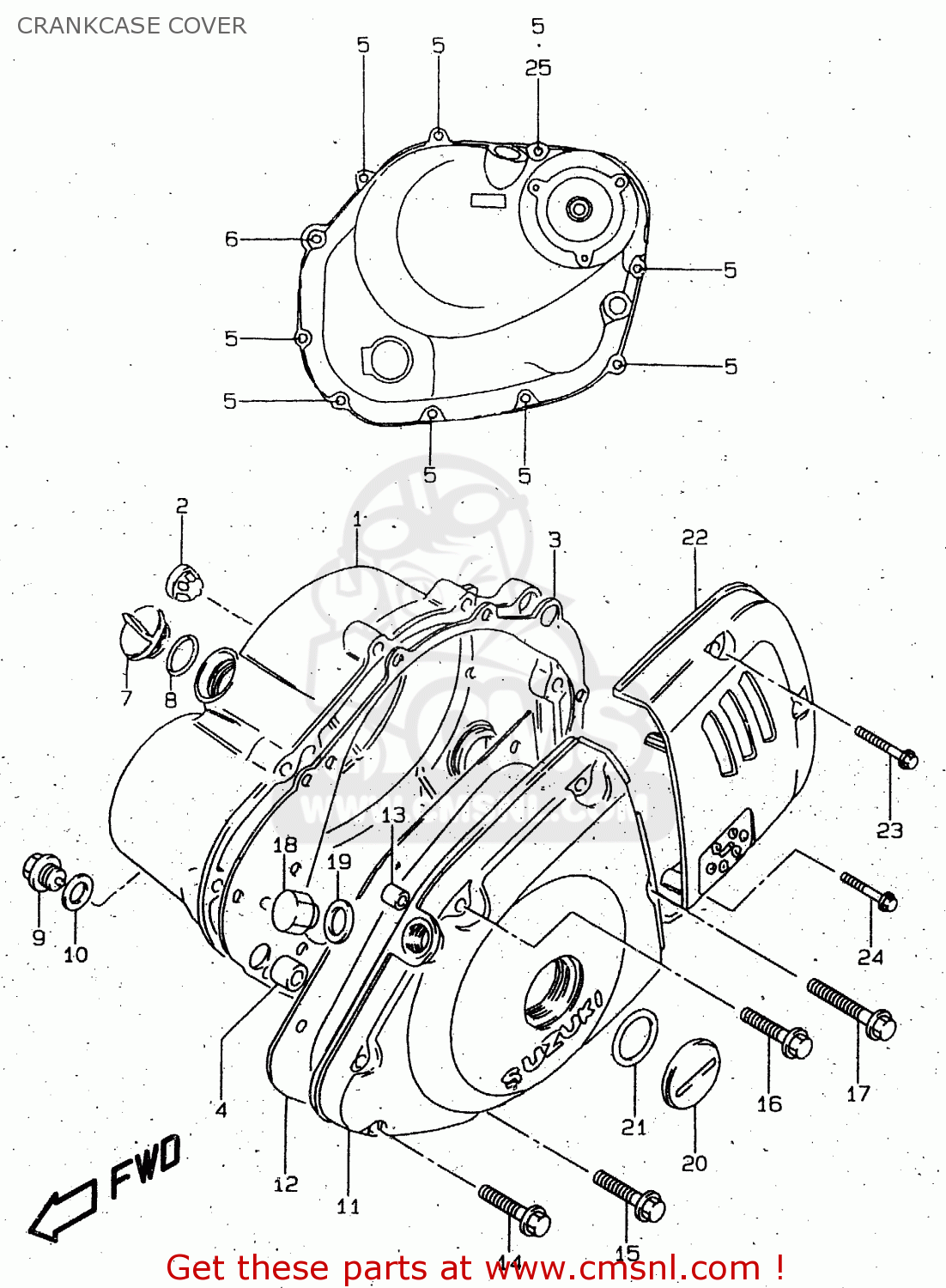

CRANKCASE COVER

ref

part #

description

quantity

1

1134005303
ref: 1

COVER,CLUTCH

€ 112.50

2

1197145010
ref: 2

LENS,OIL LEVEL CHECK

€ 13.00

3

1148205311
ref: 3

GASKET,CLUTCH COVER (NAS)

€ 16.00

4

0421113189
ref: 4

PIN

€ 2.50

5

0154706307
ref: 5

BOLT

€ 2.50

6

0154706457
ref: 6

BOLT

€ 2.50

7

0925920007
ref: 7

PLUG(20X10)

€ 6.50

8

0928017003
ref: 8

O RING(D:3.1,ID:16.8)

€ 2.00

9

0924714026
ref: 9

PLUG(14X12)

€ 3.50

10

0916814002
ref: 10

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

11

1135105302
ref: 11

COVER,MAGNETO

€ 100.00

12

1148305311
ref: 12
~F.NO.239071

GASKET,MAGNETO COVER (NAS)

€ 8.50

12

1148305312
ref: 12
F.NO.239072~

GASKET,MAGNETO COVER (NAS)

€ 8.50

13

0421109129
ref: 13

PIN

€ 2.00

14

0154706307
ref: 14

BOLT

€ 2.50

15

0154706357
ref: 15

BOLT

€ 2.50

16

0154706407
ref: 16

BOLT

€ 2.50

17

0154706507
ref: 17

BOLT

€ 2.50

18

0924712104
ref: 18

PLUG,12X9

€ 2.50

19

0916812002
ref: 19

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

20

0925926011
ref: 20

PLUG(26X9)

€ 8.50

21

0928022008
ref: 21

O RING(D:3.1,ID:22.7)

€ 2.50

22

1136105301
ref: 22

COVER,ENGINE SPROCKET

€ 22.50

23

0154705357
ref: 23

BOLT

€ 2.50

24

0154705257
ref: 24

BOLT

€ 2.00

25

0916806024
ref: 25

GASKET(5.8X11X1.2) (NAS)

€ 2.00
