REAR COMBINATION (GN125E E1,E30)
GN125U 1997 (V) GERMANY (E22)

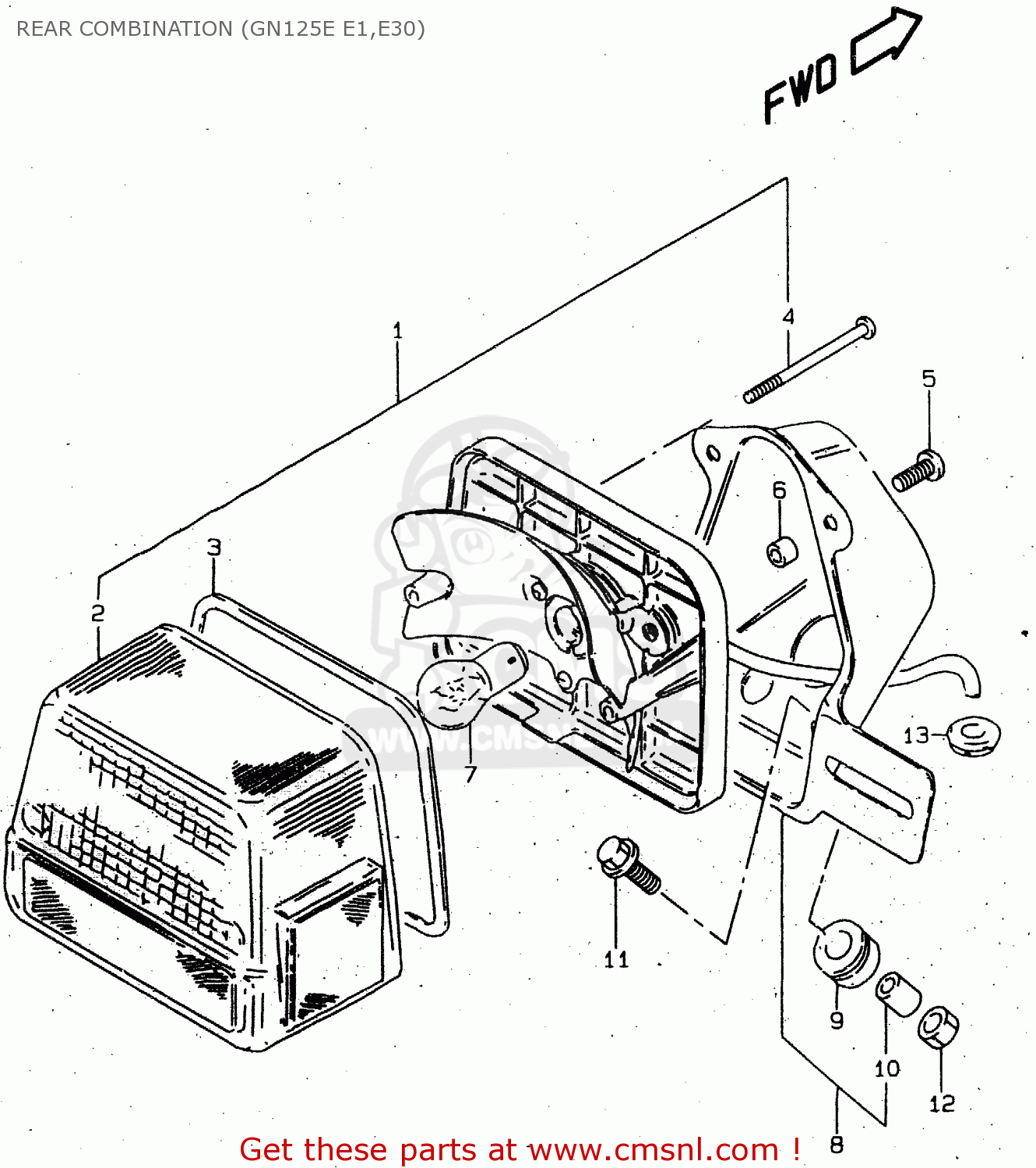

Rear combination (gn125e e1,e30) diagram GN125U 1997 (V) GERMANY (E22)
REAR COMBINATION (GN125E E1,E30) GN125U 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3572038330999
ref: 1
LAMP UNIT,RR COMBNATION
€ 88.00
2
3571249130
ref: 2
LENS
€ 49.00
3
3571349130
ref: 3
GASKET (NAS)
€ 5.50
4
3572344130
ref: 4
SCREW
€ 1.50
5
0211205167
ref: 5
SCREW
€ 2.50
6
3576639210
ref: 6
SPACER
€ 0.00
7
0947112035
ref: 7
BULB(12V23W)
€ 5.50
8
3573049130
ref: 8
BRACKET UNIT,TAIL LAMP
€ 0.00
9
3576522210
ref: 9
CUSHION
€ 4.00
10
3576637120
ref: 10
SPACER
€ 2.50
11
0911606093
ref: 11
BOLT(6X25)
€ 2.00
12
0831000063
ref: 12
NUT 6MM
€ 2.00
13
0930809004
ref: 13
GROMMET
€ 0.00
