HEADLAMP (GN125E E1,E30)

GN125U 1997 (V) GERMANY (E22)

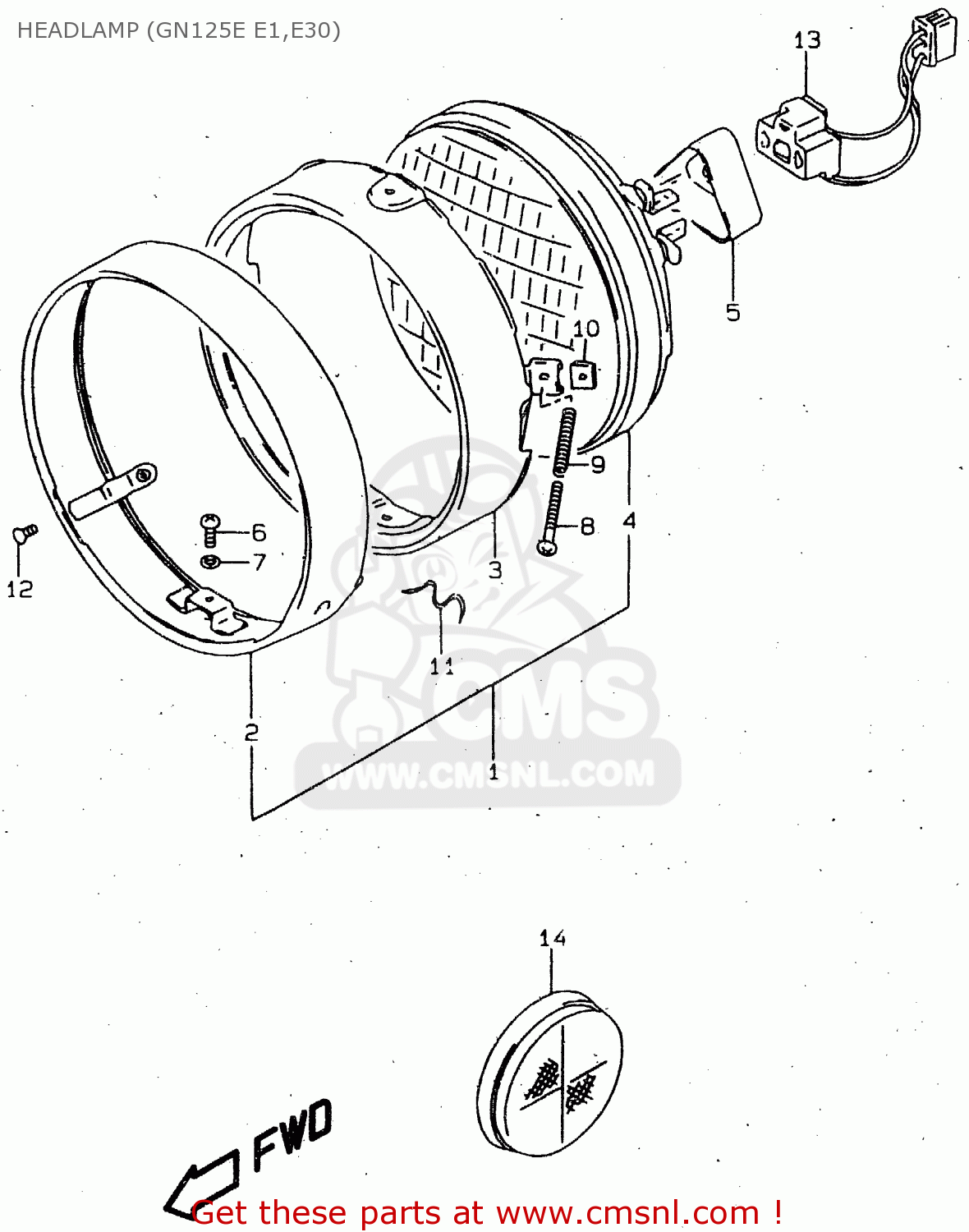

Headlamp (gn125e e1,e30) diagram GN125U 1997 (V) GERMANY (E22)

HEADLAMP (GN125E E1,E30) GN125U 1997 (V) GERMANY (E22)

HEADLAMP (GN125E E1,E30) GN125U 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

3510044250
ref: 1

LAMP ASSEMBLY,HEAD

€ 124.00

2

3511144250
ref: 2

RIM

€ 34.50

3

3512729610
ref: 3

RETAINER

€ 15.50

4

3512144250
ref: 4
12V,45/40W

LAMP UNIT

€ 124.00

5

3517329610
ref: 5

COVER

€ 3.00

6

3513629610
ref: 6

SCREW

€ 3.00

7

0832101057
ref: 7

WASHER,LOCK

€ 2.00

8

3515131610
ref: 8

SCREW

€ 4.00

9

3515433630
ref: 9

SPRING

€ 2.50

10

3515215611
ref: 10

NUT

€ 3.50

11

3512829611
ref: 11

SPRING,HEAD LAMP UNIT

€ 3.50

12

0211205127
ref: 12

SCREW

€ 2.50

13

3685330500
ref: 13

LEAD WIRE,HEADLAMP

€ 13.00

14

3595049080
ref: 14

REFLEX REFLECTOR,RR

€ 17.50
