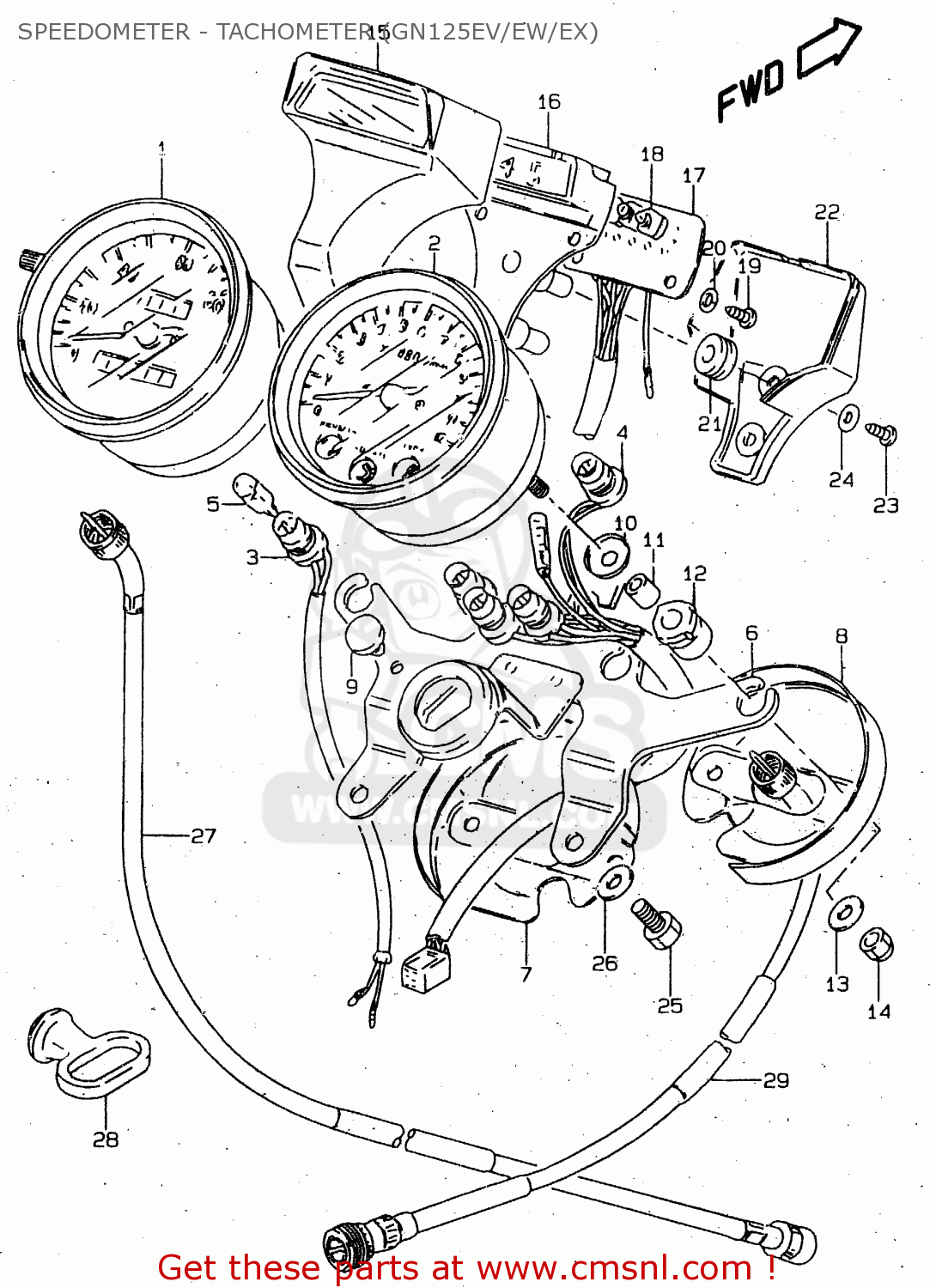

SPEEDOMETER - TACHOMETER (GN125EV/EW/EX) - GN125U 1997 (V) GERMANY (E22)

ref

part #

description

quantity

1

3411005300
ref: 1

SPEEDOMETER(KILO)

€ 251.50

1

3411005310
ref: 1

METER,SPEED (KM/MPH)

€ 222.50

2

3421005320
ref: 2

TACHOMETER

€ 211.50

3

3417305300
ref: 3

SOCKET,SPEEDOMETER

€ 11.50

4

3427305320
ref: 4

SOCKET,TACHOMETER

€ 27.50

5

0947112082
ref: 5

BULB(12V3.4W,T10,BF175-01450A)

€ 3.50

6

3495005320
ref: 6

BRACKET,METER

€ 27.00

7

3419305300
ref: 7

UNDER COVER,SPEEDOMETER

€ 13.00

8

3429305300
ref: 8

UNDER COVER,TACHOMETER

€ 12.50

9

3495628011
ref: 9

CUSHION,METER

€ 5.50

10

0916005013
ref: 10

WASHER(5.2X16X1)

€ 1.50

11

3418728310
ref: 11

SPACER,SPEEDOMETER

€ 2.00

12

3418928310
ref: 12

CUSHION,METER

€ 2.50

13

0916005024
ref: 13

WASHER(5.5X16X1.5)

€ 1.50

14

0831310057
ref: 14

NUT

€ 1.50

15

3638005320
ref: 15

PILOT BOX

€ 23.50

16

3638105320
ref: 16

CASE,PILOT BOX

€ 19.50

17

3645305320
ref: 17

INDICATOR,GEAR POSITION

€ 30.50

18

0947112071
ref: 18

BULB(14V1.12W)

€ 5.00

19

0211204123
ref: 19

SCREW

€ 1.50

20

0832101043
ref: 20

WASHER,LOCK

€ 2.00

21

3495528010
ref: 21

CUSHION

€ 4.00

22

3638305320
ref: 22

COVER,LWR

€ 13.50

23

0311204163
ref: 23

SCREW,

€ 2.00

24

0832201043
ref: 24

WASHER

€ 5.00

25

0150006167
ref: 25

BOLT

€ 3.00

26

0832201067
ref: 26

WASHER

€ 2.00

27

3491005310
ref: 27

CABLE ASSY,SPEEDOMETER

€ 41.00

28

5862121203A
ref: 28

GUIDE,CABLE

€ 7.50

29

3494005300
ref: 29

CABLE ASSY,TACHOMETER

€ 44.00

SPEEDOMETER - TACHOMETER (GN125EV/EW/EX)

all assemblies
