FRONT CALIPER

GN125U 1997 (V) GERMANY (E22)

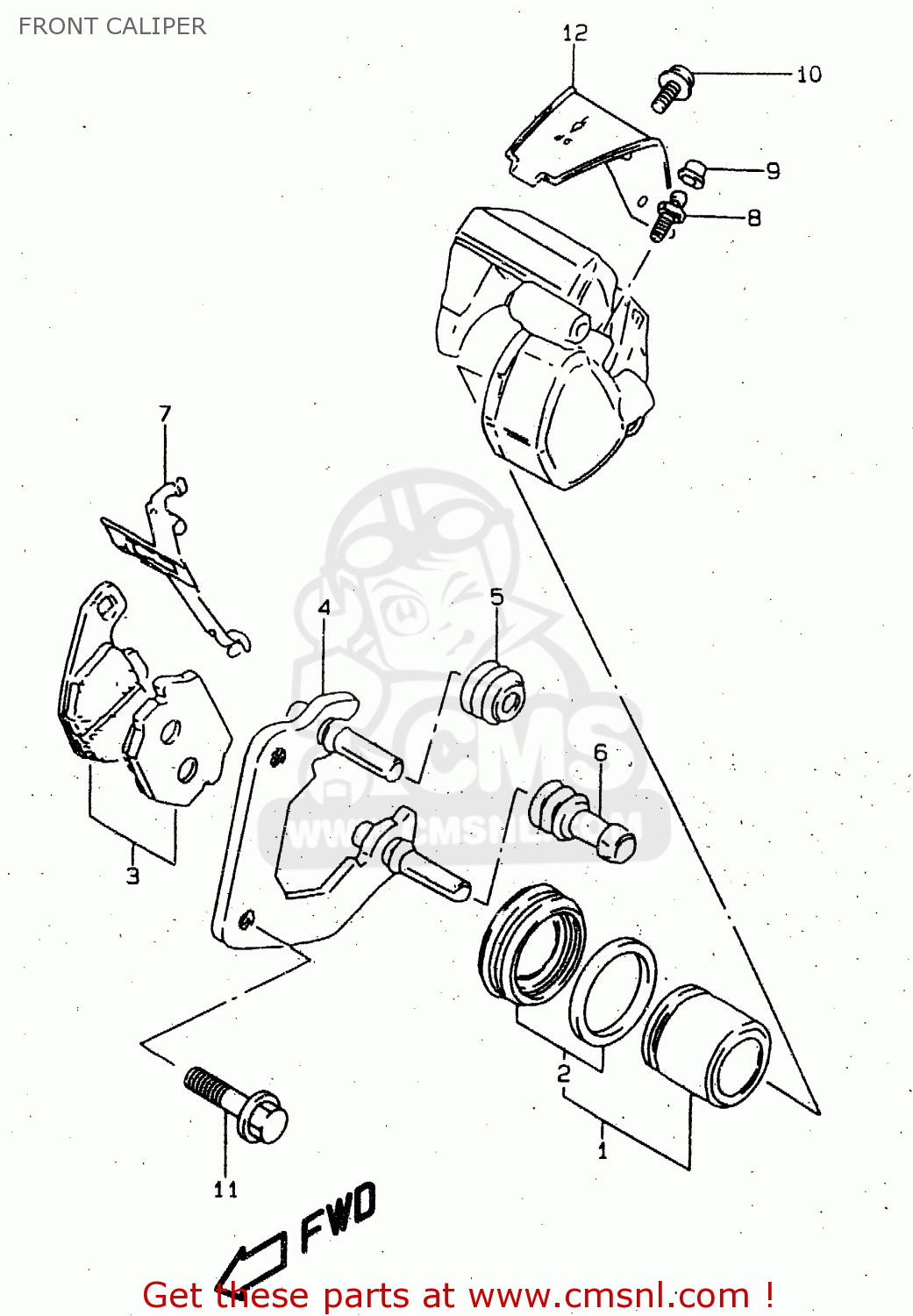

Front caliper diagram GN125U 1997 (V) GERMANY (E22)

FRONT CALIPER GN125U 1997 (V) GERMANY (E22)

FRONT CALIPER GN125U 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

0

5930004712
ref: 0

CALIPER ASSEMBLY,FRONT,LEFT

€ 229.00

1

5930004850
ref: 1

PISTON SET

€ 53.00

2

5930004860
ref: 2

SEAL SET,PISTON

€ 10.00

3

5930004831
ref: 3

PAD SET (NAS)

€ 34.50

4

5935036501
ref: 4

CARRIER,L

€ 52.00

5

5931236500
ref: 5

BOOT,AXLE

€ 4.00

6

5931336500
ref: 6

INSULATOR,AXLE

€ 5.50

7

5931536500
ref: 7

SPRING,PAD

€ 11.00

8

5912118410
ref: 8

BLEEDER

€ 8.00

9

5515666310
ref: 9

CAP,BLEEDER PLUG

€ 6.00

10

0211275123
ref: 10

SCREW

€ 2.50

11

0155008303
ref: 11

BOLT

€ 3.00

12

5931313001
ref: 12

PROTECTOR,CALIPER

€ 4.50
