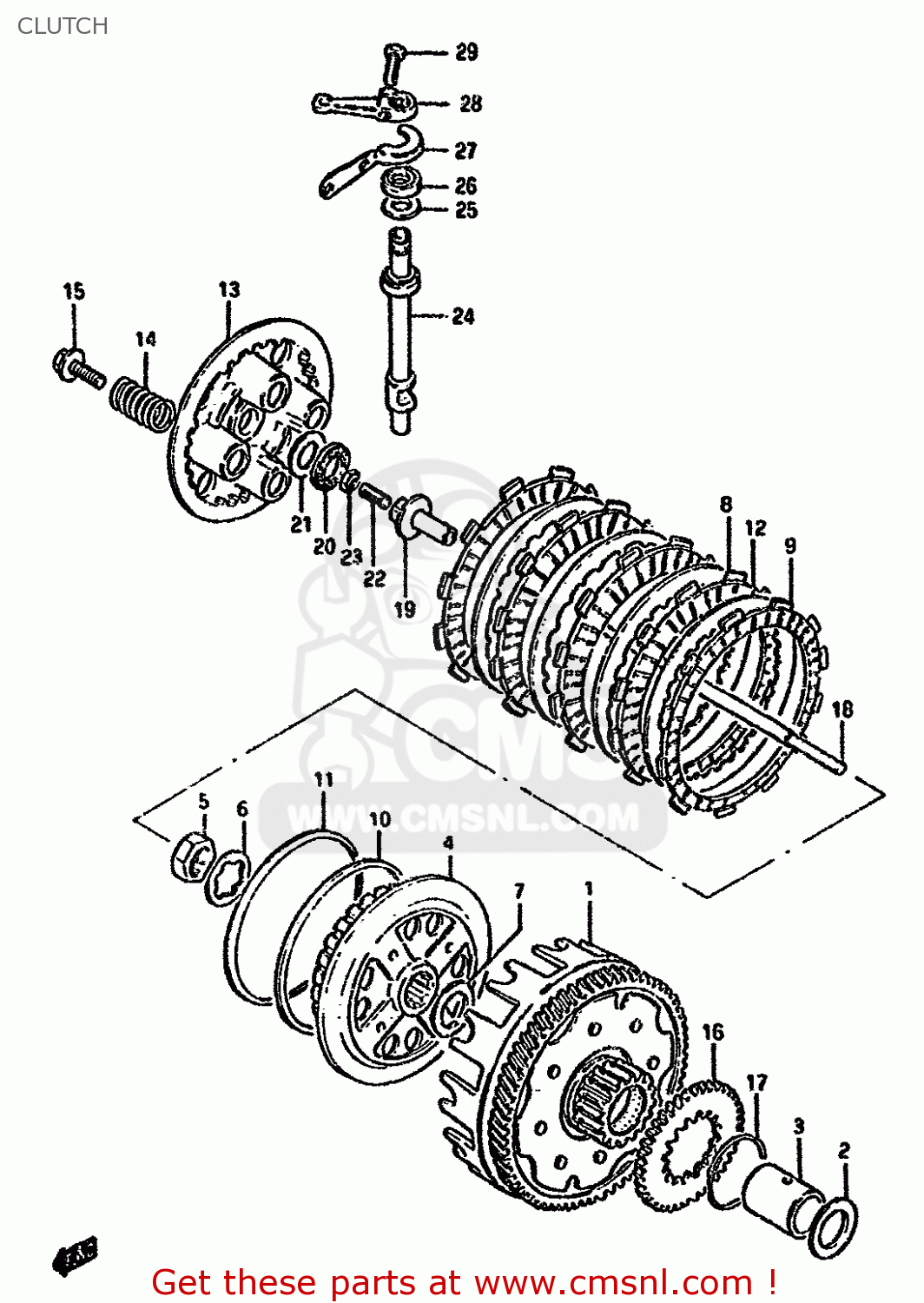

CLUTCH

ref

part #

description

quantity

1

2120038201
ref: 1
NT:68/16

GEAR ASSY,PRI DRIVEN

€ 263.00

2

0821122363
ref: 2

WASHER

€ 2.50

3

0918022024
ref: 3

SPACER(22X28X37.5)

€ 16.50

4

2141138200
ref: 4

HUB,CLUTCH SLEEVE

€ 97.50

5

0914022005
ref: 5

NUT

€ 4.00

6

0916722010
ref: 6

WASHER,LOCK

€ 4.00

7

0821122363
ref: 7

WASHER

€ 2.50

8

2144137400
ref: 8

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

9

2144237401
ref: 9

PLATE,CLUTCH DRIVE(T:3.5) (NAS)

€ 11.50

10

2147137400
ref: 10

SEAT,WAVE WASHER(T:1.4)

€ 8.00

11

0916400004
ref: 11

WASHER

€ 9.00

12

2145137400
ref: 12

PLATE,CLUTCH DRIVEN

€ 6.50

13

2146238200
ref: 13

DISC,CLUTCH PRESSURE

€ 37.00

14

0944019007
ref: 14

SPRING

€ 3.00

15

0911606016
ref: 15

BOLT

€ 2.50

16

1632138200
ref: 16

GEAR,OIL PUMP DRIVE

€ 16.00

17

0938050001
ref: 17

CIRCLIP

€ 2.50

18

2311038201
ref: 18

ROD,CLUTCH PUSH

€ 14.50

19

2312138200
ref: 19

PIECE,CLUTCH PUSH

€ 17.00

20

0926315003
ref: 20

BEARING(15X28X2)

€ 7.00

21

0916015045
ref: 21
-09160-15015

WASHER(15.5X28X1)

€ 4.00

22

0913406010
ref: 22

SCREW(6X25)

€ 3.00

23-1

0831022067
ref: 23-1
MODEL F/J/K/L/M/N/P

NUT 6MM

€ 2.50

23-2

0914006023
ref: 23-2
MODEL R

NUT

€ 2.00

24

2312238200
ref: 24

CAMSHAFT,CLUTCH RELEASE

€ 60.50

25

0916014003
ref: 25

WASHER (14.2X22X1)

€ 1.00

26

0928512002
ref: 26

OIL SEAL

€ 7.00

27

2311738200
ref: 27

PLATE,CLUTCH RRS CAMSHAFT SEAL

€ 4.50

28

2327145400
ref: 28

ARM,CLUTCH RELEASE

€ 31.50

29

0150006207
ref: 29

BOLT

€ 2.00
