CYLINDER
GN250 1989 (K) AUSTRALIA (E24)

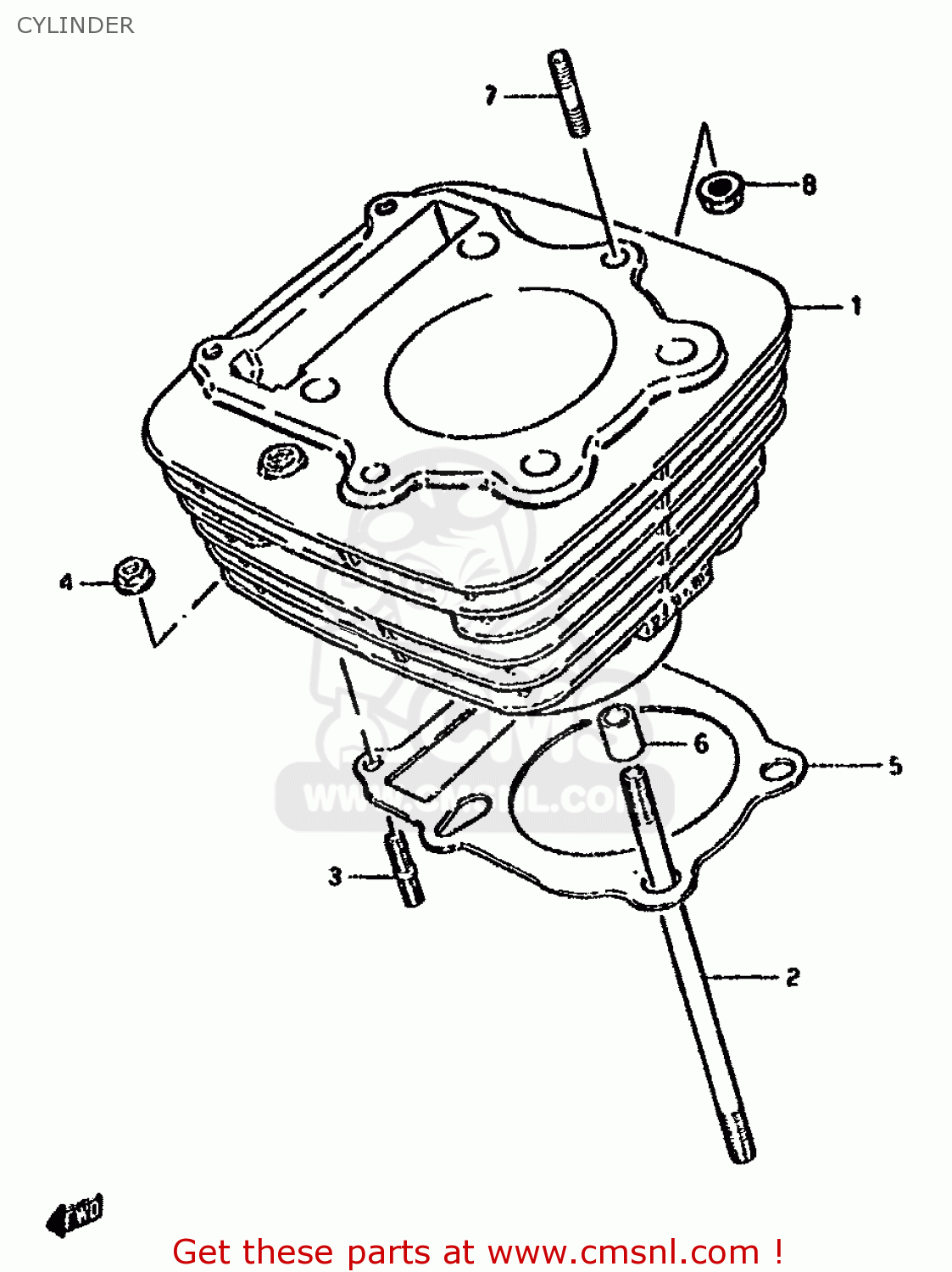

Cylinder diagram GN250 1989 (K) AUSTRALIA (E24)
CYLINDER GN250 1989 (K) AUSTRALIA (E24)
×
prices are in EUR
ref
part #
description
quantity
1
1121038201
ref: 1
CYLINDER
€ 1,003.50
2
0910810030
ref: 2
BOLT,STUD
€ 7.50
3
0142106258
ref: 3
STUD 6X25
€ 2.50
4-1
0915906017
ref: 4-1
MODEL F/J/K/L/M/N/P
NUT
€ 2.50
4-2
0831610067
ref: 4-2
MODEL R
NUT
€ 2.00
5
1124138300
ref: 5
GASKET,CYLINDER (NAS)
€ 9.50
6
0920613001
ref: 6
PIN
€ 2.50
7
0142106308
ref: 7
STUD 6X30
€ 2.50
8-1
0915906017
ref: 8-1
MODEL F/J/K/L/M/N/P
NUT
€ 2.50
8-2
0915910069
ref: 8-2
MODEL R
NUT
€ 5.00
