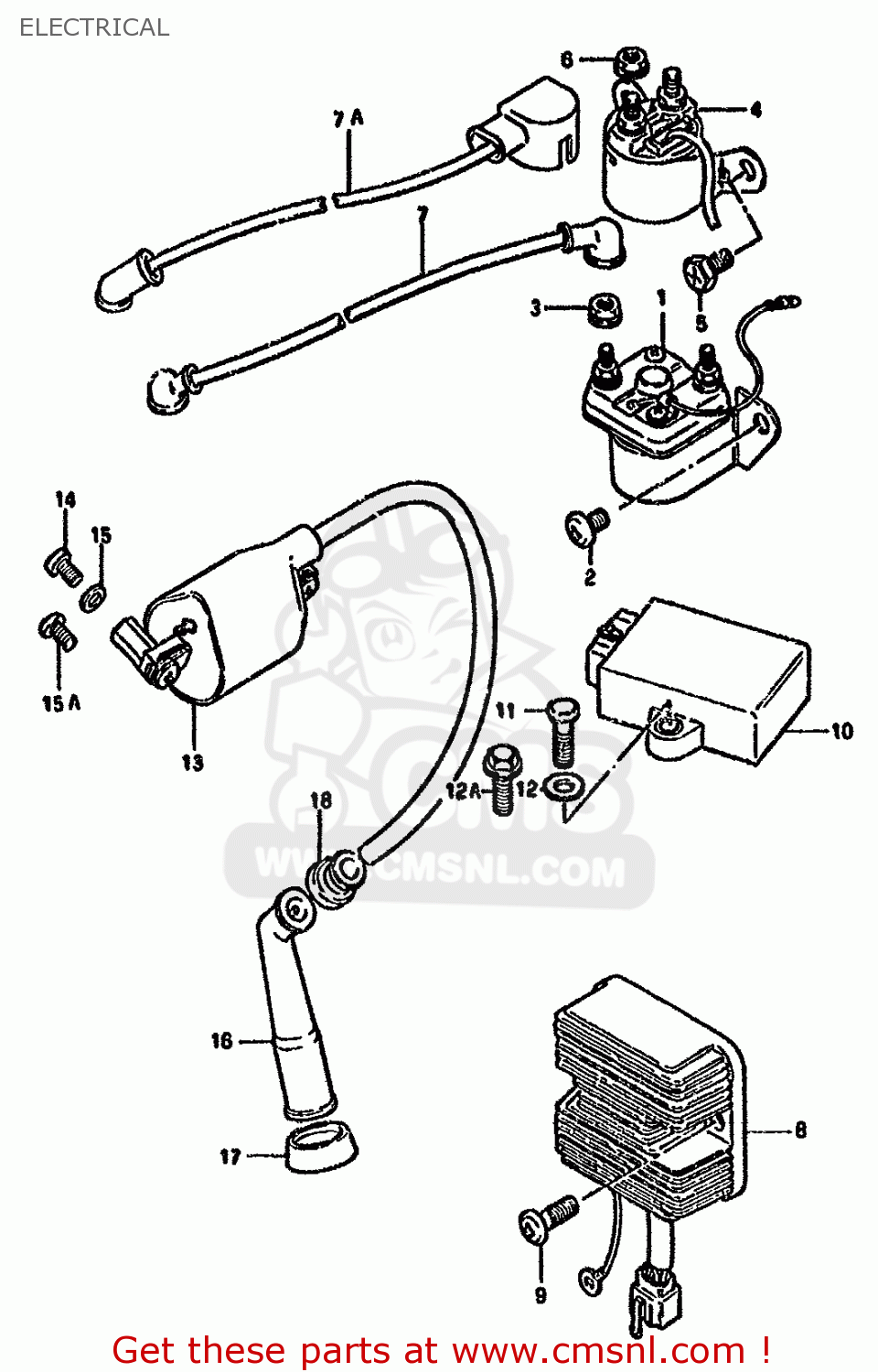

ELECTRICAL

ref

part #

description

quantity

1

3180037020
ref: 1
MODEL F/J/K/L/M/N/P

RELAY ASSY,STARTING MOTOR

€ 105.00

2

0211206107
ref: 2
MODEL F/J/K/L/M/N/P

SCREW

€ 1.50

3

0836135066
ref: 3
MODEL F/J/K/L/M/N/P

NUT

€ 2.00

4

3180015501
ref: 4
MODEL R

RELAY ASSY,STARTING MOTOR

€ 78.00

5

0912806004
ref: 5
MODEL R

SCREW(6X10)

€ 1.50

6

0836135066
ref: 6
MODEL B

NUT

€ 2.00

7

3385005301
ref: 7
MODEL F/J/K/L/M/N/P

WIRE,STARTER MOTOR

€ 16.50

7A

3381038350
ref: 7A
MODEL R

WIRE,STRT.LEAD

€ 31.00

8-1

3280005320
ref: 8-1
MODEL F/J/K/L/M/N/P-

RECTIFIER ASSY

€ 188.00

8-2

3280029B00
ref: 8-2
MODEL R

RECTIFIER ASSY

€ 266.50

9-1

0912806011
ref: 9-1
MODEL K/L/M/N

SCREW(6X12)

€ 3.00

9-2

0912806006
ref: 9-2
MODEL P/R

BOLT(6X20)

€ 2.00

10

3290038300
ref: 10

IGNITOR UNIT

€ 512.00

11-1

0150006207
ref: 11-1
MODEL F/J

BOLT

€ 2.00

11-2

0151706203
ref: 11-2
MODEL K/L/M/N/P

BOLT,SIDE

€ 1.50

12

0832201067
ref: 12

WASHER

€ 2.00

12A

0155006203
ref: 12A
MODEL R

BOLT

€ 2.50

13

3341038300
ref: 13

COIL ASSY,IGNITION

€ 151.50

14

0211205107
ref: 14
MODEL F/J/K/L/M/N/P

SCREW

€ 2.00

15

0832201057
ref: 15
MODEL F/J/K/L/M/N/P

WASHER

€ 2.50

15A

0214205103
ref: 15A
MODEL R

SCREW

€ 2.50

16

3351045010
ref: 16

CAP ASSY,SPARK PLUG

€ 23.00

17

3354124510
ref: 17

SEAL,SPARK PLUG CAP

€ 7.00

18

3354238B00
ref: 18

SEAL,HIGH TENSION CORD

€ 4.50

all assemblies
