REAR BRAKE

GN250 1989 (K) AUSTRALIA (E24)

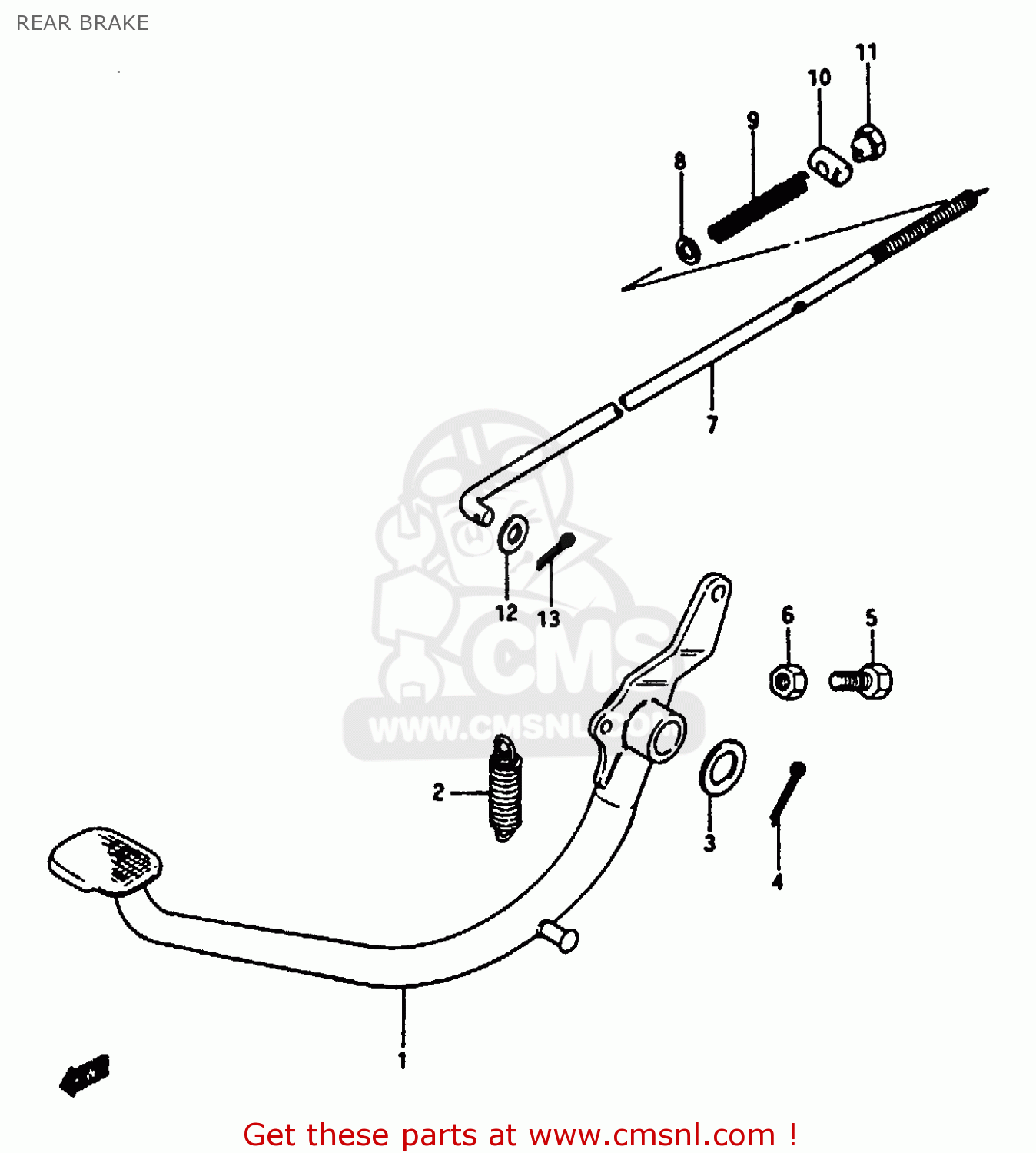

Rear brake diagram GN250 1989 (K) AUSTRALIA (E24)

prices are in EUR

ref

part #

description

quantity

4311038301
ref: 1

PEDAL,BRAKE

€ 104.00

0944314013
ref: 2

SPRING

€ 21.50

0916015002
ref: 3

WASHER(15.5X26X2.3)

€ 2.00

0411130308
ref: 4

COTTER PIN

€ 1.50

0912806028
ref: 5

SCREW(6X23)

€ 2.00

6-1

0831011067
ref: 6-1
MODEL F/J/K/L/M/N/P

NUT 6MM

€ 2.50

6-2

0831000063
ref: 6-2
MODEL R

NUT 6MM

€ 2.00

4330038300
ref: 7

ROD ASSY,RR BRAKE

€ 21.00

8-1

0832201067
ref: 8-1
MODEL F/J/K/L/M/N/P

WASHER

€ 2.00

8-2

0832201063
ref: 8-2
MODEL R

WASHER

€ 2.00

0944009004
ref: 9

SPRING

€ 2.00

0920913005
ref: 10

PIN

€ 3.50

0915006009
ref: 11

NUT (6MM)

€ 3.50

12-1

0832201067
ref: 12-1
MODEL F/J/K/L/M/N/P

WASHER

€ 2.00

12-2

0832201053
ref: 12-2
MODEL R

WASHER

€ 2.50

0411120208
ref: 13

PIN 20X20

€ 1.50
