GEAR SHIFTING
GN250 1989 (K) AUSTRALIA (E24)

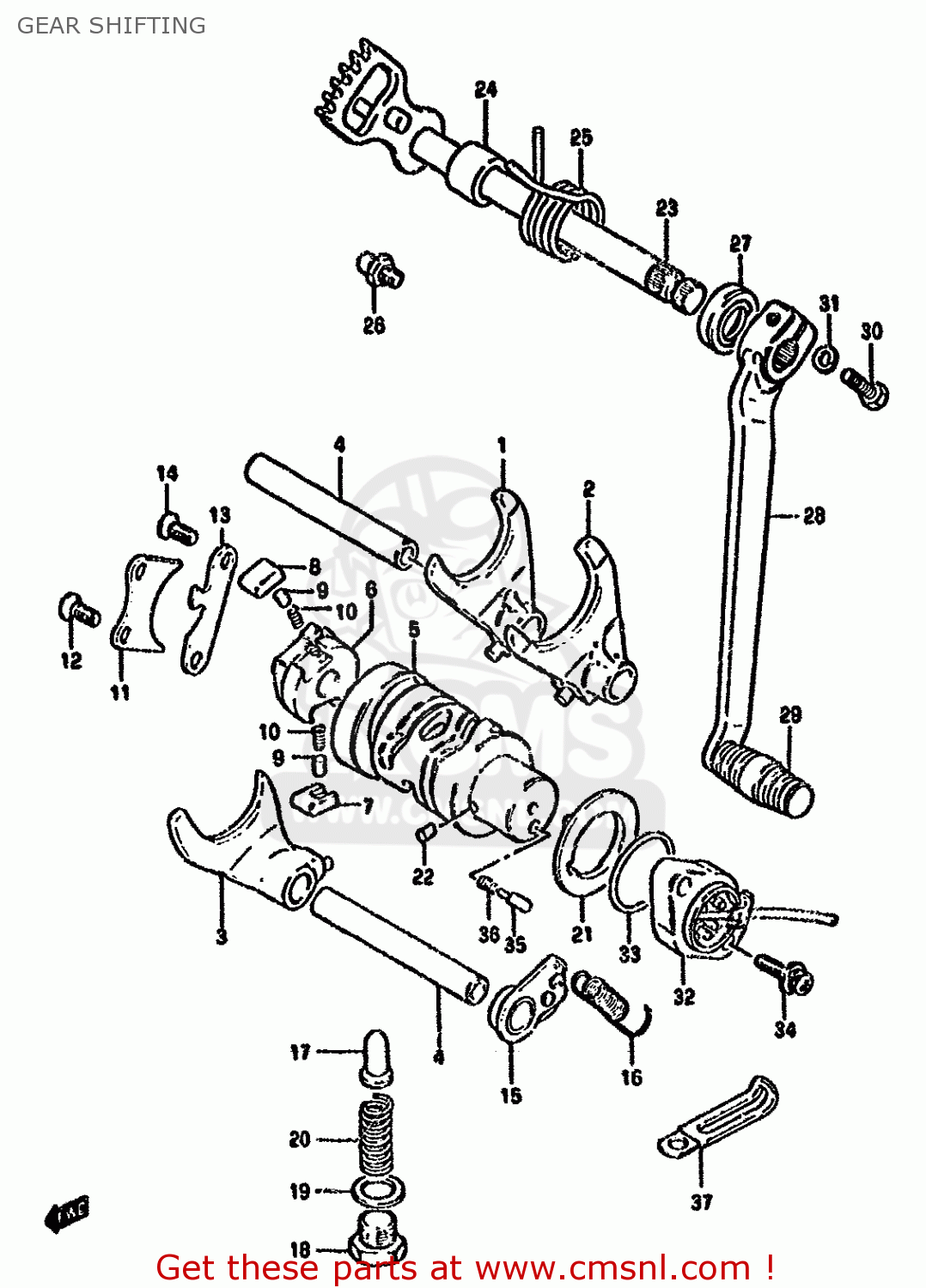

Gear shifting diagram GN250 1989 (K) AUSTRALIA (E24)
GEAR SHIFTING GN250 1989 (K) AUSTRALIA (E24)
×
prices are in EUR
ref
part #
description
quantity
1
2521132401
ref: 1
FORK,GEAR SHIFT NO.1
€ 71.50
2
2522132402
ref: 2
FORK,GEAR SHIFT NO.1
€ 71.50
3
2523132401
ref: 3
FORK,GEAR SHIFT NO.3
€ 71.50
4
2541114330
ref: 4
SHAFT,GEAR SHIFT FORK
€ 14.00
5
2531038200
ref: 5
CAM,GEAR SHIFT
€ 103.00
6
2532231301
ref: 6
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533138201
ref: 11
LIFTER,GEAR SHIFT POLE
€ 4.50
12-1
0212206167
ref: 12-1
MODEL F/J/K/L/M/N/P
SCREW
€ 2.00
12-2
0212206123
ref: 12-2
MODEL R
SCREW
€ 3.00
13
2534138200
ref: 13
GUIDE,GEAR SHIFT CAM
€ 8.50
14-1
0212206127
ref: 14-1
MODEL F/J/K/L/M/N/P
SCREW
€ 3.00
14-2
0212206123
ref: 14-2
MODEL R
SCREW
€ 3.00
15
2535034000
ref: 15
STOPPER,GEAR SHIFT CAM
€ 10.50
16
0944308026
ref: 16
SPRING
€ 14.50
17
2535130010
ref: 17
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
18
0924714012
ref: 18
PLUG (14X12)
€ 3.50
19
0916814004
ref: 19
GASKET(14X19.2X2) (NAS)
€ 2.50
20-1
0944011016
ref: 20-1
MODEL F/J/K/L/M/N/P
SPRING
€ 7.50
20-2
0944011026
ref: 20-2
MODEL R
SPRING
€ 7.50
21
2538145400
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
22
0621104063
ref: 22
PIN 4X6
€ 2.00
23
2551038200
ref: 23
SHAFT,GEAR SHIFT
€ 83.50
24
0918012068
ref: 24
SPACER(12X20X15.3)
€ 3.00
25
0944426004
ref: 25
SPRING
€ 4.00
26
2567101000
ref: 26
STOPPER,GEAR SHIFT CAM
€ 3.00
27
0928512002
ref: 27
OIL SEAL
€ 7.00
28
2560005330
ref: 28
LEVER ASSY,GEAR SHIFT
€ 33.50
29
2565216500
ref: 29
RUBBER,GEAR SHIFT PEDAL
€ 4.00
30-1
0150006207
ref: 30-1
MODEL F/J/K/L/M/N/P
BOLT
€ 2.00
30-2
0150006203
ref: 30-2
MODEL R
BOLT
€ 2.00
31
0832102167
ref: 31
MODEL F/J
LOCK WASHER
€ 0.00
32-1
3772033200
ref: 32-1
MODEL F
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 92.50
32-2
3772044700
ref: 32-2
MODEL J/K/L/M/N/P/R
BASE ASSY,GEAR SHIFT TERMINAL
€ 83.50
33
0928026003
ref: 33
O-RING (D:2.4 ID:26.2)
€ 2.50
34-1
0211275208
ref: 34-1
MODEL F/J/K/L/M/N/P
SCREW
€ 3.00
34-2
0211275203
ref: 34-2
MODEL R
SCREW
€ 3.00
35
0920905011
ref: 35
PIN(5X15.5)
€ 2.00
36
0944004010
ref: 36
SPRING
€ 1.50
37-1
0940406412
ref: 37-1
MODEL F/J
CLAMP
€ 2.50
37-2
0940406402
ref: 37-2
MODEL K/L/M/N/P/R
CLAMP
€ 2.50
