CAM CHAIN

GN250 1994 (R) (E02 E04 E22 E24 E25 E34 E39 E53)

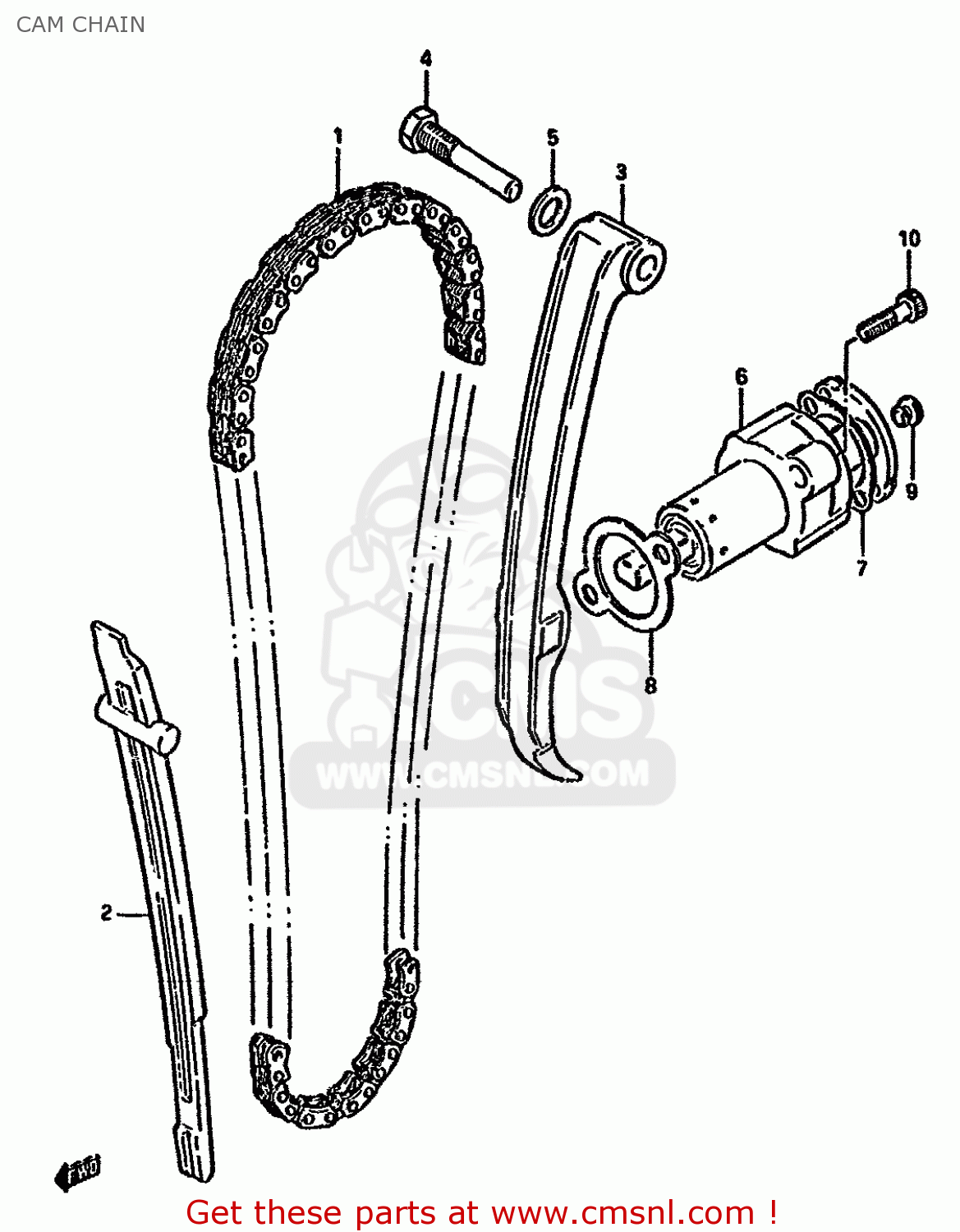

Cam chain diagram GN250 1994 (R) (E02 E04 E22 E24 E25 E34 E39 E53)

prices are in EUR

ref

part #

description

quantity

1276038200
ref: 1
112LE

CHAIN,CAMSHAFT DRIVE

€ 109.50

1277138200
ref: 2

GUIDE,CAM CHAIN

€ 34.00

1281138200
ref: 3

TENSIONER,CAM CHAIN

€ 31.50

1261232400
ref: 4

BOLT

€ 0.00

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

1283038201
ref: 6

ADJUSTER ASSY,TENSIONER

€ 91.00

GASKET,ADJUSTER CAP (NAS)

€ 3.00

1283724A10
ref: 8
-12837-24A00

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

1283938200
ref: 9

PLUG,ADJUSTER

€ 2.00

10-1

0711006257
ref: 10-1
MODEL F/J/K/L/M/N/P

BOLT

€ 2.50

10-2

0713006257
ref: 10-2
MODEL R

BOLT

€ 2.50
