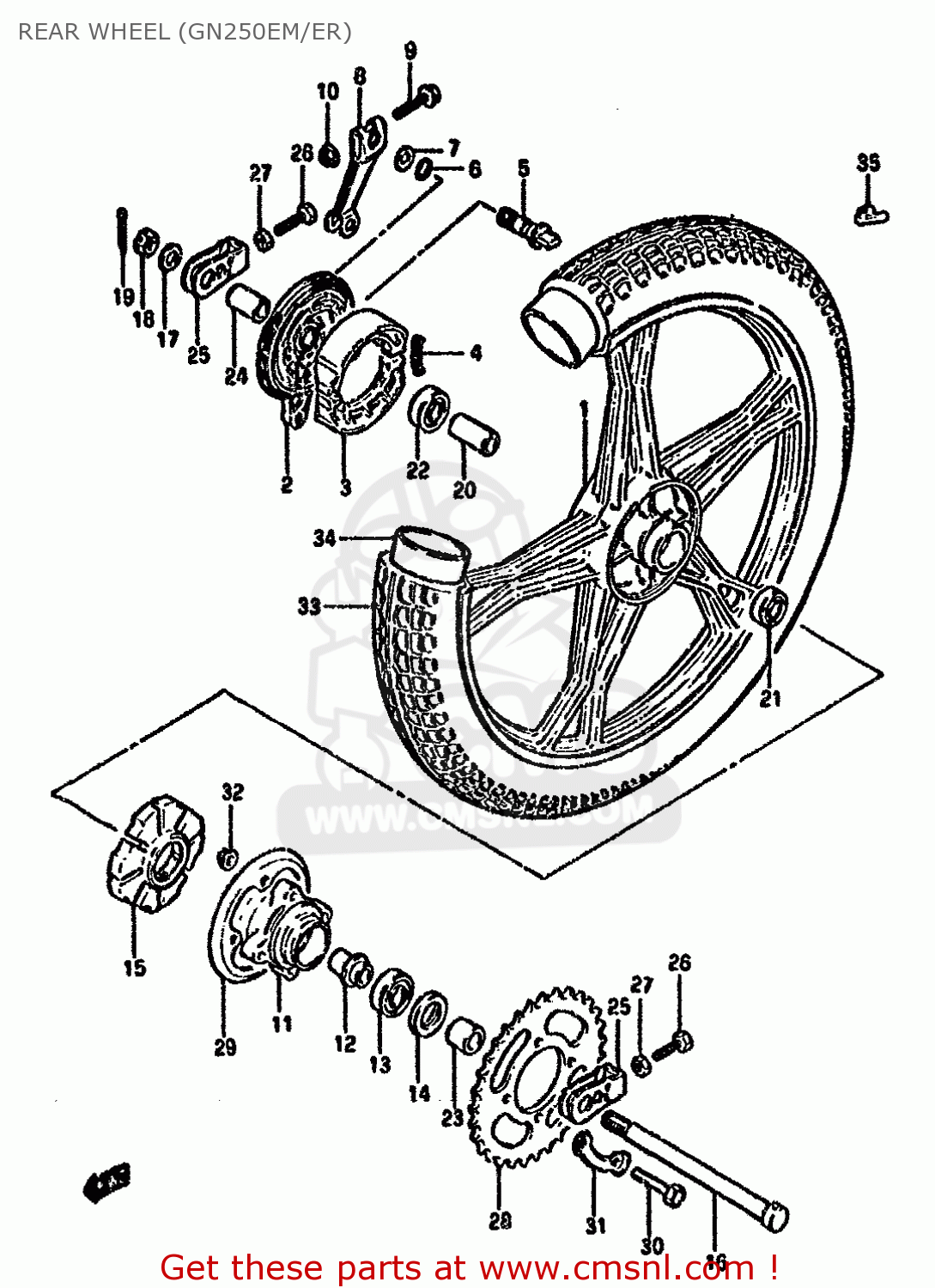

REAR WHEEL (GN250EM/ER)

ref

part #

description

quantity

1

6415038300291
ref: 1

WHEEL,RR(2.15X10)

€ 532.50

2

6421039104
ref: 2

PANEL,RR BRAKE ANCHOR

€ 165.50

3-1

5441007004
ref: 3-1
~F.NO.116044

SHOE,BRAKE

€ 35.00

3-2

5441007021
ref: 3-2
F.NO.116045~

SHOE,BRAKE

€ 32.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129304
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

0928014003
ref: 6

O-RING (D:2.4 ID:13.8)

€ 3.50

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

6445130501
ref: 8

LEVER,RR BRAKE CAM

€ 15.00

9

0151706408
ref: 9

BOLT

€ 2.50

10

0915906017
ref: 10

NUT

€ 2.50

11

6461038300
ref: 11

DRUM,RR SPROCKET MOUNTING

€ 116.50

12

6473338300
ref: 12

RETAINER,RR SPROCKET DRUM

€ 40.00

13

0926220069
ref: 13

BEARING(20X47X14)

€ 28.00

14

0928528001
ref: 14

SEAL,OIL(28X47X7)

€ 11.50

15

6465138300
ref: 15

ABSORBER,RR HUB SHOCK

€ 20.00

16

6471132101
ref: 16

AXLE,REAR

€ 62.50

17

0832211148
ref: 17

WASHER

€ 2.00

18

0914114001
ref: 18

NUT

€ 4.50

19

0411130308
ref: 19

COTTER PIN

€ 1.50

20

0918015011
ref: 20

SPACER(15.3X21.7X63)

€ 7.50

21

0814362027
ref: 21

BEARING

€ 12.50

22

0815363027
ref: 22

BEARING

€ 12.00

23

0918015061
ref: 23

SPACER(15X28X24.8)

€ 7.00

24

0918015060
ref: 24

SPACER(15X22X46.8)

€ 6.50

25

6141038301
ref: 25
-61410-38300

ADJUSTER,CHAIN

€ 71.50

26-1

0910408018
ref: 26-1
~F.NO.117838

BOLT 8X50

€ 3.00

26-2

0910408006
ref: 26-2
F.NO.117839~

BOLT

€ 3.00

27

0831012088
ref: 27

NUT

€ 2.00

28

6451138300
ref: 28

SPROCKET,REAR

€ 63.50

29

6461838300
ref: 29

GUIDE,RR SPROCKET CHAIN

€ 5.50

30-1

0910010096
ref: 30-1

BOLT 10X40

€ 2.50

30-2

0910310044
ref: 30-2

BOLT(10X40)

€ 3.00

31

0916910014
ref: 31
FOR 09100-10096

WASHER

€ 3.50

32

0831931107
ref: 32

NUT

€ 3.00

33-1

6510038310
ref: 33-1
-65100-38330

TIRE

€ 210.00

33-2

6510038330
ref: 33-2

TIRE,RR

€ 210.00

34

6520037320
ref: 34

TUBE ASSY,WHEEL,INNER 4.60-16

€ 31.50

35-1

5541100A00
ref: 35-1

BALANCER,WHEEL (10G)

€ 6.50

35-2

5541200A00
ref: 35-2

BALANCER,WHEEL

€ 7.00

35-3

5541300A00
ref: 35-3

BALANCER,WHEEL

€ 4.00

33

0910310044
ref: 33
MODEL P/R

BOLT(10X40)

€ 3.00

34

0831931107
ref: 34

NUT

€ 3.00

35-1

6510038370
ref: 35-1
E22

TIRE 120/90-16

€ 0.00

35-2

6510038310
ref: 35-2
E2,E4,E24,E25,E34,E3

TIRE

€ 210.00

35-3

6510038330
ref: 35-3
E2,E4,E24,E25,E34,E3

TIRE,RR

€ 210.00

36

6520037320
ref: 36

TUBE ASSY,WHEEL,INNER 4.60-16

€ 31.50

37

6526137320
ref: 37

PROTECTOR,WHL INR TUBE

€ 2.00

38

6531138300
ref: 38

RIM,RR WHEEL(215X16)

€ 160.50

39

6532005300
ref: 39

SPOKE SET,REAR WHEEL

€ 37.00

40-1

5541111000
ref: 40-1

BALANCER,WHEEL (B)

€ 4.50

40-2

5541211000
ref: 40-2

BALANCER,WHEEL (30G)

€ 8.00

all assemblies
