GEAR SHIFTING

GN250 1994 (R) (E02 E04 E22 E24 E25 E34 E39 E53)

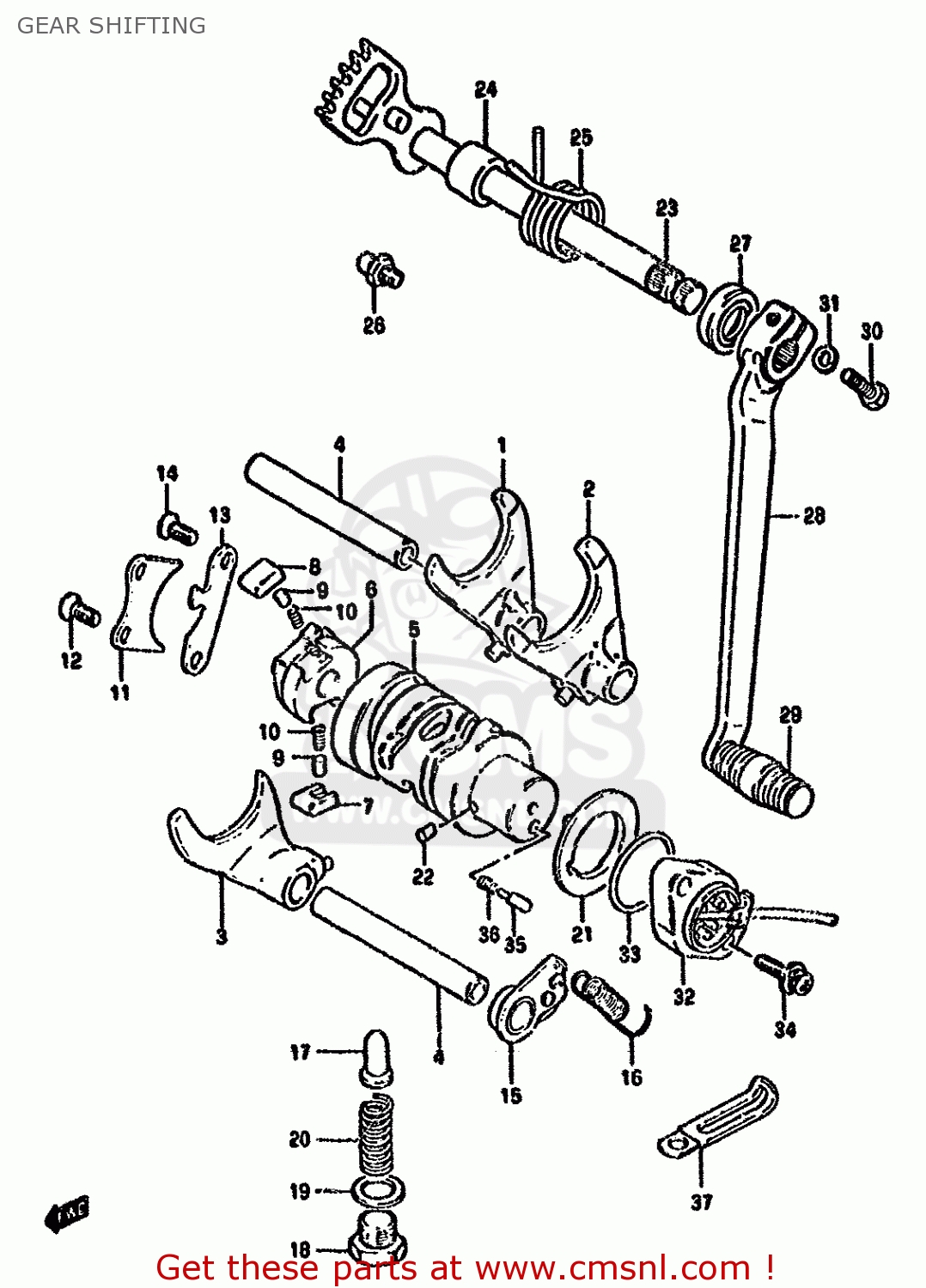

Gear shifting diagram GN250 1994 (R) (E02 E04 E22 E24 E25 E34 E39 E53)

GEAR SHIFTING GN250 1994 (R) (E02 E04 E22 E24 E25 E34 E39 E53)
GEAR SHIFTING GN250 1994 (R) (E02 E04 E22 E24 E25 E34 E39 E53)
GEAR SHIFTING GN250 1994 (R) (E02 E04 E22 E24 E25 E34 E39 E53)
prices are in EUR
ref
part #
description
quantity
1
2521132401
ref: 1
FORK,GEAR SHIFT NO.1
2521132401
€ 71.50
2
2522132402
ref: 2
FORK,GEAR SHIFT NO.1
€ 71.50
3
2523132401
ref: 3
FORK,GEAR SHIFT NO.3
€ 71.50
4
2541114330
ref: 4
SHAFT,GEAR SHIFT FORK
2541114330
€ 14.00
5
2531038200
ref: 5
CAM,GEAR SHIFT
2531038200
€ 103.00
6
2532231301
ref: 6
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
0926105003
€ 1.50
10
0944004003
ref: 10
SPRING
0944004003
€ 1.50
11
2533138201
ref: 11
LIFTER,GEAR SHIFT POLE
2533138201
€ 4.50
12-1
0212206167
ref: 12-1
MODEL F/J/K/L/M/N/P
SCREW
0212206167
€ 2.00
12-2
0212206123
ref: 12-2
MODEL R
SCREW
0212206123
€ 3.00
13
2534138200
ref: 13
GUIDE,GEAR SHIFT CAM
€ 8.50
14-1
0212206127
ref: 14-1
MODEL F/J/K/L/M/N/P
SCREW
0212206127
€ 3.00
14-2
0212206123
ref: 14-2
MODEL R
SCREW
0212206123
€ 3.00
15
2535034000
ref: 15
STOPPER,GEAR SHIFT CAM
2535034000
€ 10.50
16
0944308026
ref: 16
SPRING
0944308026
€ 14.50
17
2535130010
ref: 17
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
18
0924714012
ref: 18
PLUG (14X12)
0924714012
€ 3.50
19
0916814004
ref: 19
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
20-1
0944011016
ref: 20-1
MODEL F/J/K/L/M/N/P
SPRING
0944011016
€ 7.50
20-2
0944011026
ref: 20-2
MODEL R
SPRING
0944011026
€ 7.50
21
2538145400
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
2538145400
€ 10.50
22
0621104063
ref: 22
PIN 4X6
0621104063
€ 2.00
23
2551038200
ref: 23
SHAFT,GEAR SHIFT
2551038200
€ 83.50
24
0918012068
ref: 24
SPACER(12X20X15.3)
0918012068
€ 3.00
25
0944426004
ref: 25
SPRING
0944426004
€ 4.00
26
2567101000
ref: 26
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
27
0928512002
ref: 27
OIL SEAL
0928512002
€ 7.00
28
2560005330
ref: 28
LEVER ASSY,GEAR SHIFT
2560005330
€ 33.50
29
2565216500
ref: 29
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
30-1
0150006207
ref: 30-1
MODEL F/J/K/L/M/N/P
BOLT
0150006207
€ 2.00
30-2
0150006203
ref: 30-2
MODEL R
BOLT
0150006203
€ 2.00
31
0832102167
ref: 31
MODEL F/J
LOCK WASHER
€ 0.00
32-1
3772033200
ref: 32-1
MODEL F
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
3772033200
€ 92.50
32-2
3772044700
ref: 32-2
MODEL J/K/L/M/N/P/R
BASE ASSY,GEAR SHIFT TERMINAL
3772044700
€ 83.50
33
0928026003
ref: 33
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
34-1
0211275208
ref: 34-1
MODEL F/J/K/L/M/N/P
SCREW
€ 3.00
34-2
0211275203
ref: 34-2
MODEL R
SCREW
€ 3.00
35
0920905011
ref: 35
PIN(5X15.5)
0920905011
€ 2.00
36
0944004010
ref: 36
SPRING
0944004010
€ 1.50
37-1
0940406412
ref: 37-1
MODEL F/J
CLAMP
0940406412
€ 2.50
37-2
0940406402
ref: 37-2
MODEL K/L/M/N/P/R
CLAMP
€ 2.50
