MAGNETO

GN250 1994 (R) (E02 E04 E22 E24 E25 E34 E39 E53)

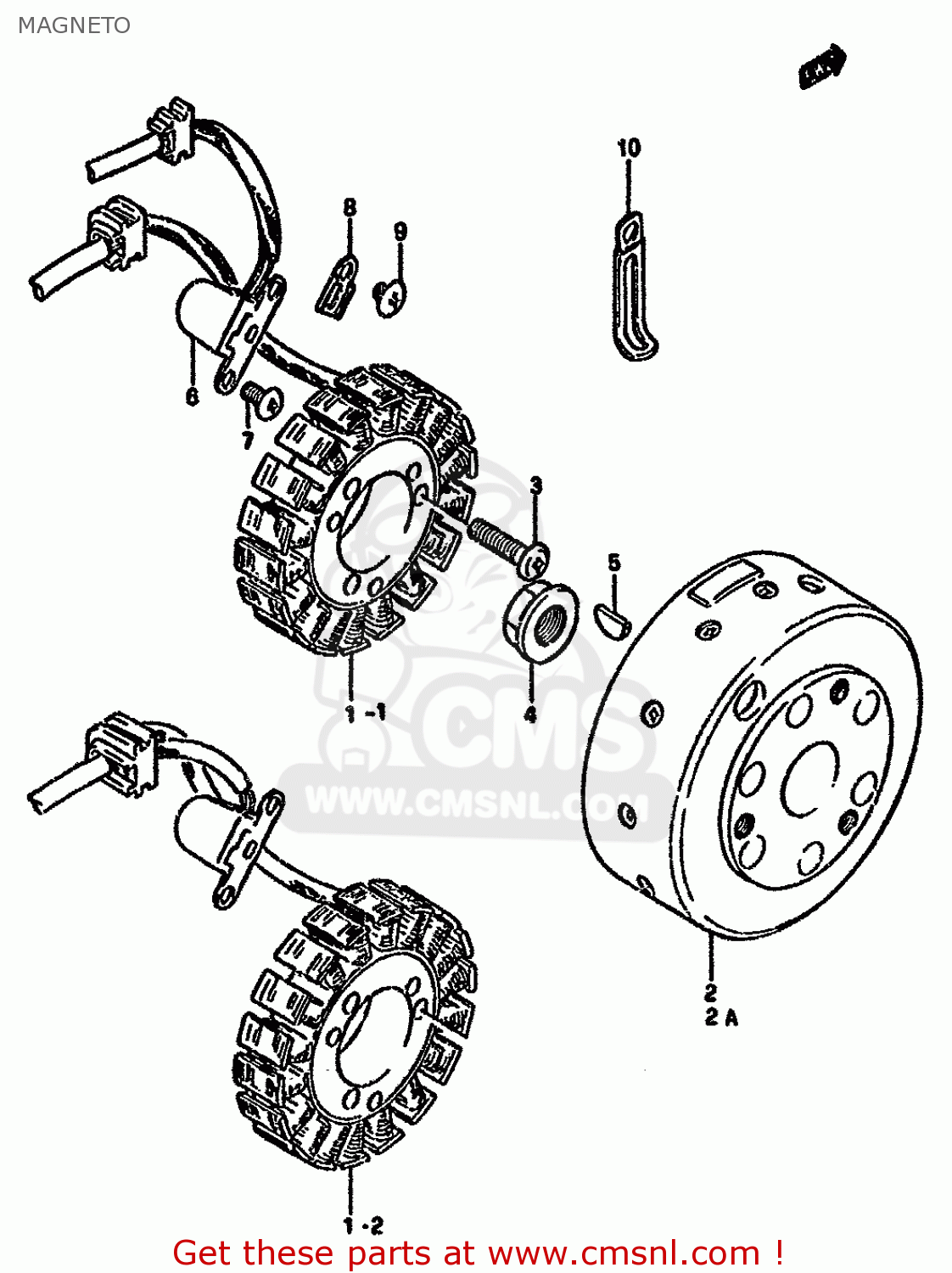

Magneto diagram GN250 1994 (R) (E02 E04 E22 E24 E25 E34 E39 E53)

prices are in EUR

ref

part #

description

quantity

1-1

3210138300
ref: 1-1
MODEL F/J/K/L/M/N/P

STATOR ASSEMBLY

€ 665.00

1-2

3210138302
ref: 1-2
MODEL R

STARTER ASSY

€ 665.00

3210238301
ref: 2
MODEL F/J/K/L/M/N/P

ROTOR

€ 309.00

3210238302
ref: 2A
MODEL R W/COIL PICK

ROTOR,FLYWHEEL

€ 309.00

3-1

0211206308
ref: 3-1
MODEL F/J/K/L/M/N/P

SCREW 6X30

€ 2.50

3-2

0211206253
ref: 3-2
MODEL R

SCREW

€ 1.50

3179249200
ref: 4

NUT,GENERATOR ROTOR

€ 10.00

0834131039
ref: 5

KEY

€ 2.00

3216037410
ref: 6
-MODEL F/J/K/L/M/N/P

COIL ASSY,PICK UP

€ 138.00

7-1

0211205108
ref: 7-1
MODEL F/J/K/L/M/N/P

SCREW

€ 2.00

7-2

0211205103
ref: 7-2
MODEL R

SCREW

€ 2.00

3149745000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 1.50

9-1

0214205067
ref: 9-1
MODEL F/J/K/L/M/N/P

SCREW 5X6

€ 2.50

9-2

0214235083
ref: 9-2
MODEL R

SCREW

€ 2.50

0940406401
ref: 10

CLAMP L:35

€ 2.50
