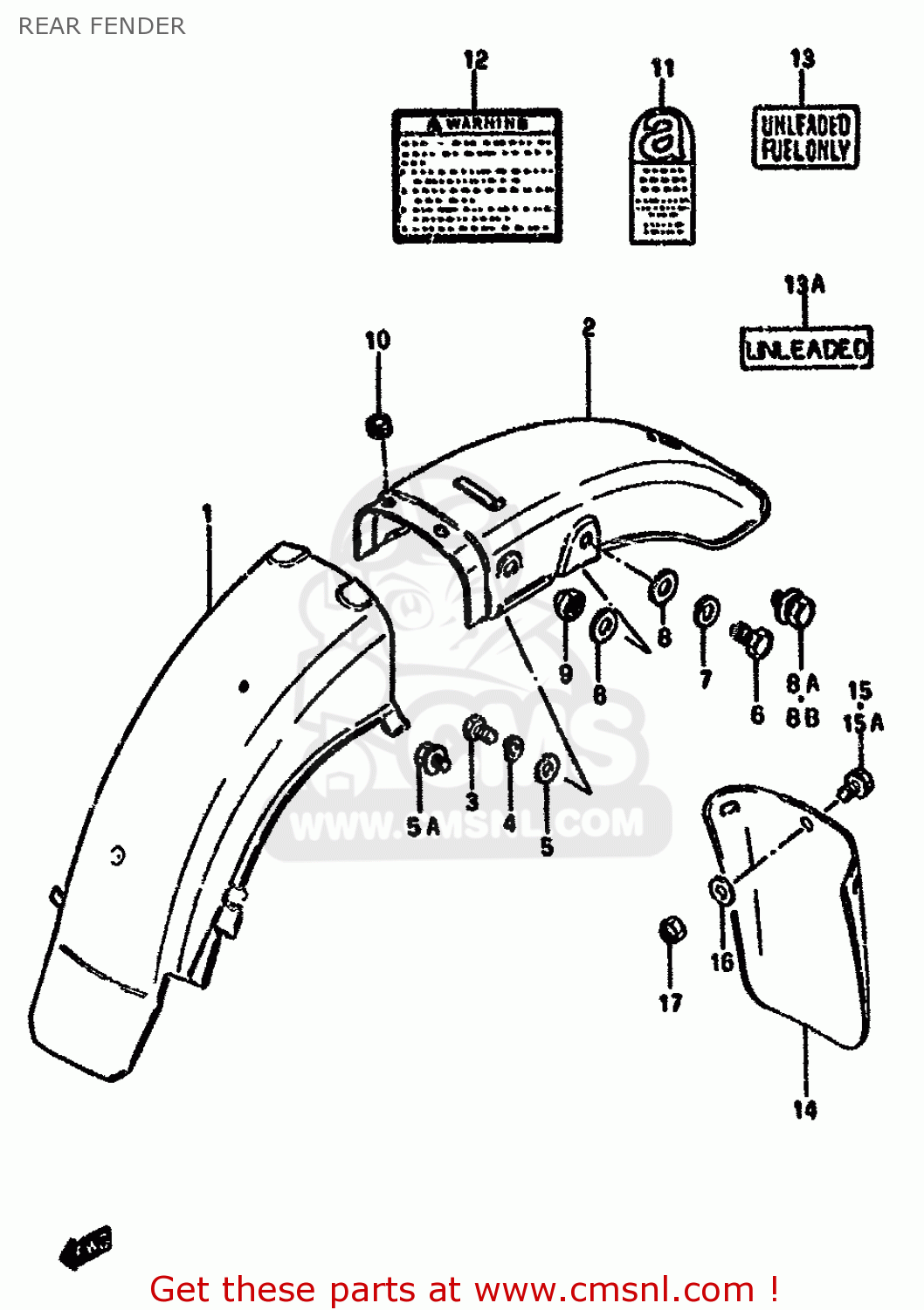

REAR FENDER

ref

part #

description

quantity

1

6311238302
ref: 1

BODY,FR

€ 33.50

2-1

6311038322
ref: 2-1
E22

FENDER, REAR

€ 250.50

2-2

6311038312
ref: 2-2
E1,E2,E4,E24,E25,E34

FENDER,REAR

€ 127.50

2-3

6311038331
ref: 2-3
MODEL M/R E39

FENDER,REAR

€ 142.50

3-1

0110706127
ref: 3-1
MODEL F/J/K/L/M

BOLT

€ 2.00

3-2

0117706128
ref: 3-2
MODEL N/P

BOLT

€ 1.50

4

0832121067
ref: 4
MODEL F/J/K/L/M

WASHER,LOCK

€ 2.50

5

0832201067
ref: 5
MODEL F/J/K/L/M

WASHER

€ 2.00

5A

0158006163
ref: 5A
MODEL R

BOLT

€ 2.50

6-1

0110708207
ref: 6-1
MODEL F/J/K/L/M/N/P

BOLT

€ 3.00

6-2

0110708167
ref: 6-2
MODEL F/J/K/L/M/N/P

BOLT,8X16

€ 2.00

7

0832121088
ref: 7
MODEL F/J/K/L/M/N/P

LOCK WASHER

€ 2.00

8-1

0832201087
ref: 8-1
MODEL F/J/K/L/M/N/P

WASHER

€ 2.00

8-2

0832201083
ref: 8-2
MODEL R

WASHER

€ 1.50

8A

0158008203
ref: 8A
MODEL R

BOLT

€ 3.50

8B

0158008163
ref: 8B
MODEL R E22,E25

BOLT

€ 3.00

9-1

0831311087
ref: 9-1
MODEL F/J

NUT

€ 2.50

9-2

0831012088
ref: 9-2
MODEL K/L/M/N/P

NUT

€ 2.00

10

0932005006
ref: 10

CUSHION

€ 4.00

11

1196782000
ref: 11
E2

LABEL,ASBESTOS WARNING

€ 2.00

12-1

6831940C00
ref: 12-1
E1,E2,E24,E25

LABEL

€ 8.00

12-2

6831940C20
ref: 12-2
E22,E39

LABEL, WARNING SAFETY

€ 8.00

12-3

6831940C51
ref: 12-3
E53

LABEL

€ 8.00

12-4

6831940C40
ref: 12-4
E34

LABEL, WARNING SAFETY

€ 8.00

12-5

6831940C30
ref: 12-5
E4

LABEL, WARNING SAFETY

€ 8.50

13

8693273060
ref: 13
E24

LABEL,FUEL CAUTION

€ 4.00

13A

6862317000
ref: 13A
E2

LABEL, CAUTION FUEL

€ 0.00

14

6333133601
ref: 14
MODEL M E39

FLAP,RR FENDER MUD

€ 21.50

15

0151706168
ref: 15
MODEL M E39

BOLT

€ 1.50

15A

0155006163
ref: 15A
MODEL R

BOLT

€ 2.50

16

0916006006
ref: 16
MODEL M/R E39

WASHER

€ 2.00

17

0831921068
ref: 17
MODEL M/R E39

NUT 6MM

€ 2.00

all assemblies
