CRANK BALANCER

GN250E 1991 (M) GENERAL (E01)

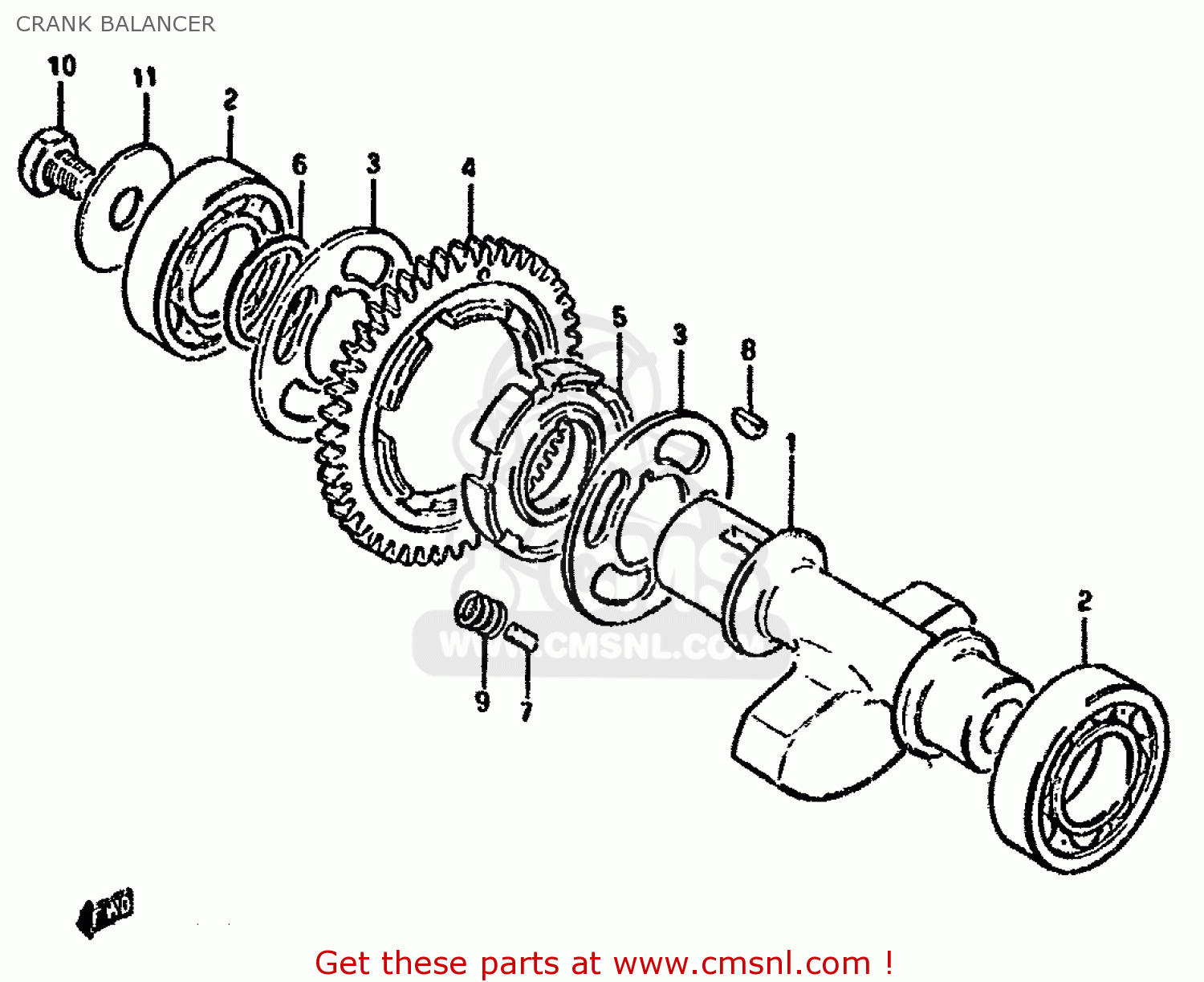

Crank balancer diagram GN250E 1991 (M) GENERAL (E01)

prices are in EUR

ref

part #

description

quantity

1265138202
ref: 1

SHAFT,CRANK BALANCER

€ 101.50

0926225084
ref: 2

BEARING(25X62X17)

€ 29.00

1266338200
ref: 3

WASHER

€ 6.00

1266638200
ref: 4

GEAR,CRANK BAL DRIVEN(NT:46)

€ 128.00

1266938200
ref: 5

RACE,CRK BAL DRIVEN GR INNER

€ 37.00

0822125365
ref: 6

SHIM

€ 4.50

0920204013
ref: 7

PIN

€ 3.00

0834131049
ref: 8

KEY 4MM

€ 3.50

0944009015
ref: 9

SPRING

€ 25.50

10-1

0110712168
ref: 10-1
MODEL F/J/K/L/M/N/P

BOLT ,12X16

€ 3.50

10-2

0150012163
ref: 10-2
MODEL R

Bolt

€ 3.50

0916012076
ref: 11

WASHER(12X40X2.5)

€ 5.50
